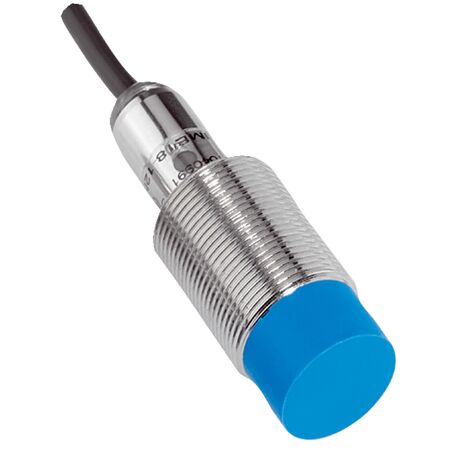

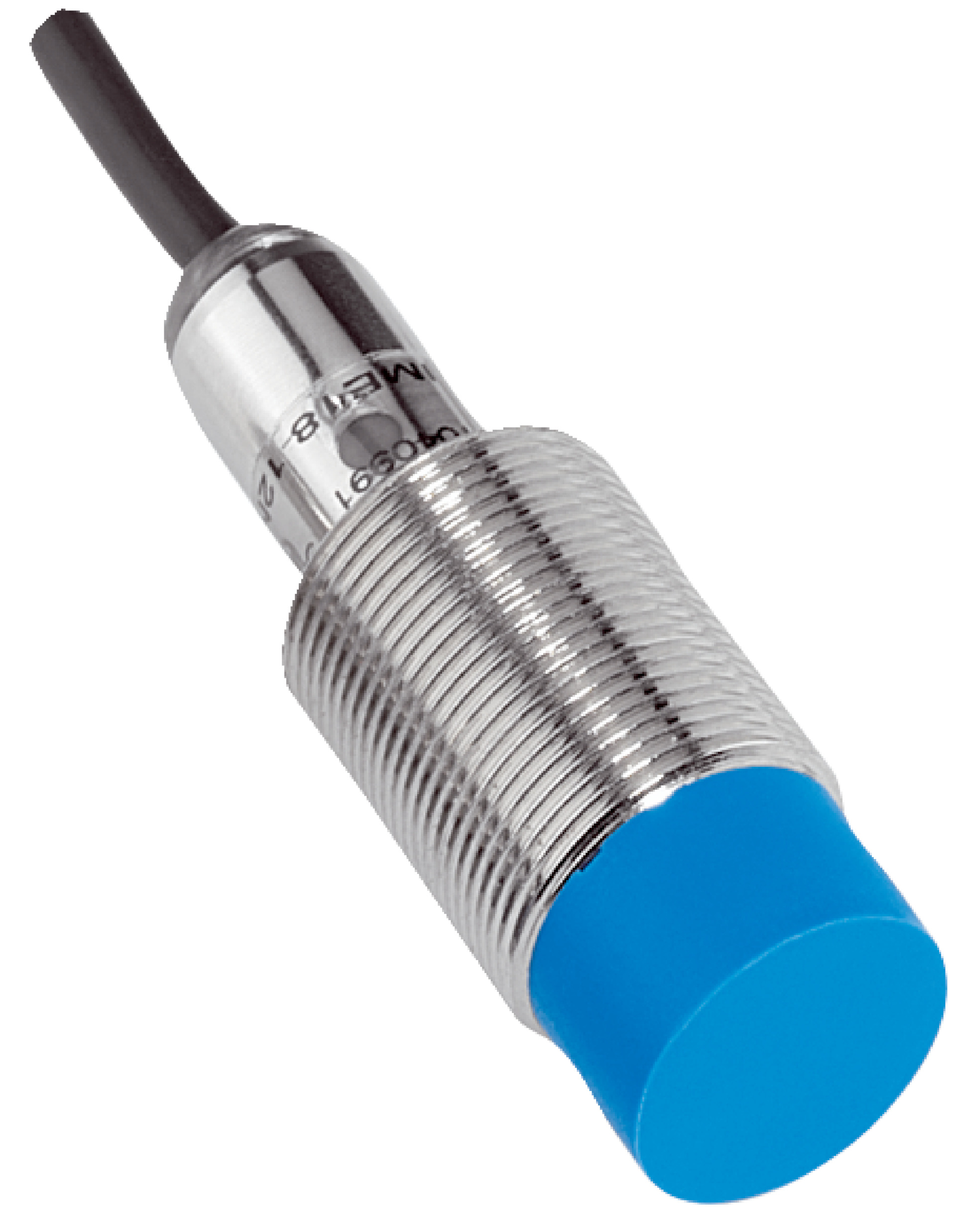

Inductive Proximity Sensor M18 | Short-Body Brass Housing | 12mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation. With a sensing range of 12 mm and a high switching frequency of 1,000 Hz, this sensor is perfect for machine safety and control systems. Its durable brass housing and IP67 rating ensure protection against dust and water, making it ideal for various manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | Short-Body Brass Housing | 12mm Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1040983
Alternatively Known As: Inductive Proximity Sensor M18, PNP Proximity Sensor, Non-flush Inductive Sensor
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M18 x 1
- Sensing range Sn: 12 mm
- Safe sensing range Sa: 9.72 mm
- Installation type: Non-flush
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC
- Conductor size: 0.25 mm²
- Cable diameter: Ø 3.9 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 48 mm
- Thread length: 23 mm
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 48mm x 48mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Non-flush installation type
- Sensing range of 12 mm with safe sensing range of 9.72 mm
- High switching frequency of 1,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Wide operating temperature range from -25 °C to +75 °C
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-12NPSZW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
