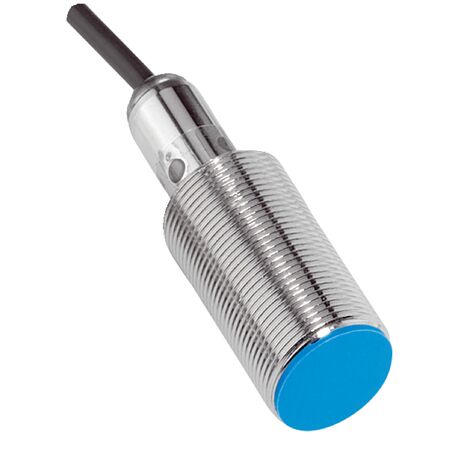

Inductive Proximity Sensor M18 | Short-body Brass | 8mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor M18 is designed for precise object detection in industrial automation, featuring a short-body brass housing and an 8mm sensing range. With an IP67 rating for dust and water protection, this sensor is perfect for machine safety and control systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M18 | Short-body Brass | 8mm Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1040979
Alternatively Known As: M18 Inductive Proximity Sensor, Short-body Proximity Sensor, NPN Proximity Sensor, Flush Mount Inductive Sensor
Technical Specifications
- Housing: Short-body brass, nickel-plated
- Thread size: M18 x 1
- Diameter: 18 mm
- Sensing range Sn: 8 mm
- Safe sensing range Sa: 6.48 mm
- Installation type: Flush
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m PVC
- Switching output: NPN, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable diameter: 3.9 mm
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Ambient operating temperature: -25 °C to +75 °C
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 48mm x 48mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Sensing range of 8 mm with safe sensing range of 6.48 mm
- Flush installation type for seamless integration
- Switching frequency up to 1,000 Hz
- NPN normally closed switching output
- Cable connection type with 3-wire, 2 m PVC cable
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistant up to 30 g
- Operating temperature range from -25 °C to +75 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Metal detection in manufacturing processes
- Position sensing in robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life minimizes environmental impact from disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-08BNOZW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring reliable metal object detection.
