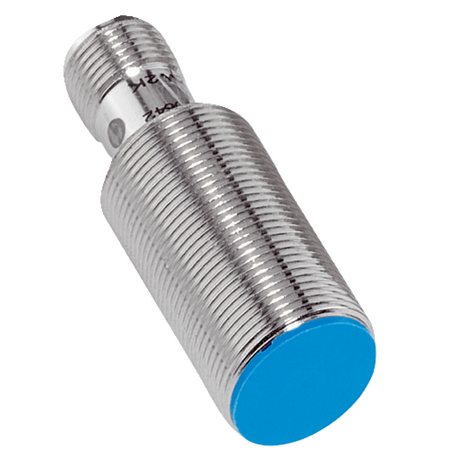

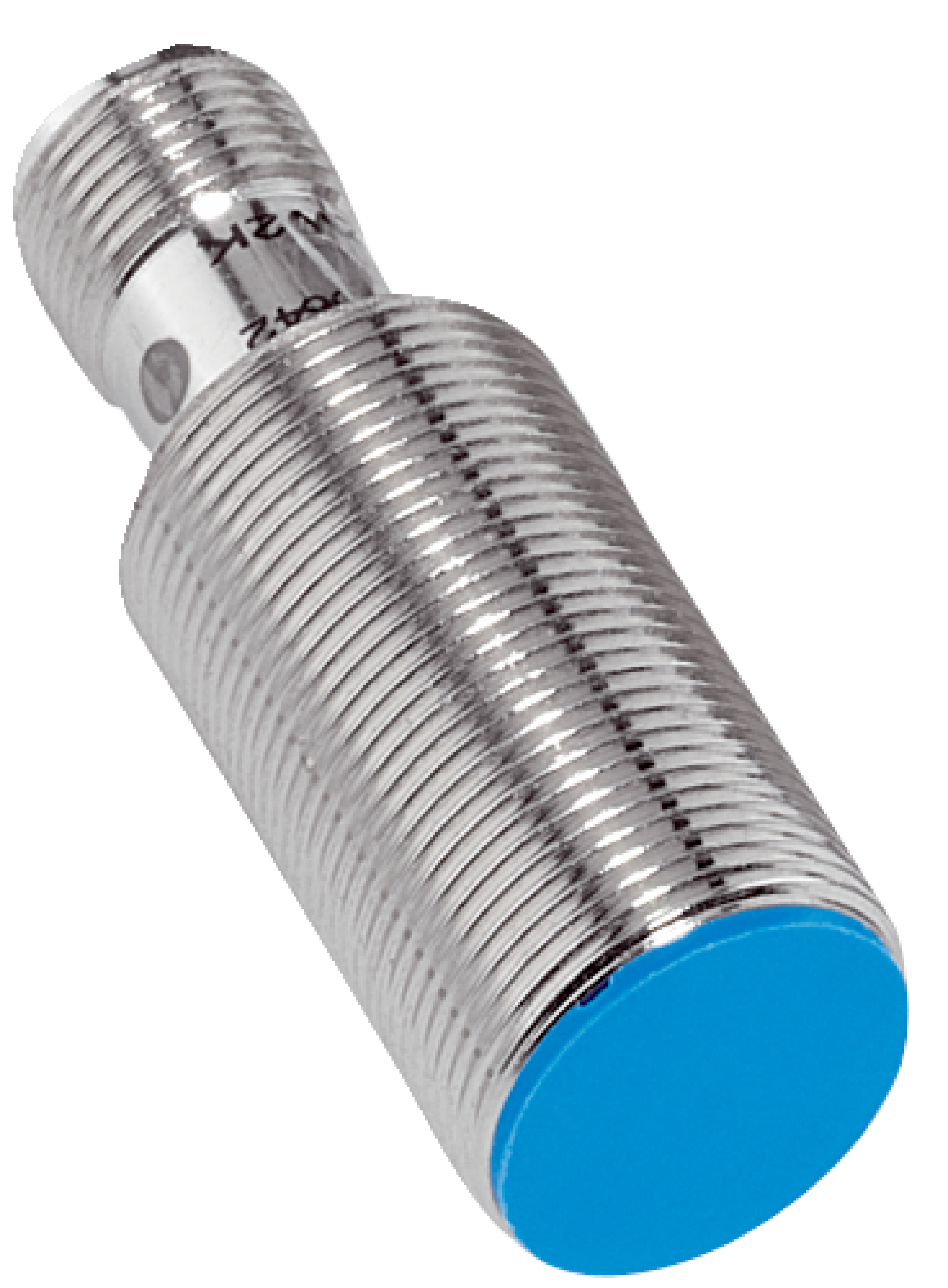

Inductive Proximity Sensor M18 | Short-Body Brass Housing | IP67 Rated | 5mm Sensing Range | by SICK
The Inductive Proximity Sensor M18 is designed for precision in industrial automation, featuring a short-body brass housing and a sensing range of 5 mm. With an IP67 rating for dust and water protection, this sensor is perfect for object detection and position sensing in manufacturing lines, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M18, IME18 Sensor, SICK Proximity Switch, M18 Inductive Sensor
Technical Specifications
- Housing: Short-body, brass nickel-plated
- Thread size: M18 x 1
- Diameter: 18 mm
- Sensing range Sn: 5 mm
- Safe sensing range Sa: 4.05 mm
- Installation type: Flush
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Sensing face material: Plastic, PA 66
- Tightening torque max: ≤ 40 Nm
- Dimensions (H x L x W): 50mm x 50mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Flush installation type
- Sensing range of 5 mm with safe sensing range of 4.05 mm
- Switching frequency up to 1,000 Hz
- NPN normally open (NO) switching output
- Connection via male M12, 4-pin connector
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME18-05BNSZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
