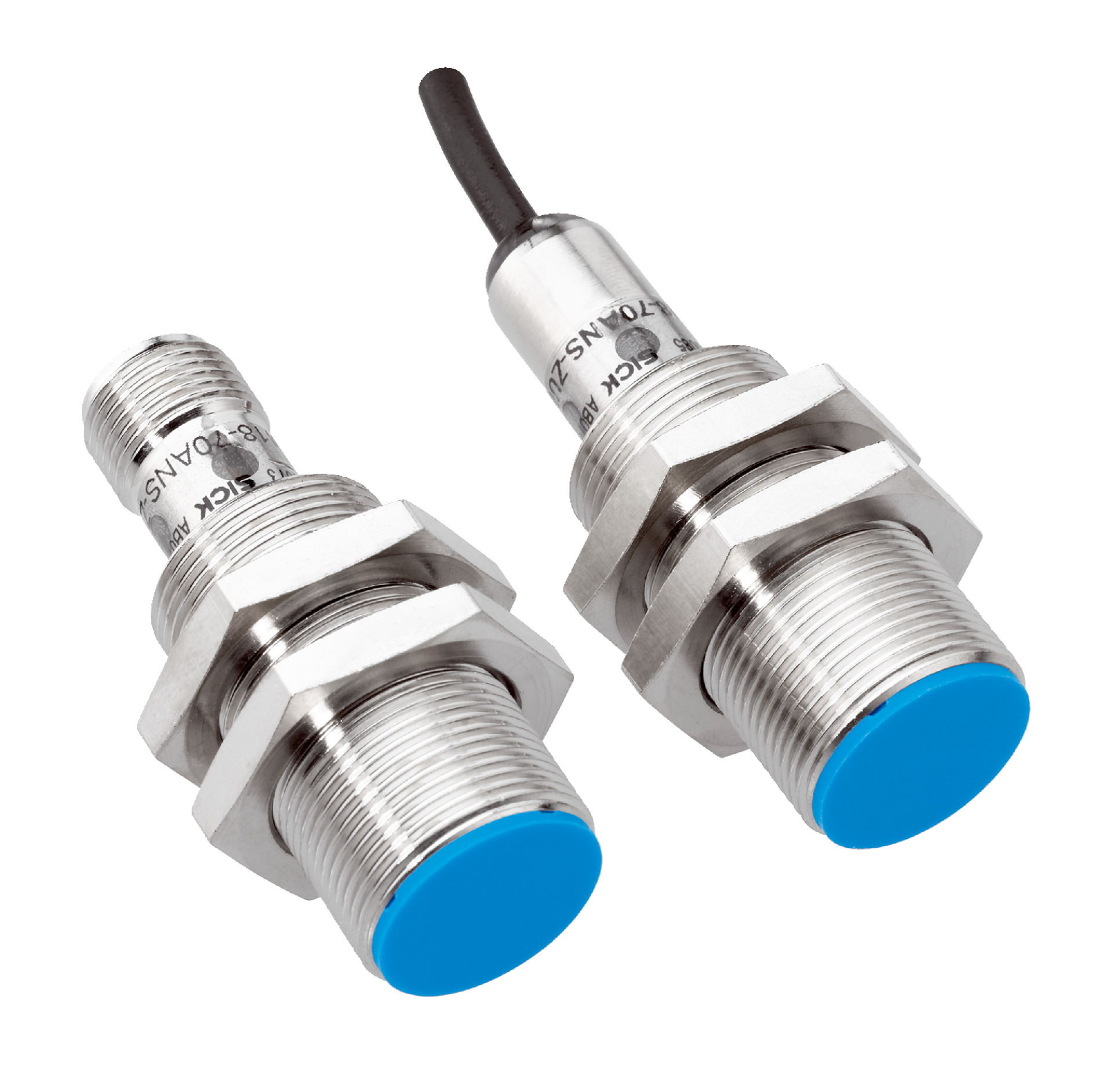

Inductive Proximity Sensor M18 | Short-Body Metal Housing | 5,000 Hz Switching Frequency | IP67 Rated | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a short-body metal housing and a sensing range from 5 mm to 120 mm. With a high switching frequency of 5,000 Hz and IP67 rating for dust and water protection, this sensor is perfect for position sensing in manufacturing lines and safety control systems, ensuring durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, metal nickel-plated brass
- Thread size: M18 x 1
- Diameter: 18 mm
- Sensing range Sn: 5 mm to 120 mm
- Safe sensing range Sa: 97.2 mm
- Magnetic sensitivity: 0.4 mT
- Switching frequency: 5,000 Hz
- Connection type: Cable, 3-wire, 2 m PUR cable
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Current consumption: 10 mA
- Time delay before availability: ≤ 100 ms
- Hysteresis: 10% to 20%
- Reproducibility: ≤ 1%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -40 °C to +75 °C
- Housing length: 58 mm
- Thread length: 42 mm
- Tightening torque max: ≤ 40 Nm
- Protection class: III
- Dimensions (H x L x W): 18mm x 58mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body metal housing with nickel-plated brass
- Sensing range from 5 mm to 120 mm
- High switching frequency of 5,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide ambient operating temperature range from -40 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper wiring and mounting according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems in machinery
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable metal housing extends product life reducing waste
- Energy-efficient operation minimizes power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MM18-00APS-ZUK inductive sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
