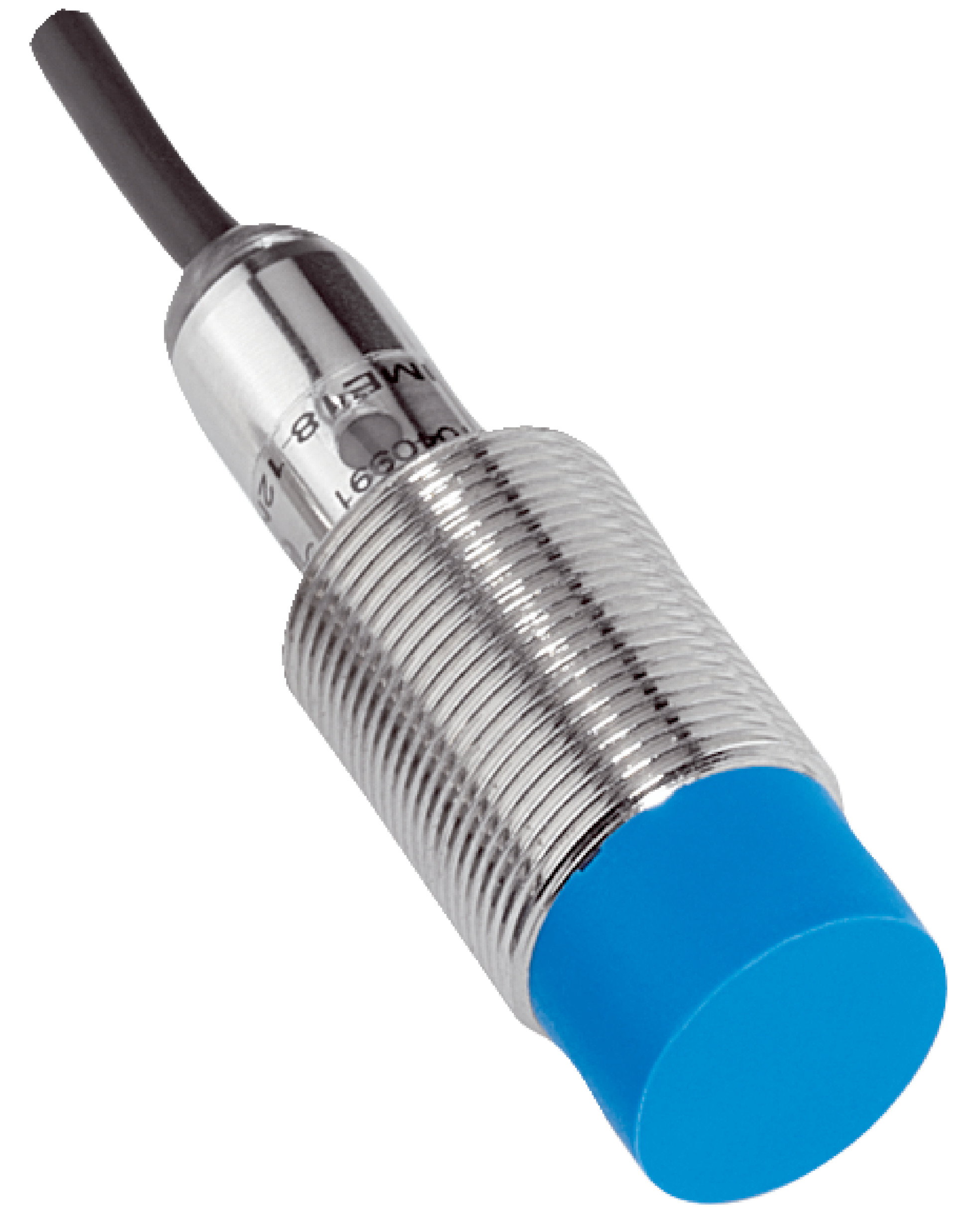

Inductive Proximity Sensor M18 | Short Body | NPN NO Output | IP67 Rated | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation, featuring a short body with a sensing range of 20 mm and an IP67 rated enclosure for dust and water protection. Ideal for manufacturing process control and conveyor systems, this sensor ensures high performance with a switching frequency of 200 Hz and robust brass housing for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Conductor size: 0.25 mm²
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Operating temperature: -25 °C to +75 °C
- Storage temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Housing length: 48 mm
- Thread length: 23 mm
- Max tightening torque: ≤ 30 Nm
- Dimensions (H x L x W): 18mm x 48mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Non-flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency of 200 Hz
- NPN normally open (NO) switching output
- Cable connection, 3-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Mounting nut included, brass nickel-plated
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Position sensing in machinery
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

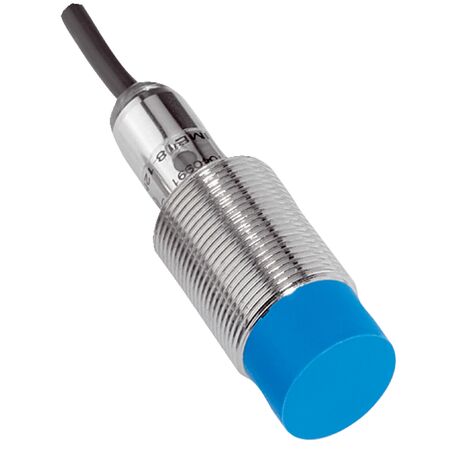

The SICK IME18-20NNSZW2K inductive sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
