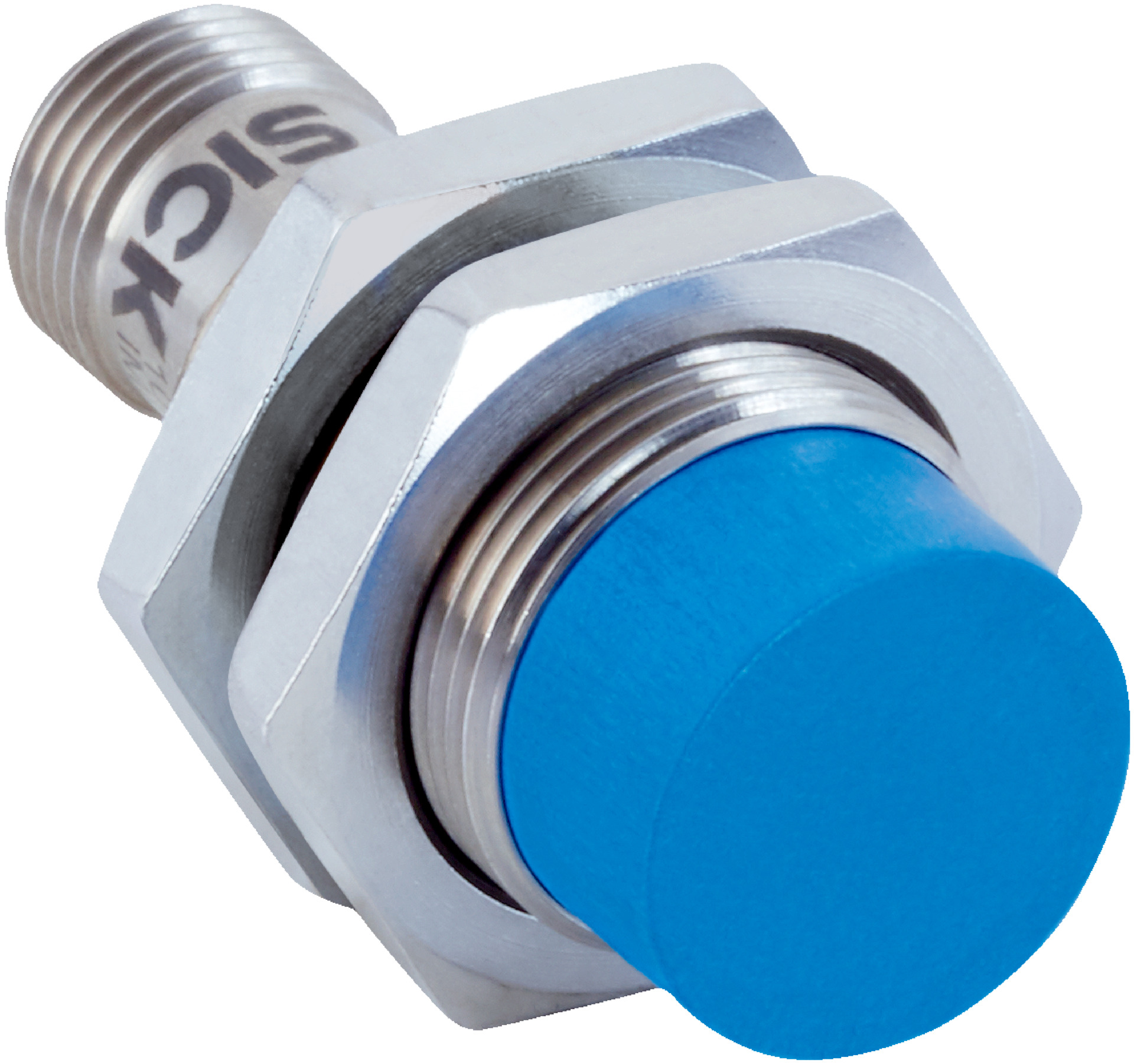

Inductive Proximity Sensor M18 | Short-Body Design | PNP Output | IP67/IP68/IP69K Rated | by SICK
The Inductive Proximity Sensor M18 is designed for reliable object detection in industrial automation. With a short-body housing and a sensing range of 12 mm, it operates effectively in harsh environments, including zones with coolants and lubricants. Featuring a high switching frequency of 1,000 Hz and robust construction, this sensor is perfect for mobile machines and applications requiring durability and precision.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 1,000 Hz
- Current consumption no load: ≤ 10 mA
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Shock resistance: 100 g, 2 ms sinusoidal; vibration resistance: 60 g peak
- EMC compliant according to EN 60947-5-2
- Protection class III
- LED yellow indicator for switching status
- Dimensions (H x L x W): 18mm x 49.4mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Non-flush installation type
- Sensing range of 12 mm with safe sensing range of 9.72 mm
- High switching frequency of 1,000 Hz
- PNP switching output with NC function
- Male connector M12, 4-pin connection
- Enclosure rating IP67, IP68, and IP69K for harsh environments
- Resistant against coolant lubricants and temperature resistant
- Shock and vibration resistant according to EN standards
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic sensing face
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting torque and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Mobile machines operating in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Resistant to harsh chemicals and temperature extremes, minimizing environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

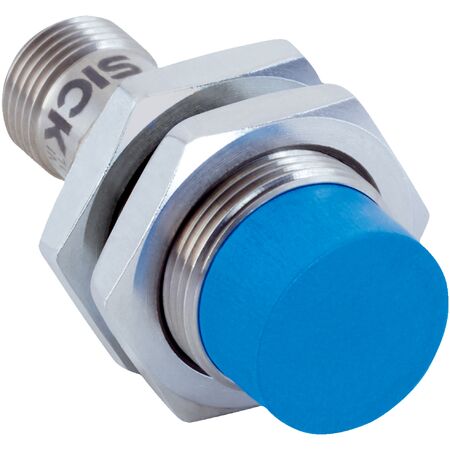

The SICK IMG18-12NPOZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
