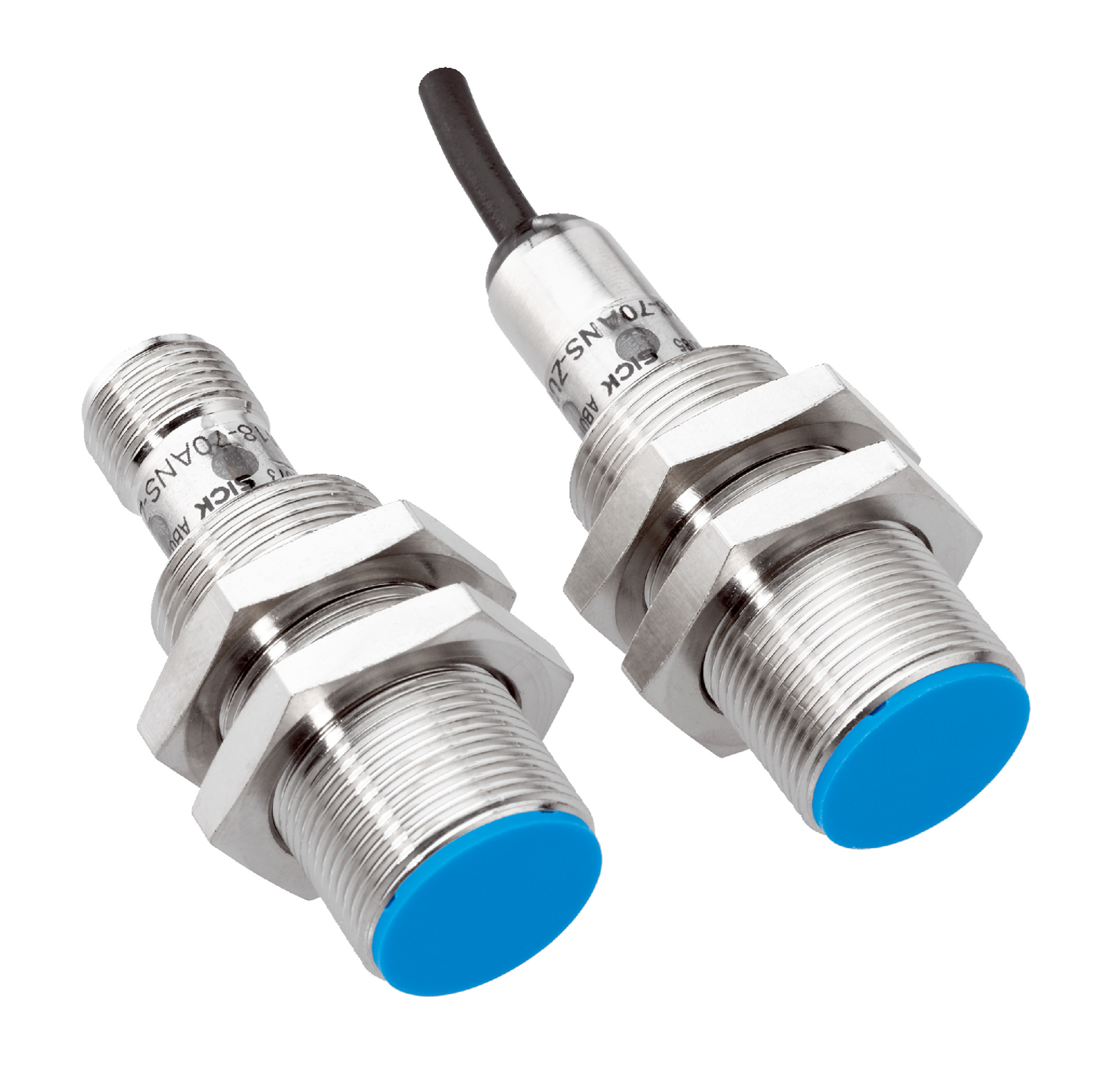

Inductive Proximity Sensor M18 | Short Body | PNP Output | IP67 Rated | by SICK
The Inductive Proximity Sensor M18 is designed for precise object detection in industrial automation, featuring a short-body metal housing and a sensing range from 5 mm to 120 mm. With a high switching frequency of 5,000 Hz and an IP67 rating for dust and water protection, this sensor is perfect for manufacturing lines and safety control systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, metal nickel-plated brass
- Thread size: M18 x 1
- Diameter: 18 mm
- Sensing range Sn: 5 mm to 120 mm
- Safe sensing range Sa: 97.2 mm
- Magnetic sensitivity: 0.4 mT
- Switching frequency: 5,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Current consumption: 10 mA
- Time delay before availability: ≤ 100 ms
- Hysteresis: 10% to 20%
- Reproducibility: ≤ 1%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -40 °C to +75 °C
- Housing length: 58 mm
- Thread length: 42 mm
- Tightening torque max: ≤ 40 Nm
- Protection class: III
- Dimensions (H x L x W): 18mm x 58mm x 18mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M18 x 1 thread size
- Sensing range from 5 mm to 120 mm
- High switching frequency of 5,000 Hz
- PNP switching output with NO function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Reverse polarity and short-circuit protection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation to ensure proper connection and safety compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable metal housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK MM18-00APS-ZCK inductive sensor is available for immediate purchase, ideal for industrial automation and control applications.
