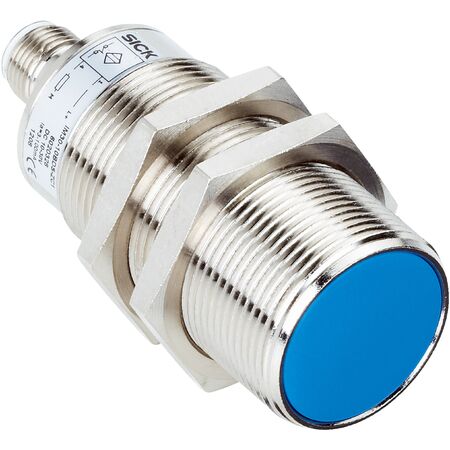

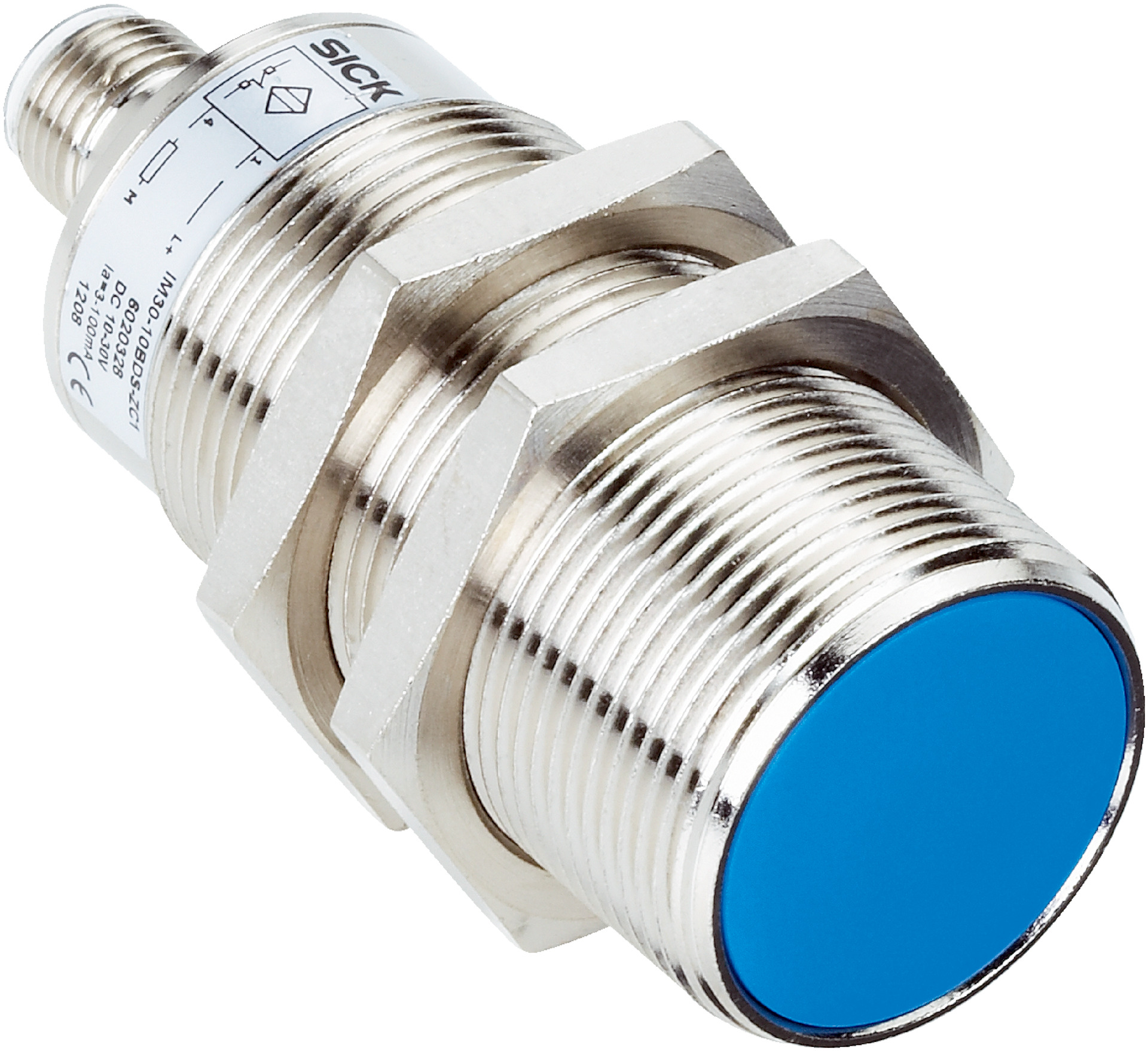

Inductive Proximity Sensor M30 | 10mm Sensing Range | IP67 Rated | Normally Closed Output | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation. With a sensing range of 10 mm and an IP67 rating for dust and water protection, this sensor is perfect for machine safety and control systems. Built for durability and efficiency, it operates within a wide temperature range of -25 °C to +70 °C, ensuring optimal performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Voltage drop: ≤ 6.5 V AC, ≤ 6 V DC
- Time delay before availability: ≤ 8 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 10%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 350 mA (varies by voltage)
- Off-state current: ≤ 2.5 mA (AC 250 V), ≤ 1.3 mA (AC 110 V), ≤ 0.8 mA (DC 24 V)
- Minimum load current: ≥ 5 mA
- Short-time withstand current: 2.2 A
- Cable material: PUR/PVC, conductor size 0.5 mm²
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Housing material: Brass, nickel-plated; sensing face: Plastic PBT
- Protection class: II
- Rated insulation voltage Ui: 250 V AC
- Rated impulse withstand voltage: 4 kV
- Contamination rating: 3
- Usage category: AC-140, DC-13
- Dimensions (H x L x W): 81mm x 81mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Switching frequency up to 50 Hz
- Cable connection, 2-wire, 2 m length
- Output function: Normally Closed (NC)
- Electrical wiring supports AC/DC 2-wire
- Enclosure rating IP67 for dust and water protection
- Mounting nuts included (brass, nickel-plated)
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
- Housing made of brass, nickel-plated with plastic PBT sensing face
- Rated insulation voltage 250 V AC and rated impulse withstand voltage 4 kV
- Protection class II with short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance with electrical codes.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Manufacturing process monitoring
- Conveyor and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IM30-10BUO-ZU0 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring reliable object detection.
