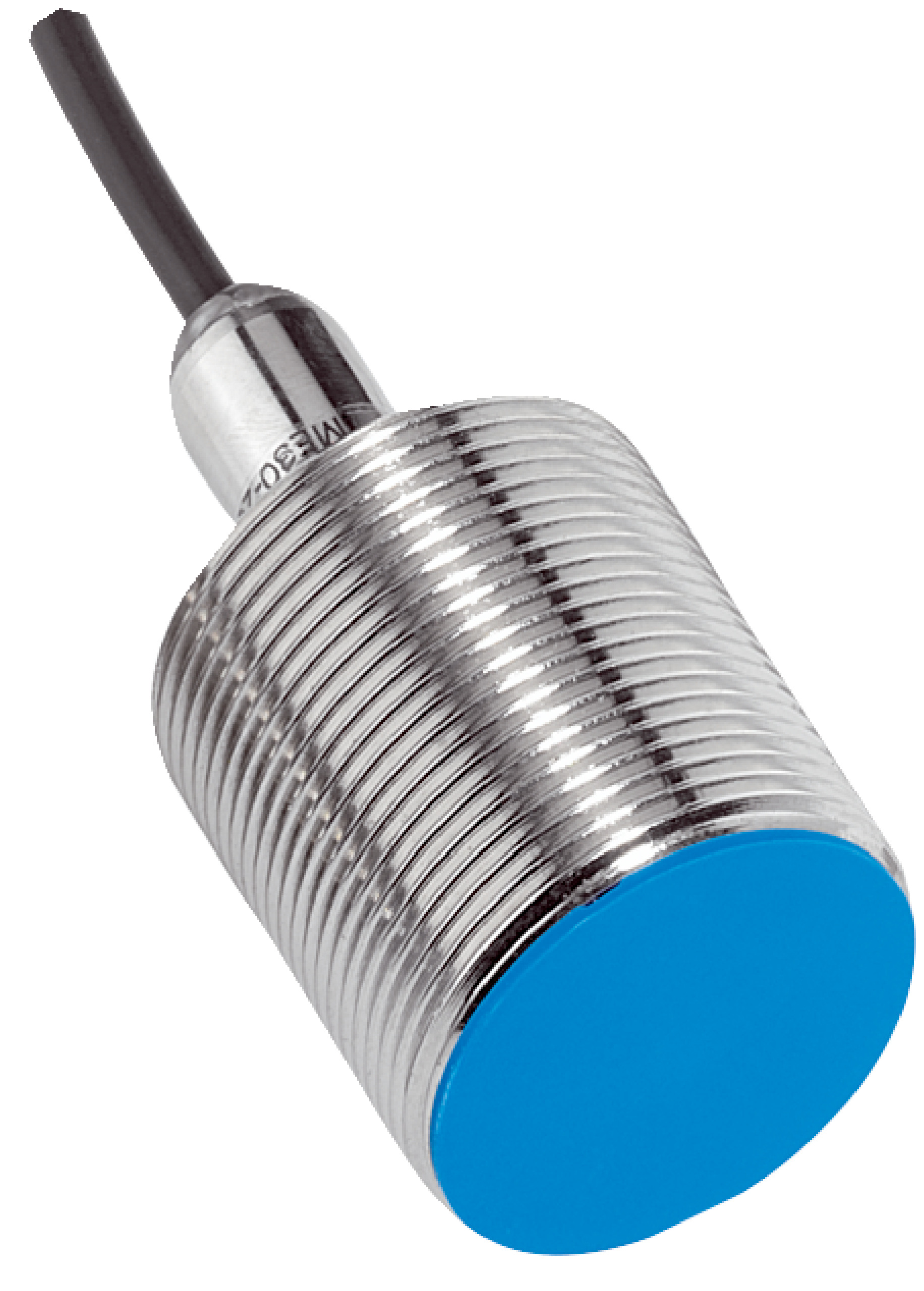

Inductive Proximity Sensor M30 | 15mm Sensing Range | IP67 Rated | 500Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a 15mm sensing range and a high switching frequency of 500Hz. With an IP67 rated enclosure, it offers excellent protection against dust and water, making it ideal for flush installations in manufacturing lines and automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP complementary
- Switching frequency: 500 Hz
- Sensing range (Sn): 15 mm
- Electrical wiring: DC 4-wire cable, 2 m length
- Voltage drop: ≤ 2 V
- Ripple: ≤ 10%
- No load current: ≤ 10 mA
- Continuous current Ia: ≤ 200 mA
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Cable diameter: Ø 3.9 mm
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Housing length: 51 mm
- Thread length: 35 mm
- Tightening torque max: ≤ 100 Nm
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 51mm x 51mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Flush installation type with sensing range of 15 mm
- High switching frequency of 500 Hz
- PNP complementary switching output
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide operating temperature range from -25 °C to +75 °C
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper flush installation and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Automation systems requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

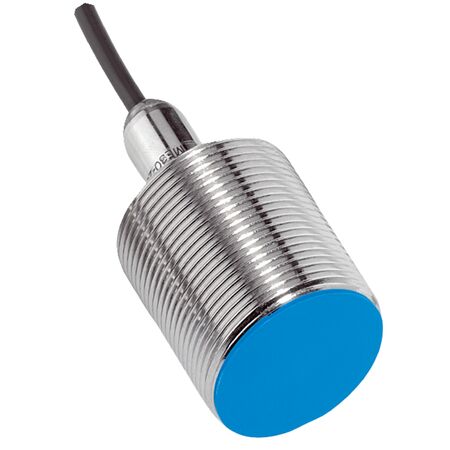

The SICK IME30-15BPPZW2K Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
