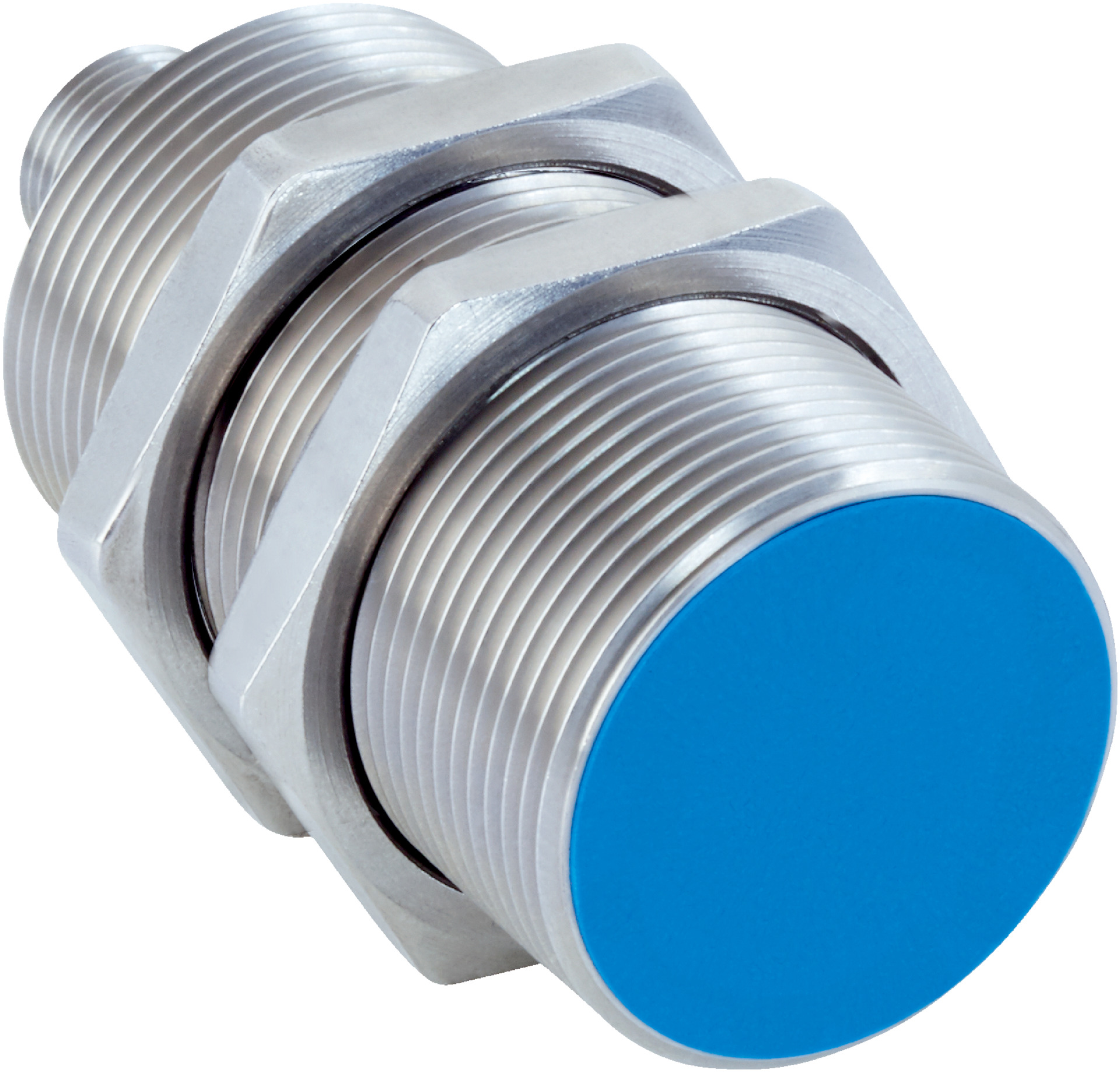

Inductive Proximity Sensor M30 | 15mm Sensing Range | IP67/IP68/IP69K Rated | NPN Output | by SICK
The Inductive Proximity Sensor M30 is designed for reliable detection of metal objects in industrial automation and mobile machinery applications. With a sensing range of 15mm and a robust IP67/IP68/IP69K protection rating, it withstands harsh environments, including exposure to coolant lubricants. Built for durability and efficiency, this sensor features a nickel-plated brass housing and is ideal for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching frequency: 500 Hz
- Switching output: NPN, Normally Open
- Electrical wiring: DC 3-wire
- No load current: ≤ 10 mA
- Continuous current Ia: ≤ 200 mA
- Protection class: III
- Enclosure rating: IP67, IP68, IP69K
- Operating temperature: -40 °C to +85 °C
- Housing material: Nickel-plated brass
- Sensing face material: Plastic (LCP)
- Shock resistance: 100 g, 2 ms sinusoidal
- Vibration resistance: 60 g peak (10 Hz to 2000 Hz)
- Short-circuit and power-up pulse protection included
- MTTFD: 1,820 years
- Mission time: 20 years
- Dimensions (H x L x W): 70.7mm x 70.7mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with nickel-plated brass material
- Flush installation type with M30 x 1.5 thread size
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Switching frequency up to 500 Hz with NPN normally open output
- Connection via male M12 4-pin connector
- High protection rating IP67, IP68, and IP69K
- Resistant against coolant lubricants and temperature extremes
- Shock and vibration resistant according to EN standards
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for detecting metal objects
- Mobile machines operating in harsh environments
- Zones with coolant lubricants and difficult application conditions
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

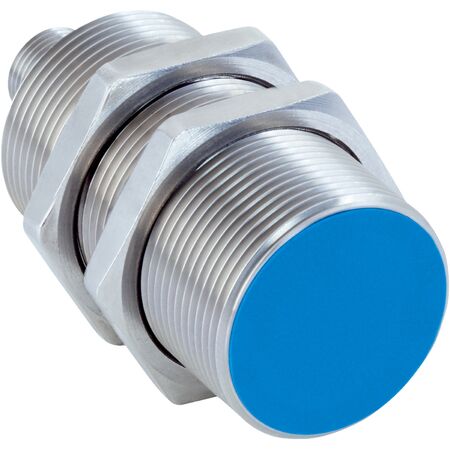

The SICK IMG30-15BNSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications.
