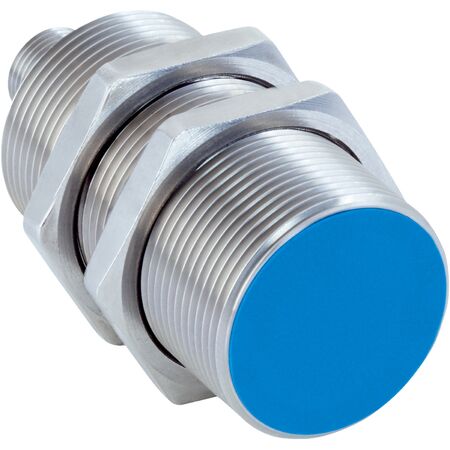

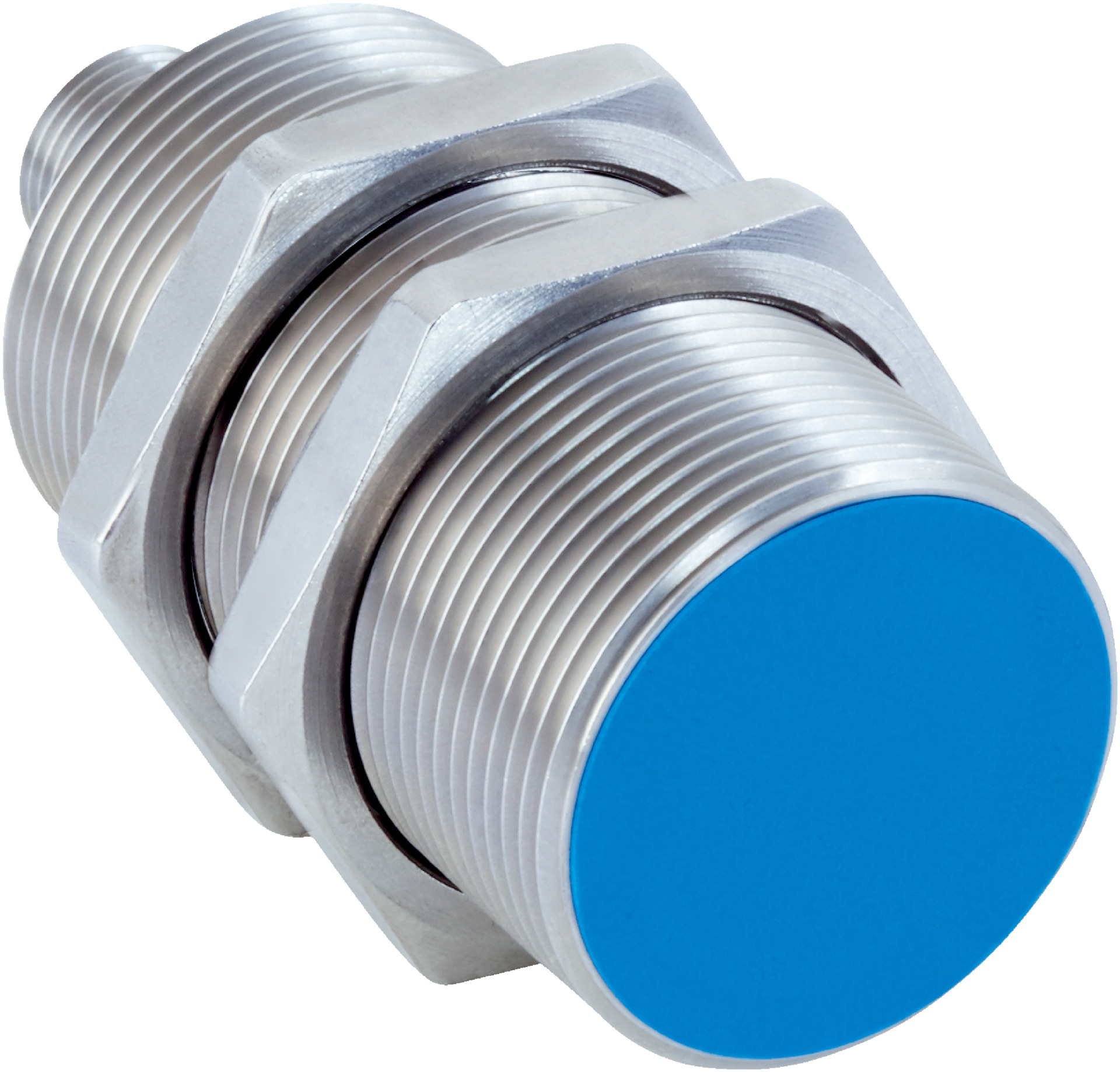

Inductive Proximity Sensor M30 | 15mm Sensing Range | IP67, IP68, IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a 15mm sensing range and a robust IP67, IP68, and IP69K protection rating. Built for harsh environments, this sensor withstands coolants and lubricants, ensuring durability and performance in challenging conditions. Ideal for mobile machines and applications requiring high reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching output: PNP, normally open
- Switching frequency: 500 Hz
- Current consumption no load: ≤ 10 mA
- Continuous current: ≤ 200 mA
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Protection class: III
- Enclosure rating: IP67, IP68, IP69K
- Housing material: Nickel-plated brass
- Sensing face material: Plastic, LCP
- Shock resistance: 100 g, 2 ms sinusoidal
- Vibration resistance: 60 g peak (10 Hz to 2000 Hz)
- Operating temperature: -40 °C to +85 °C
- Connection type: Male M12, 4-pin connector
- Dimensions (H x L x W): 70.7mm x 70.7mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with nickel-plated brass material
- Flush installation type with M30 x 1.5 thread size
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Switching frequency of 500 Hz with PNP normally open output
- Connection via male M12 4-pin connector
- High protection rating IP67, IP68, and IP69K
- Resistant against coolant lubricants and temperature extremes
- Shock and vibration resistant according to EN 60068 standards
- Short-circuit and power-up pulse protection included
- Operating temperature range from -40 °C to +85 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMG30-15BPSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
