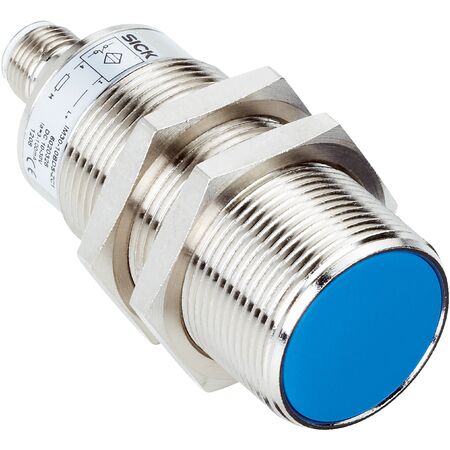

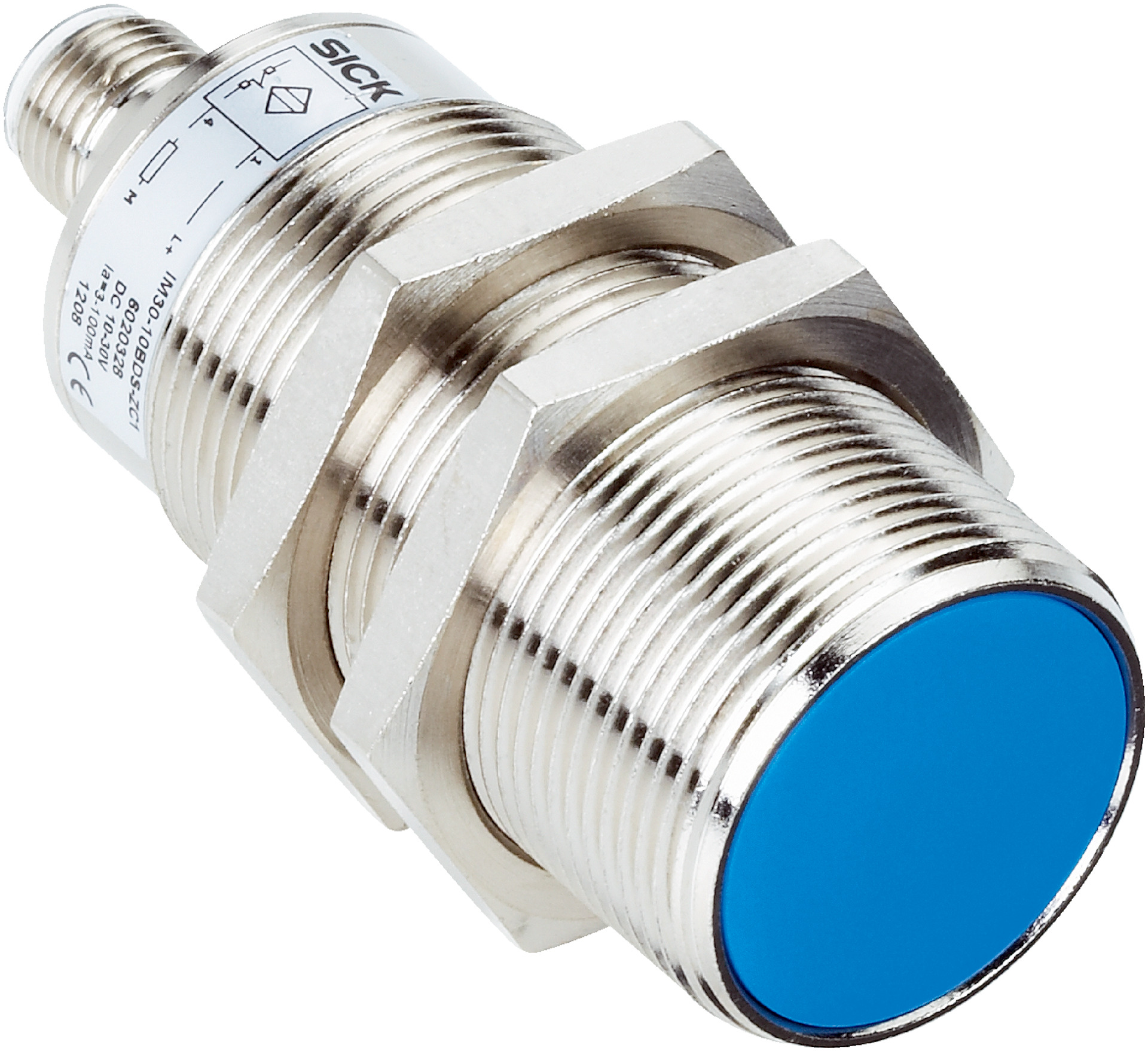

Inductive Proximity Sensor M30 | 15mm Sensing Range | IP67 Rated | Non-Flush Installation | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a 15mm sensing range and an IP67 rated enclosure for dust and water protection. With a high switching frequency of up to 30 Hz and a durable brass housing, this sensor is perfect for harsh environments, ensuring consistent performance and longevity in manufacturing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread size: M30 x 1.5
- Sensing range Sn: 15 mm
- Installation type: Non-flush
- Switching frequency: 25 Hz (standard), 30 Hz (max)
- Connection type: Cable, 2-wire, 2 m length
- Output function: Normally Open (NO)
- Electrical wiring: AC/DC 2-wire
- Enclosure rating: IP67
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Voltage drop: ≤ 6.5 V
- Time delay before availability: ≤ 8 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 10%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2 and EN 55011 class B
- Continuous current Ia: ≤ 200 mA
- Off-state current: ≤ 4 mA
- Minimum load current: ≥ 5 mA
- Short-time withstand current: 2.2 A
- Cable material: PVC
- Conductor size: 0.5 mm²
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +70 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PBT
- Housing length: 81 mm
- Thread length: 44 mm
- Tightening torque max: ≤ 50 Nm
- Protection class: II
- Rated insulation voltage Ui: 250 V AC
- Usage category: AC-140, DC-13
- Contamination rating: 3
- Rated impulse withstand voltage: 4 kV
- Dimensions (H x L x W): 81mm x 81mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Non-flush installation type with M30 x 1.5 thread size
- Sensing range of 15 mm with plastic PBT sensing face
- High switching frequency up to 30 Hz
- IP67 rated enclosure for dust and water protection
- Series connectable output function (Normally Open)
- Wide supply voltage range from 20 V AC/DC to 250 V AC/DC
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and safety standards to ensure proper sensor function and compliance with IP67 rating.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in harsh environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IM30-15NUS-ZUX inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring reliable object detection.
