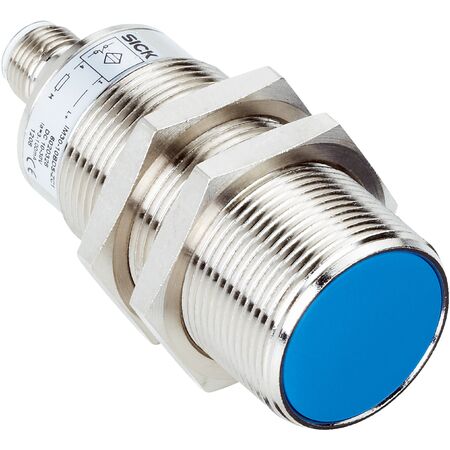

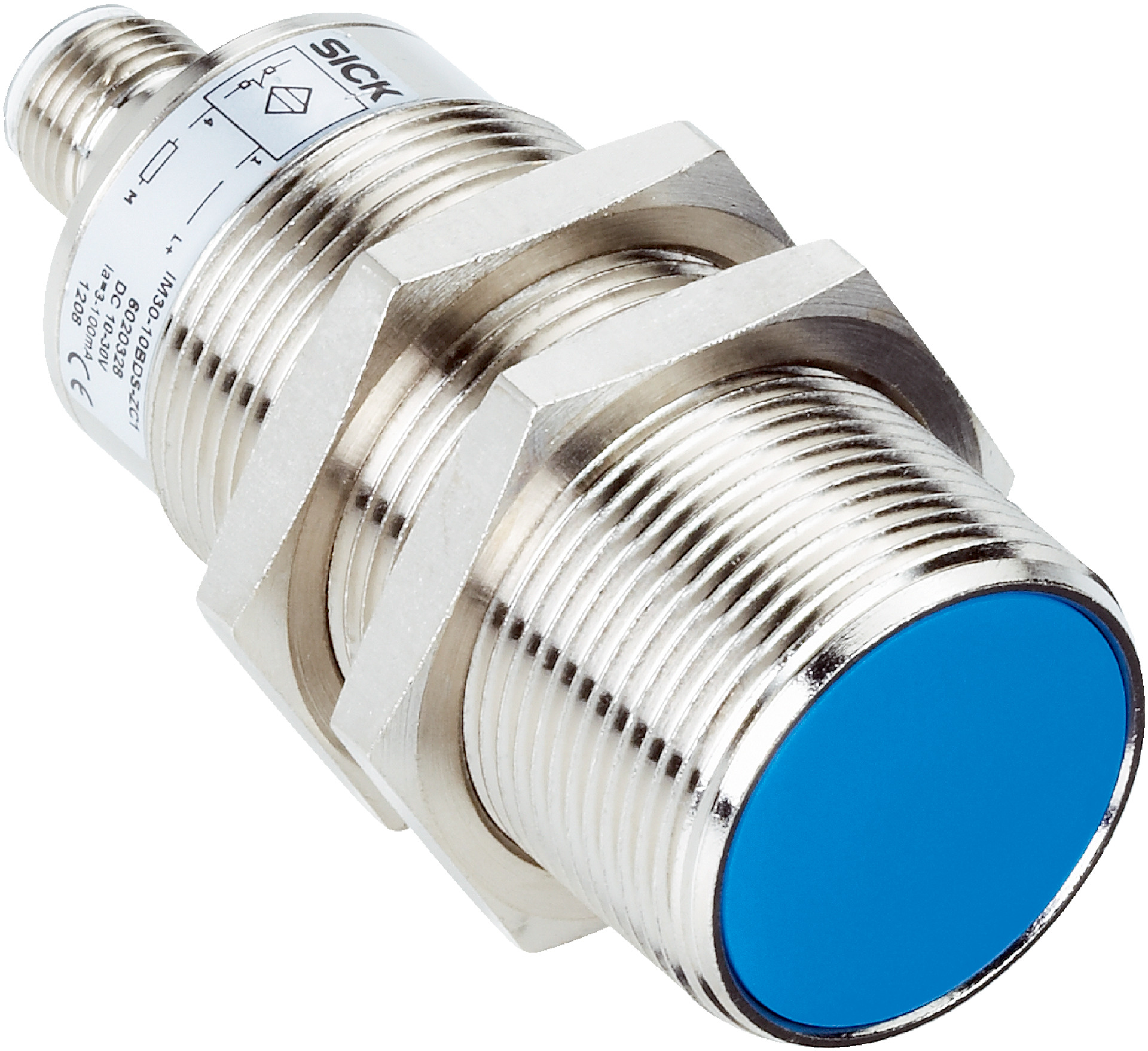

Inductive Proximity Sensor M30 | 15mm Sensing Range | IP67 Rated | Normally Open Output | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a 15mm sensing range and IP67 rating for dust and water protection. With a robust brass housing and a wide operating temperature range of -25 °C to +70 °C, this sensor is perfect for manufacturing process control and position sensing in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Voltage drop: ≤ 6.5 V AC, ≤ 6 V DC
- Time delay before availability: ≤ 8 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 10%
- Temperature drift of sensing range: ± 10%
- EMC compliance: EN 60947-5-2, EN 55011 class B
- Continuous current Ia: ≤ 350 mA (varies by voltage)
- Off-state current: ≤ 2.5 mA (AC 250 V), ≤ 1.3 mA (AC 110 V), ≤ 0.8 mA (DC 24 V)
- Minimum load current: ≥ 5 mA
- Short-time withstand current: 2.2 A
- Cable material: PUR/PVC, conductor size 0.5 mm²
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +70 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PBT
- Housing length: 81 mm
- Thread length: 44 mm
- Tightening torque max: ≤ 50 Nm
- Protection class: II
- Rated insulation voltage Ui: 250 V AC
- Usage category: AC-140
- Contamination rating: 3
- Rated impulse withstand voltage: 4 kV
- Dimensions (H x L x W): 81mm x 81mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M30 x 1.5 with non-flush installation type
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Switching frequency up to 50 Hz
- Cable connection, 2-wire, 2 m length
- Output function: Normally Open (NO)
- Electrical wiring supports AC/DC 2-wire
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Wide ambient operating temperature range from -25 °C to +70 °C
- Protection class II with rated insulation voltage of 250 V AC
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Position sensing in machinery
- Conveyor systems and robotics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IM30-15NUS-ZU0 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
