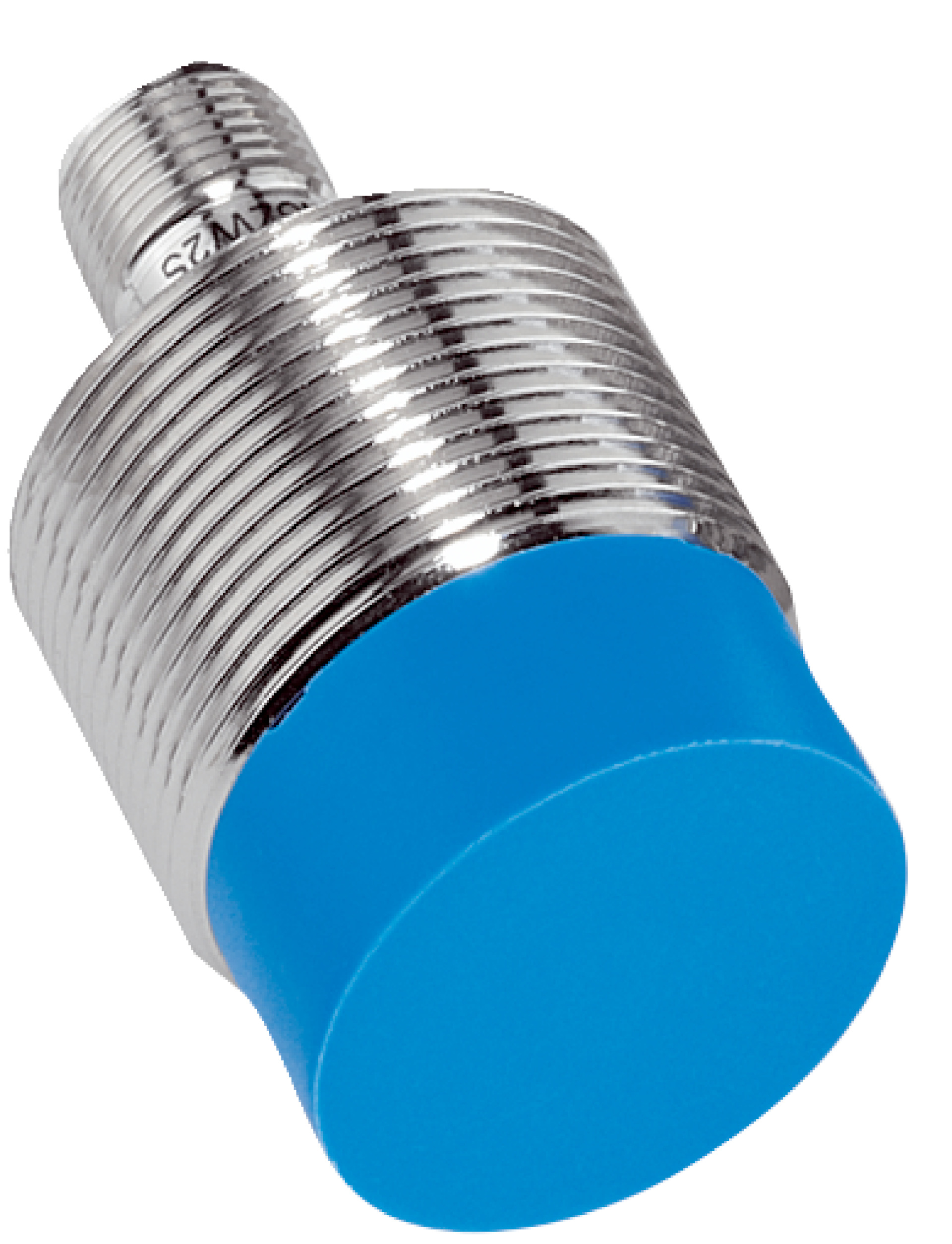

Inductive Proximity Sensor M30 | 15mm Sensing Range | IP67 Rated | PNP Normally Closed | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a 15mm sensing range and an IP67 rated enclosure for dust and water protection. Ideal for non-contact switching in harsh environments, this sensor ensures high performance with a switching frequency of up to 500 Hz and robust construction for long-lasting use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M30 | 15mm Sensing Range | IP67 Rated | PNP Normally Closed | by SICK
Brand: SICK
SKU: 1041017
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Proximity Switch, SICK M30 Sensor, PNP Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Operating temperature range: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Housing length: 52 mm
- Thread length: 22 mm
- Tightening torque max: ≤ 100 Nm
- Connection type: Male M12, 4-pin connector
- Switching output: PNP normally closed
- Dimensions (H x L x W): 52mm x 52mm x 30mm
- Weight: 0.15 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Switching frequency up to 500 Hz
- PNP normally closed output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Includes two brass, nickel-plated mounting nuts
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

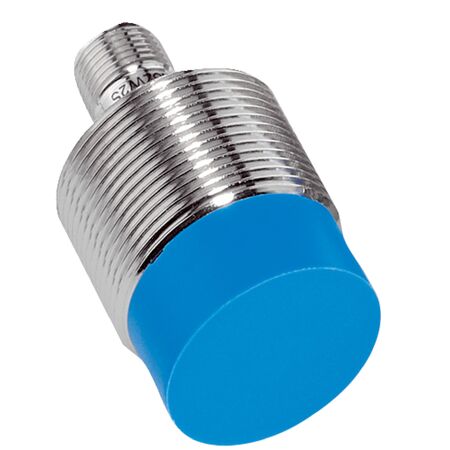

The SICK IME30-15NPOZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and position sensing applications.
