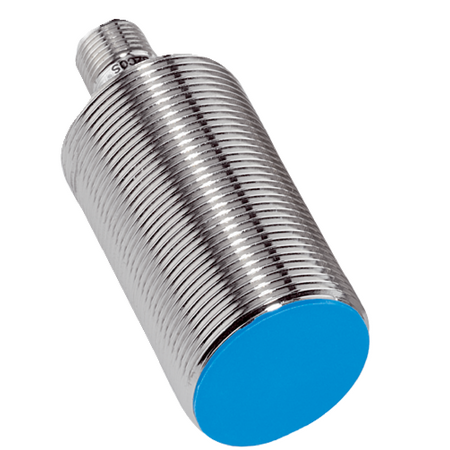

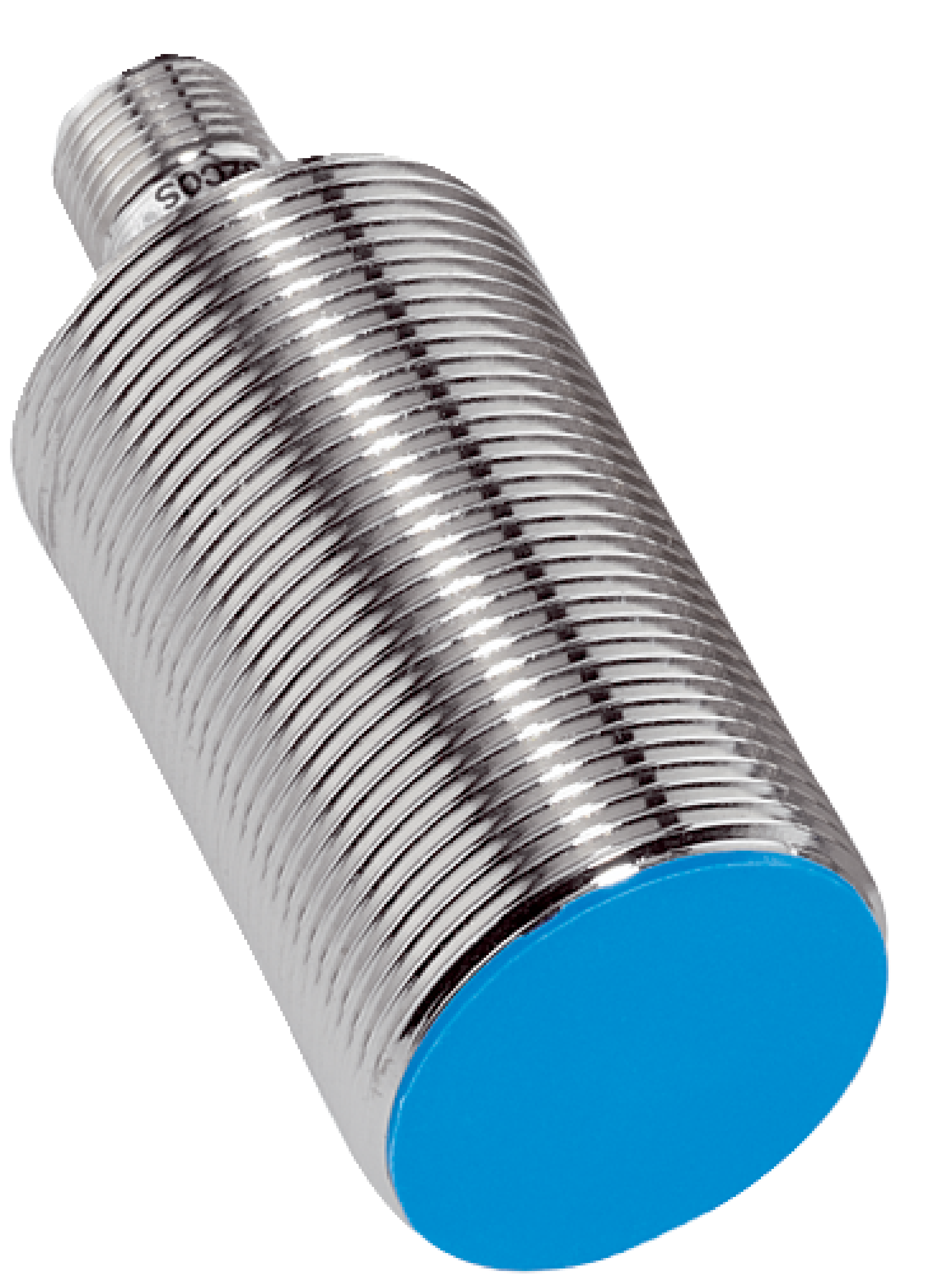

Inductive Proximity Sensor M30 | 15mm Sensing Range | IP67 Rated | PNP Output | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection with a sensing range of 15mm and a robust IP67 rating for dust and water resistance. Ideal for industrial automation and metal detection applications, this sensor features a PNP complementary output and a flush installation type, ensuring seamless integration into manufacturing lines and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Proximity Sensor, SICK Proximity Sensor 15mm, M30 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP complementary
- Connection type: Male M12, 4-pin connector
- Enclosure rating: IP67
- Shock resistance: 30 g, 11 ms
- Operating temperature range: -25°C to +75°C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread size: M30 x 1.5
- Switching frequency: 500 Hz
- Dimensions (H x L x W): 71mm x 71mm x 30mm
- Weight: 0.2 kg
Key Features
- Standard design with M30 x 1.5 thread size
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Flush installation type
- Switching frequency up to 500 Hz
- PNP complementary switching output
- Connection via male M12 4-pin connector
- High protection rating IP67 for dust and water resistance
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper mounting and wiring.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and tear, extending equipment life
- Durable brass housing with nickel plating enhances longevity and reduces waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME30-15BPPZC0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
