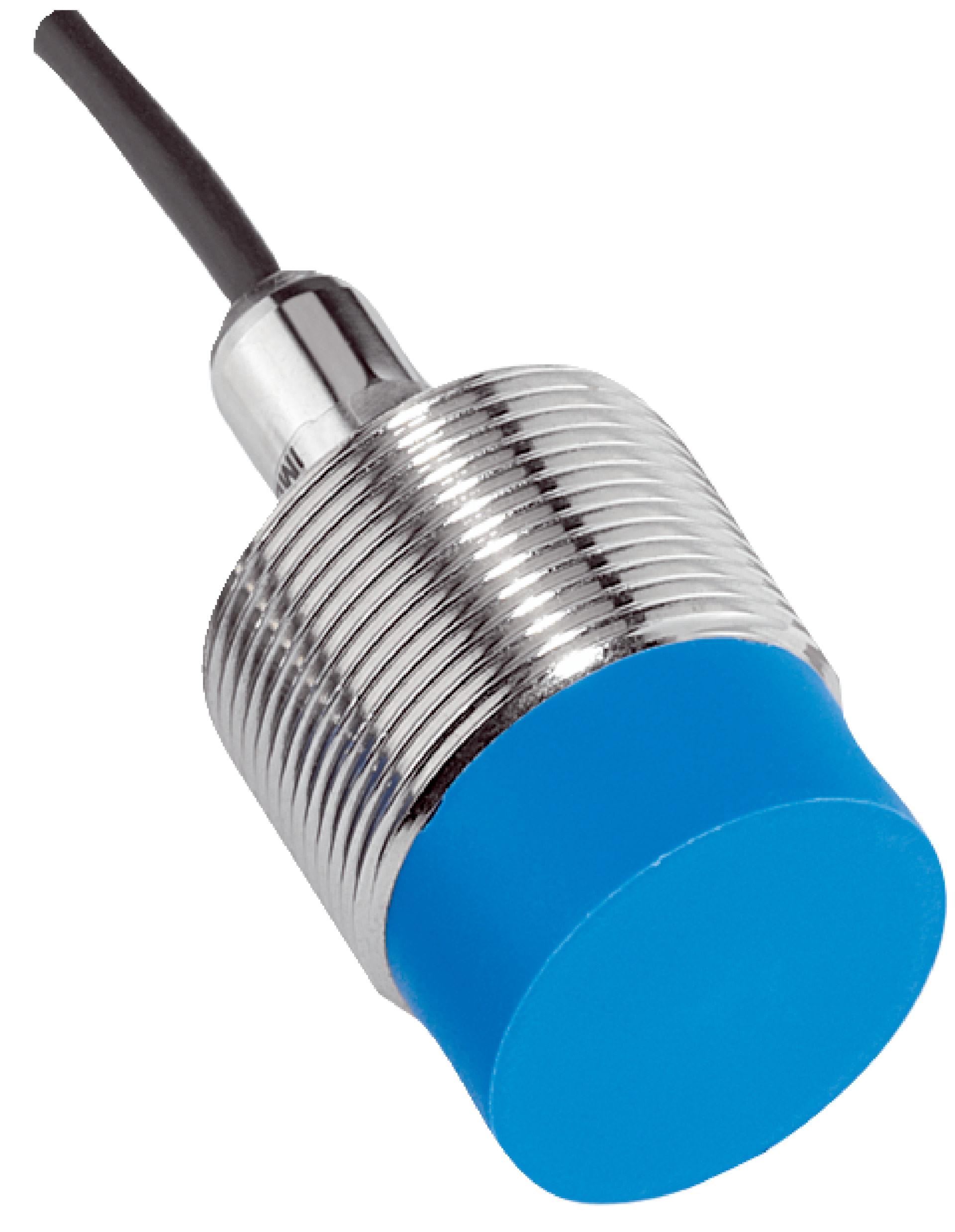

Inductive Proximity Sensor M30 | 15mm Sensing Range | IP67 Rated | PNP Output | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a 15mm sensing range and IP67 rated enclosure for dust and water protection. With a PNP switching output and a robust brass housing, this sensor is perfect for non-contact switching in harsh environments, ensuring durability and efficiency in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M30 | 15mm Sensing Range | IP67 Rated | PNP Output | by SICK
Brand: SICK
SKU: 1042721
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Proximity Sensor, SICK Proximity Sensor 15mm, M30 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter Ø 3.9 mm
- Conductor size: 0.25 mm²
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 22 mm
- Tightening torque max: ≤ 100 Nm
- EMC compliant according to EN 60947-5-2
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Dimensions (H x L x W): 51mm x 51mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Switching frequency up to 500 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Cable connection, 3-wire, 5 m length
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME30-15NPSZW5K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
