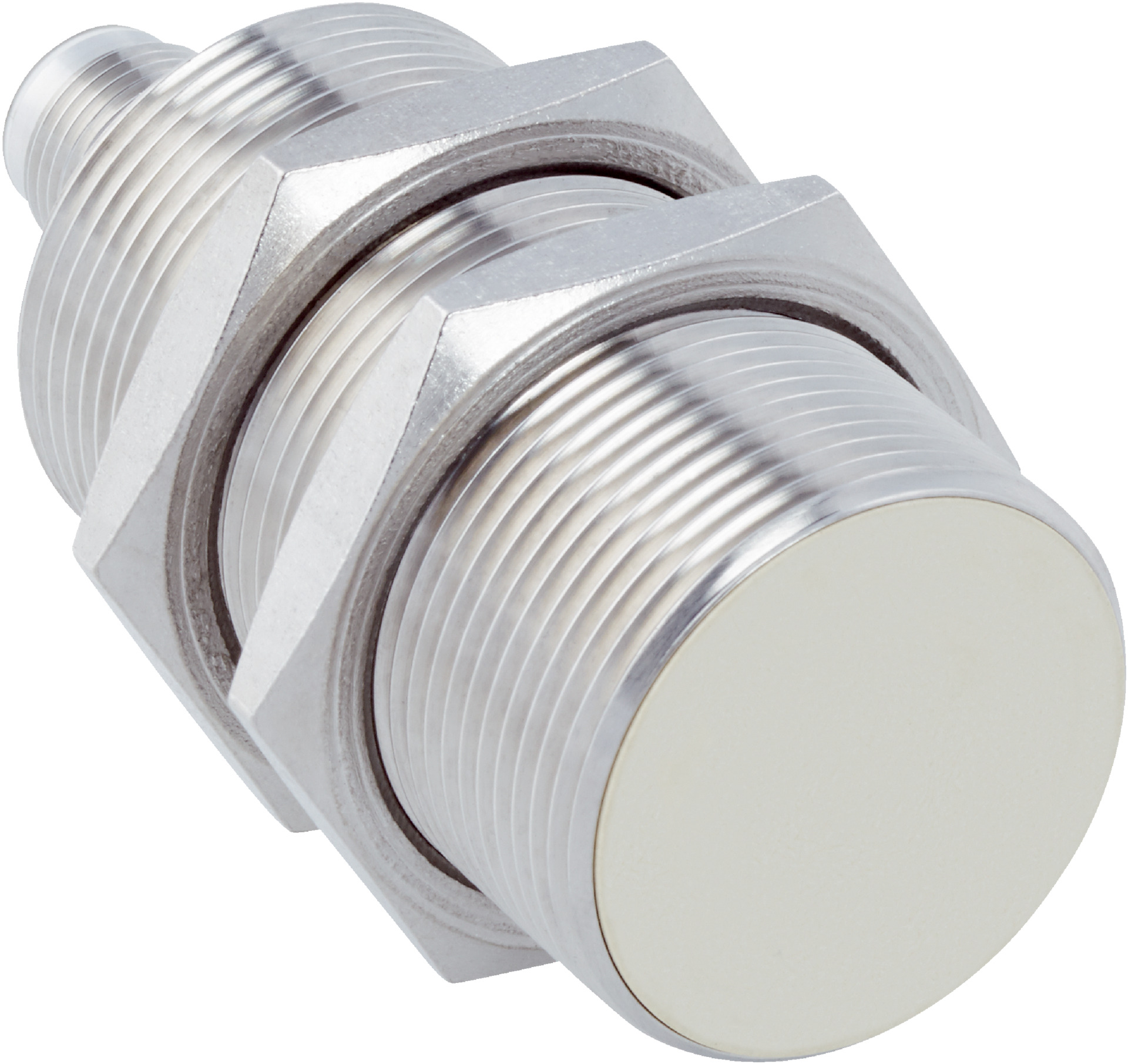

Inductive Proximity Sensor M30 | 15mm Sensing Range | IP68 & IP69K Rated | High Switching Frequency | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation and hygienic zones. With a 15mm sensing range and high switching frequency of 500 Hz, this sensor is built to withstand harsh conditions, featuring an IP68 and IP69K rating for dust and water protection. Its durable stainless steel housing ensures longevity, making it ideal for applications requiring robust sensing capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread size: M30 x 1.5
- Sensing range (Sn): 15 mm
- Safe sensing range (Sa): 12.15 mm
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40°C to +100°C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Housing length: 70 mm
- Thread length: 52 mm
- Tightening torque max: 100 Nm
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Flush installation type with 15 mm sensing range
- High switching frequency of 500 Hz
- PNP switching output with normally open function
- IP68 and IP69K rated for protection against dust and high-pressure washdown
- Resistant to cleaning agents and temperature resistant from -40°C to +100°C
- Visual adjustment indicator and IO-Link communication interface
- Stainless steel V4A housing (DIN 1.4404 / AISI 316L) with plastic sensing face
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant for harsh environments
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link configuration to ensure proper operation and safety compliance.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring reliable object detection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Resistant to cleaning agents allowing for hygienic maintenance without damage
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

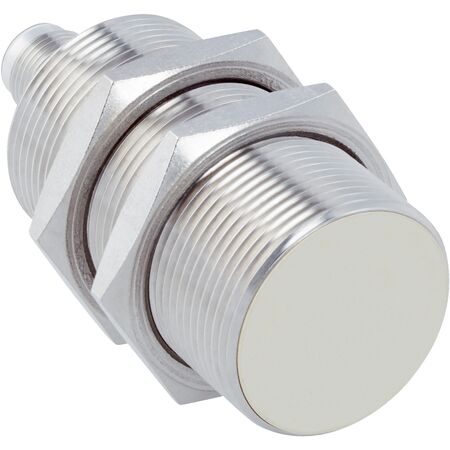

The SICK IMF30-15BPSNC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
