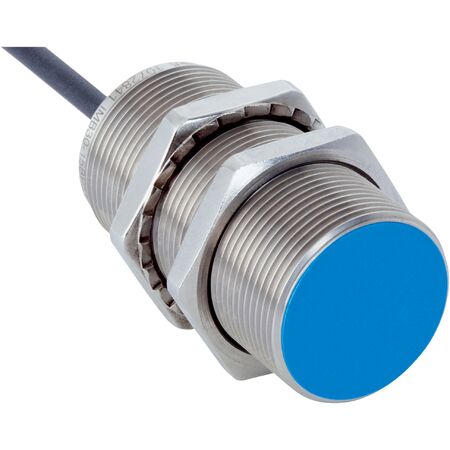

Inductive Proximity Sensor M30 | 15mm Sensing Range | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable detection of metal objects in industrial automation. With a 15mm sensing range and high switching frequency of 500 Hz, it excels in harsh environments thanks to its IP68 and IP69K ratings. Ideal for mobile machines and applications requiring robust sensing, this sensor ensures durability and efficiency in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M30 | 15mm Sensing Range | IP68 & IP69K Rated | by SICK
Brand: SICK
SKU: 1074415
Alternatively Known As: Inductive Proximity Sensor M30, IMB30 Proximity Sensor, SICK Proximity Sensor 15mm, IO-Link Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP complementary
- Switching frequency: 500 Hz
- Sensing range Sn: 15 mm
- Safe sensing range Sa: 12.15 mm
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68 and IP69K
- Cable: PUR, 4-wire, 2 m length, diameter 4.5 mm
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Operating temperature: -40 °C to +100 °C
- Shock resistance: 100 g / 2 ms / 500 cycles; vibration resistance: 10 Hz to 500 Hz
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 60mm x 60mm x 30mm
- Weight: 0.2 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Flush installation type with 15 mm sensing range
- High switching frequency of 500 Hz with PNP complementary output
- Cable connection type, 4-wire, 2 m length
- Enclosure rating IP68 and IP69K for harsh environments
- Resistant against coolant lubricants and temperature resistant
- Equipped with IO-Link communication interface V1.0
- Shock and vibration resistant with high mechanical durability
- Includes mounting nut made of V2A stainless steel with locking teeth
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for detecting metal objects
- Mobile machines operating in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh environments reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMB30-15BPPVU2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications in harsh environments.
