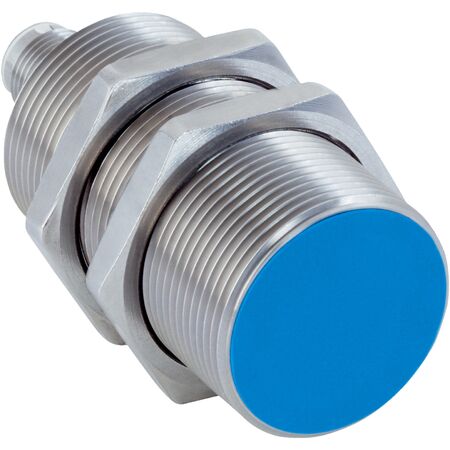

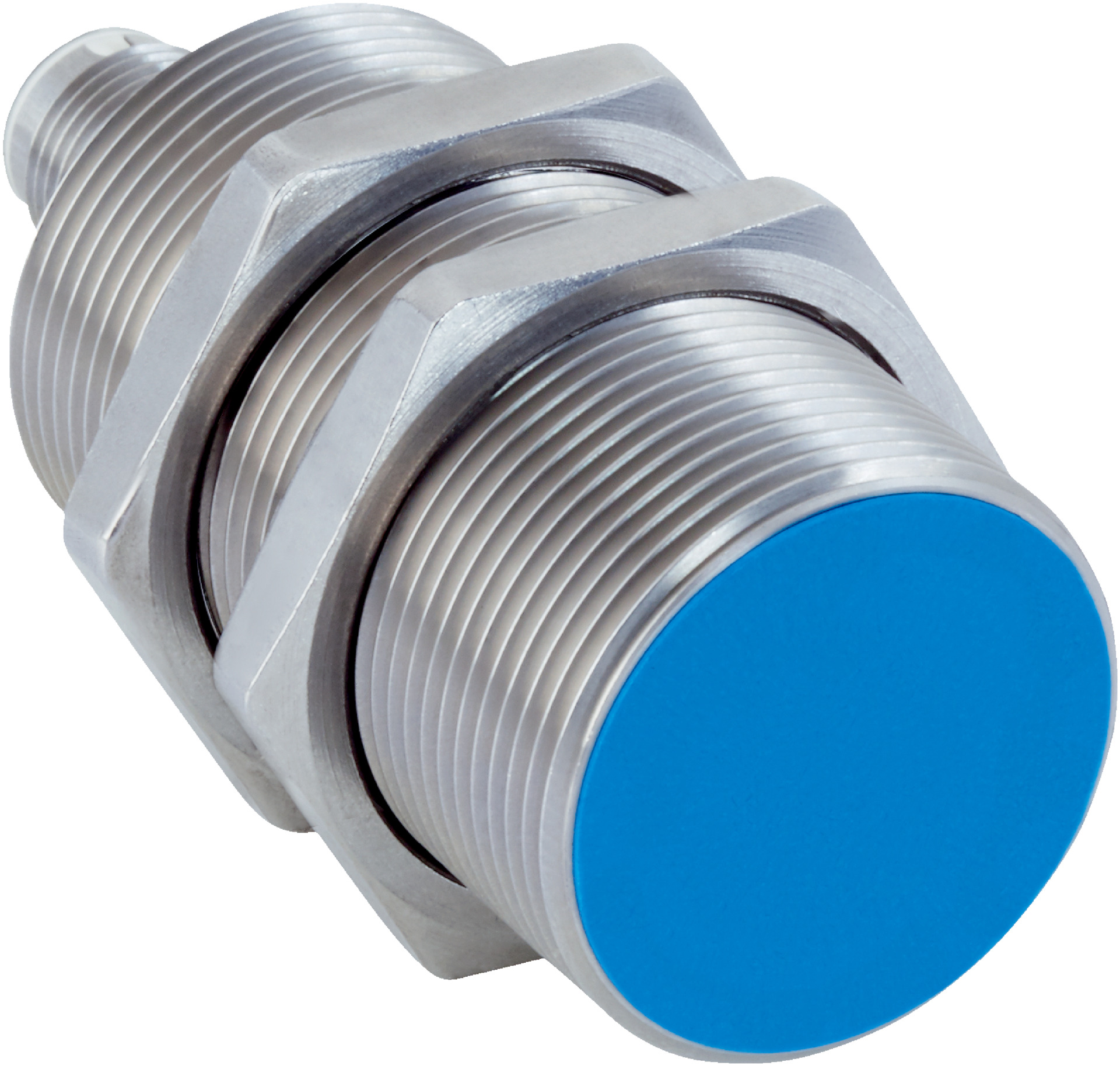

Inductive Proximity Sensor M30 | 15mm Sensing Range | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M30 offers a 15mm sensing range and is designed for robust applications in harsh environments. With an IP68 and IP69K rating, this sensor is resistant to coolants and lubricants, making it ideal for mobile machines and industrial automation. Built with a durable stainless steel housing, it ensures longevity and reliability in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Switching output: PNP normally open
- Electrical wiring: DC 3-wire
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 25 g
- EMC compliance with multiple standards including ECE-R10 and DIN ISO 11452-2
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Protection class: III
- Thread length: 52.15 mm
- Tightening torque max: 100 Nm
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Flush installation type
- Switching frequency of 300 Hz with PNP normally open output
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Resistant against coolant lubricants and temperature resistant
- Shock and vibration resistant with high EMC immunity
- Operating temperature range from -40 °C to +100 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor installation and safety standards to ensure proper mounting and connection.
Applications
- Mobile machines
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMS30-15BPSVC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
