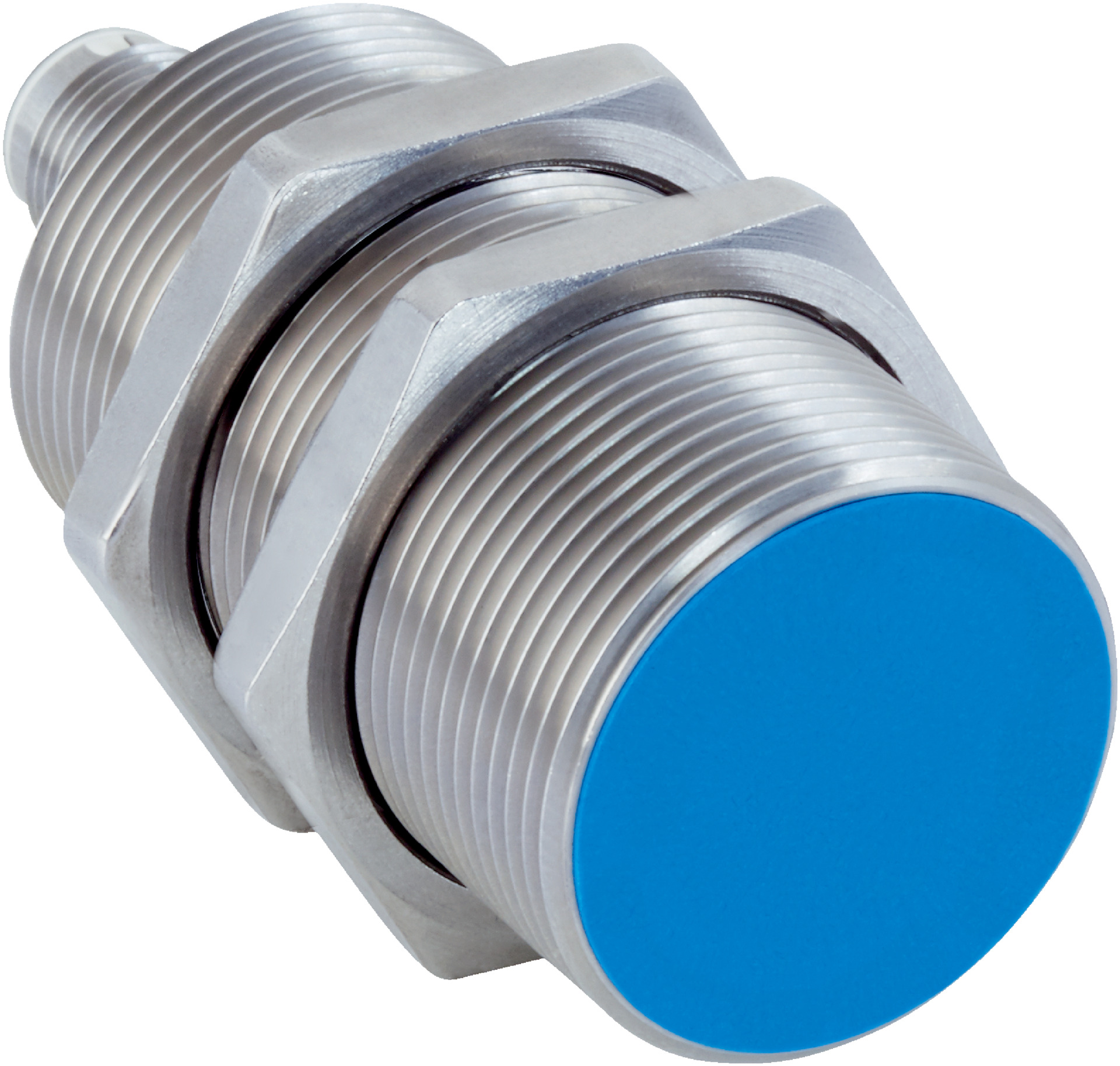

Inductive Proximity Sensor M30 | 15mm Sensing Range | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for robust sensing in harsh environments, featuring a 15mm sensing range and high ingress protection ratings of IP68 and IP69K. Ideal for mobile machines and applications with coolants and lubricants, this sensor ensures reliable performance with a switching frequency of 300 Hz and NPN normally closed output. Built with durable stainless steel housing, it withstands shock and vibration, making it perfect for industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- EMC compliance with Motor Insurance Directive ECE-R10 Rev. 5 and DIN ISO 11452-2
- Environmental test: Quick temperature change EN 60068-2-14
- Corrosion test: Salt spray test EN 60068-2-52 severity 5
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Shock resistance: 100 g 11 ms shocks, vibration resistance 25 g peak
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303
- Sensing face material: Plastic, LCP
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Switching frequency of 300 Hz with NPN normally closed output
- Connection via male M12 4-pin connector
- High ingress protection rating IP68 and IP69K
- Resistant against coolant lubricants and temperature extremes
- Shock and vibration resistant withstanding harsh environments
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Mobile machines
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments extends product lifecycle
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

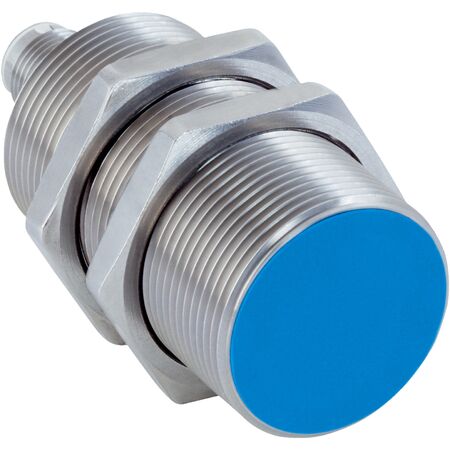

The SICK IMS30-15BNOVC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
