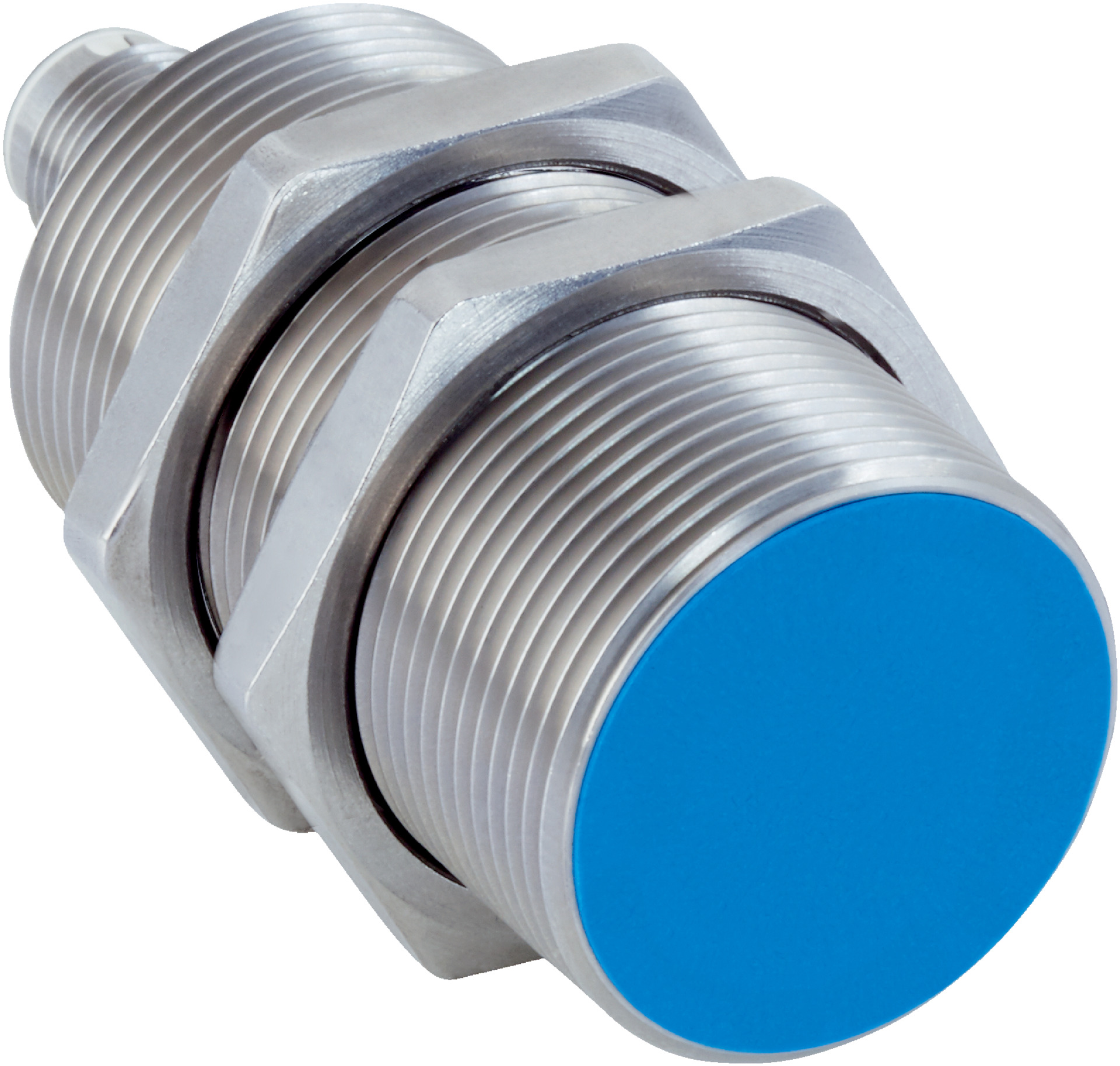

Inductive Proximity Sensor M30 | 15mm Sensing Range | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M30 offers a 15mm sensing range and is designed for flush installation in harsh environments. With an IP68 and IP69K enclosure rating, it withstands cleaning agents and extreme temperatures from -40 °C to +100 °C. Ideal for mobile machines and hygienic zones, this sensor features a PNP normally closed output and robust stainless steel housing, ensuring reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread size: M30 x 1.5
- Sensing range Sn: 15 mm
- Safe sensing range Sa: 12.15 mm
- Switching frequency: 300 Hz
- Switching output: PNP, normally closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of Sr: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection: Yes
- Shock resistance: 100 g, 11 ms shocks
- Vibration resistance: 25 g peak (10 Hz to 2000 Hz)
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic LCP
- Housing length: 70 mm
- Thread length: 52.15 mm
- Tightening torque max: 100 Nm
- Protection class: III
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Flush installation type
- Switching frequency of 300 Hz with PNP normally closed output
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Resistant to cleaning agents and temperature resistant
- Suitable for harsh environments with vibration and shock resistance
- Housing made of stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face made of plastic LCP
- Wide supply voltage range from 7.2 V DC to 60 V DC
- Short-circuit and power-up pulse protection included
- Ambient operating temperature from -40 °C to +100 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Mobile machines
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to cleaning agents supports hygienic applications minimizing contamination risks
- Energy efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

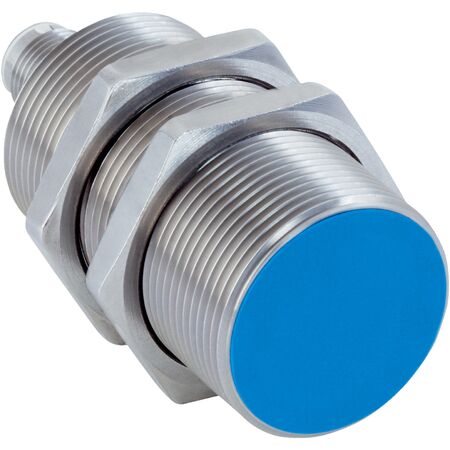

The SICK IMS30-15BPONC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation, mobile machinery, and hygienic zone applications.
