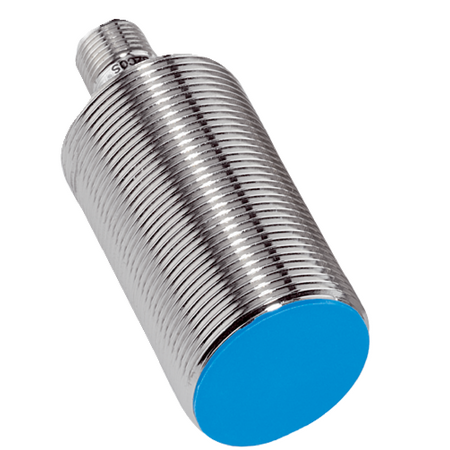

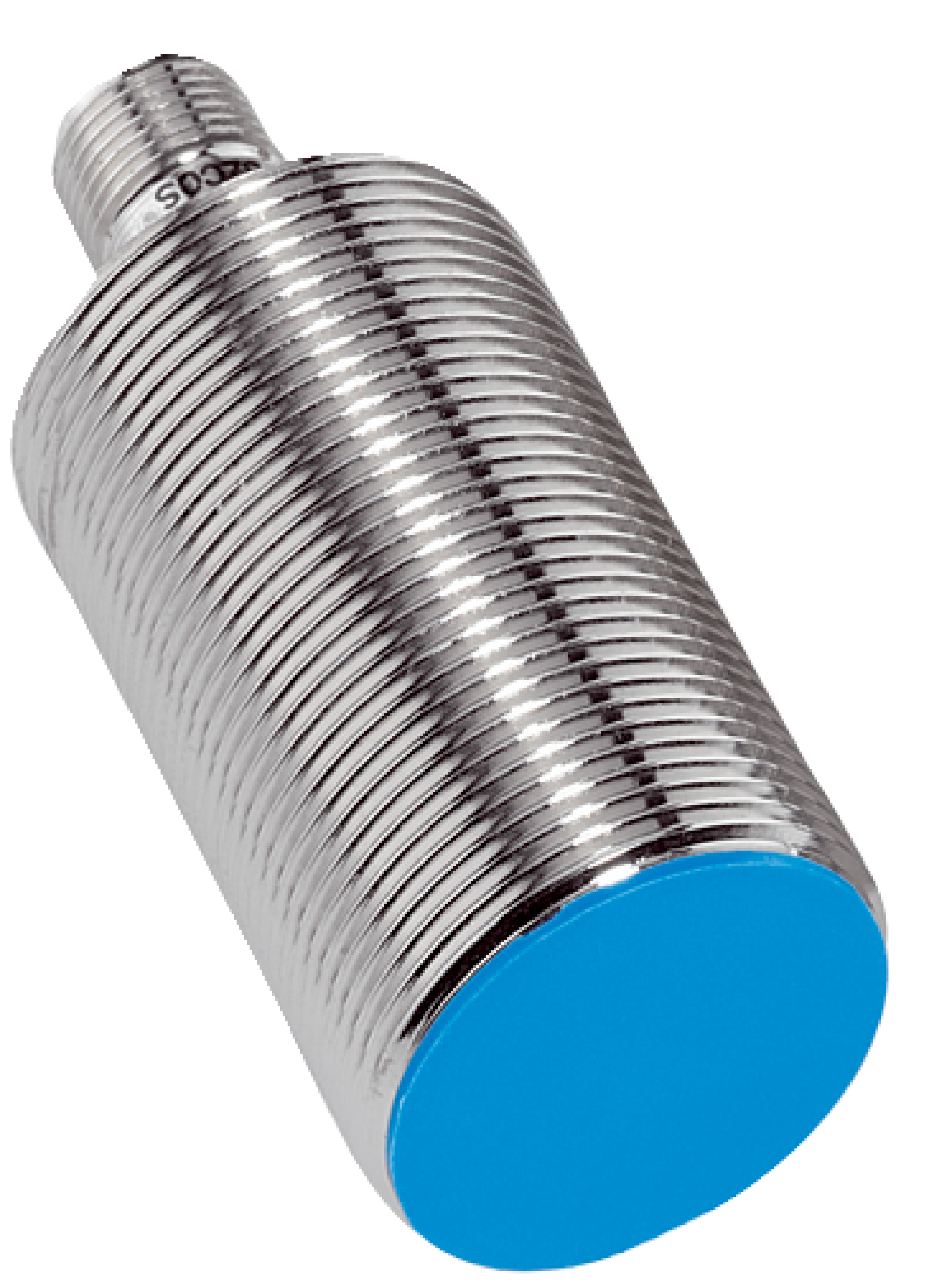

Inductive Proximity Sensor M30 | 15 mm Sensing Range | NPN Normally Open Output | IP67 Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a 15 mm sensing range and NPN normally open output. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for machine safety and control systems. Built to withstand harsh environments, this sensor operates effectively in temperatures ranging from -25 °C to +75 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Proximity Sensor, SICK Proximity Switch, NPN Proximity Sensor
Technical Specifications
- Housing: Brass, nickel-plated
- Thread size: M30 x 1.5
- Sensing range Sn: 15 mm
- Safe sensing range Sa: 12.15 mm
- Installation type: Flush
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 71 mm
- Thread length: 54 mm
- Tightening torque max: ≤ 100 Nm
- Dimensions (H x L x W): 71mm x 71mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Flush installation type with 15 mm sensing range
- NPN normally open (NO) switching output with DC 3-wire electrical wiring
- High switching frequency of 500 Hz
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
- Operating temperature range from -25 °C to +75 °C
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Metal detection in manufacturing processes
- Position sensing in robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IME30-15BNSZC0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
