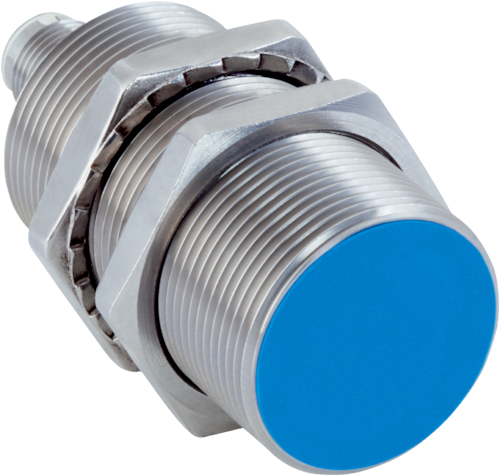

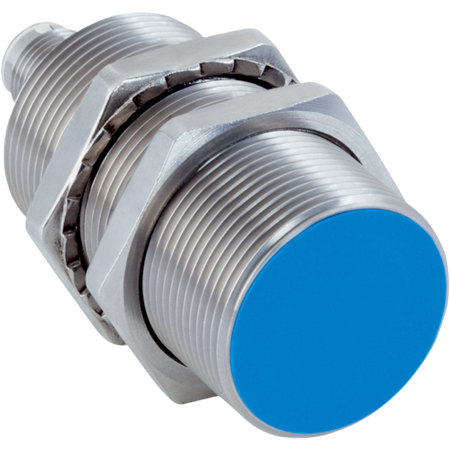

Inductive Proximity Sensor M30 15mm Sensing Range IP68 & IP69K Rated Variant-2 (PNP Output) SICK

BRAND: SICK
SKU: 1074411
$181.50 List price: $228.10
+ −
30 Days Return Electricians Unlock Trade Access
The Inductive Proximity Sensor M30 is designed for reliable metal detection in industrial automation and mobile machinery.

Alternatively Known As: Inductive Proximity Sensor M30, SICK IMB30 Sensor, M30 Inductive Sensor, PNP Inductive Sensor

Technical Specifications
  • Supply voltage: 10 V DC to 30 V DC
  • Switching output: PNP complementary
  • Switching frequency: 500 Hz
  • Sensing range Sn: 15 mm
  • Safe sensing range Sa: 12.15 mm
  • Connection type: Male connector M12, 4-pin
  • Enclosure rating: IP68 and IP69K
  • Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
  • Operating temperature: -40 °C to +100 °C
  • Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
  • Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
  • Dimensions (H x L x W): 70mm x 70mm x 30mm
  • Weight: 0.1 kg
Key Features
  • Standard design housing with M30 x 1.5 thread size
  • Flush installation type with 15 mm sensing range
  • High switching frequency of 500 Hz with PNP complementary output
  • Male connector M12, 4-pin connection type
  • Enclosure rating IP68 and IP69K for high protection
  • Resistant against coolant lubricants and temperature resistant
  • Shock and vibration resistant with high durability
  • Communication interface IO-Link V1.0 with COM2 (38.4 kBaud)
Professional Installation Requirements
  • Professional installation by qualified personnel is recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
  • Industrial automation for detecting metal objects
  • Mobile machines operating in harsh environments
  • Zones with coolant lubricants and difficult application conditions
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable stainless steel housing reduces waste and replacement frequency
  • Energy-efficient operation with low power consumption
  • Complies with China RoHS for hazardous substance restrictions
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

The SICK IMB30-15BPPVC0S inductive sensor is available for immediate purchase, ideal for industrial automation and mobile machinery applications requiring reliable metal object detection.
