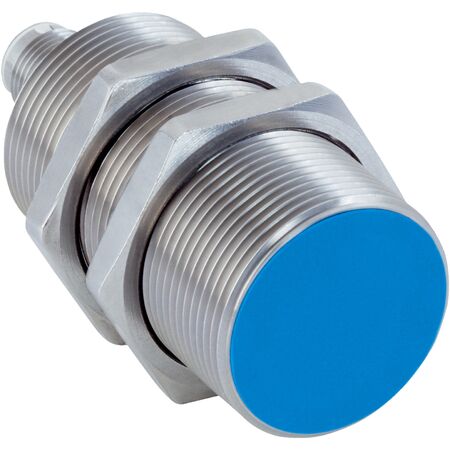

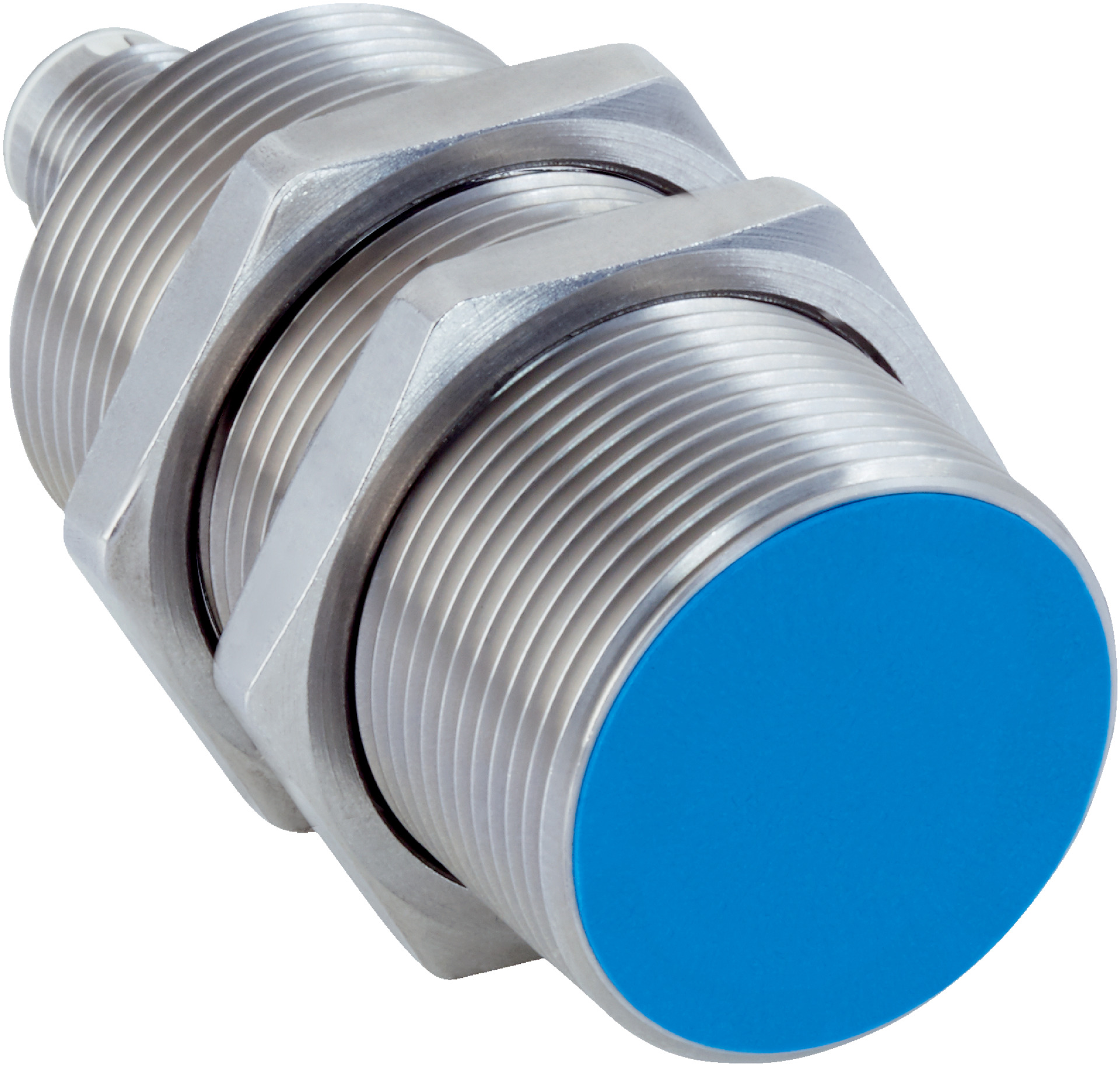

Inductive Proximity Sensor M30 | 15mm Sensing Range | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M30 offers a 15mm sensing range and is designed for robust applications in mobile machines and hygienic zones. With a durable stainless steel housing and high EMC immunity, it operates efficiently in challenging conditions, ensuring reliable performance in industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Switching output: PNP, normally open
- Switching frequency: 300 Hz
- No load current: ≤ 10 mA
- Continuous current: ≤ 200 mA
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- EMC: Complies with Motor Insurance Directive ECE-R10 Rev. 5 and DIN ISO 11452-2
- Shock resistance: 100 g, 11 ms shocks in all directions
- Vibration resistance: 25 g peak, 10 Hz to 2000 Hz
- Operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic LCP
- Enclosure rating: IP68 and IP69K
- Connection type: Male M12, 4-pin connector
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Switching frequency of 300 Hz with PNP normally open output
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Resistant to cleaning agents and temperature resistant
- Shock and vibration resistant with high EMC immunity
- Housing made of stainless steel V4A (AISI 316L) and sensing face of plastic LCP
- Wide operating temperature range from -40 °C to +100 °C
- Includes mounting nuts, brass nickel-plated
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with inductive sensors and industrial electrical standards to ensure proper mounting and wiring.
Applications
- Mobile machines
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to cleaning agents supports hygienic environments without frequent replacements
- Energy efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMS30-15BPSNC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation, mobile machinery, and hygienic environments.
