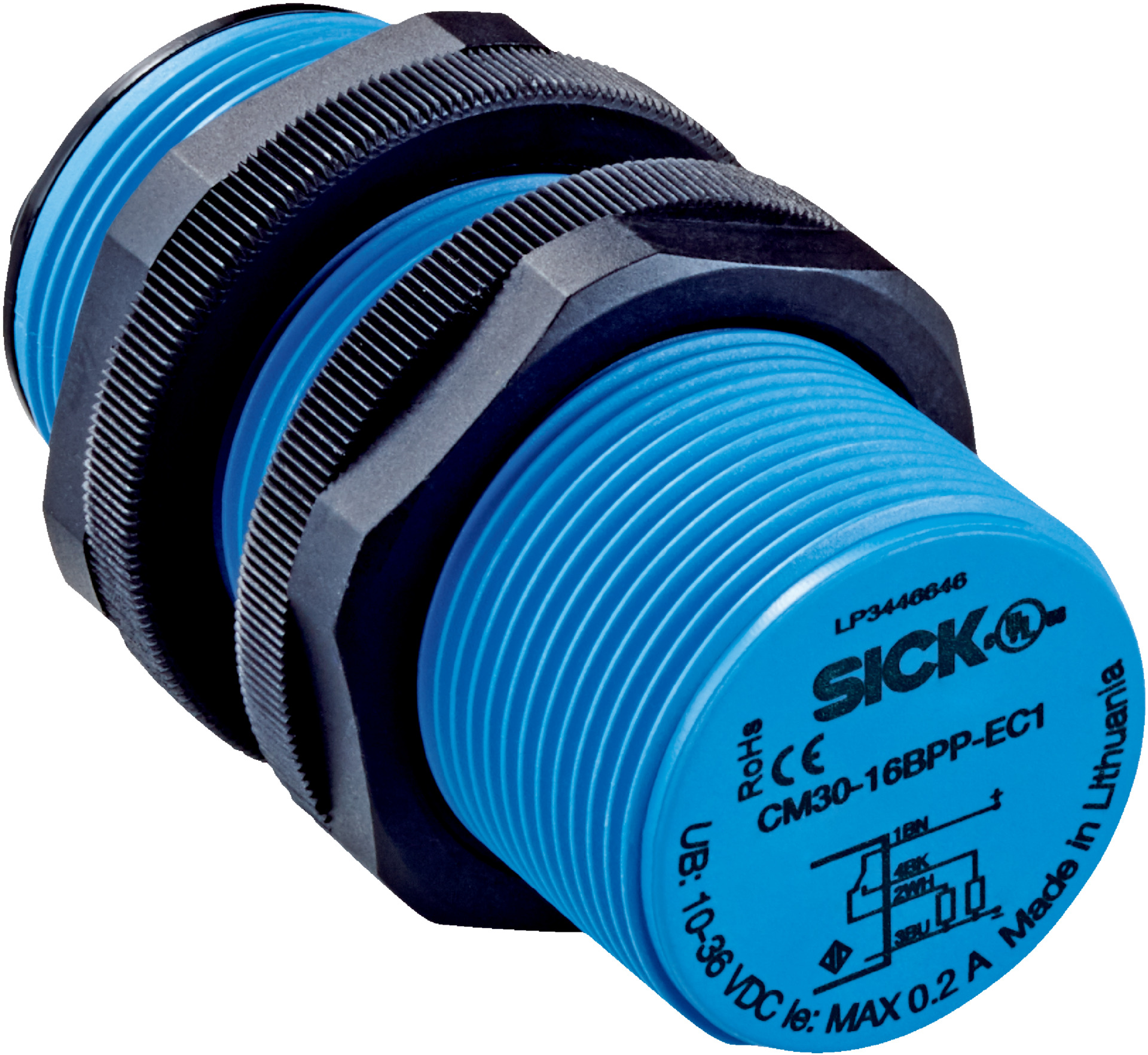

Inductive Proximity Sensor M30 | 16mm Sensing Range | IP67, IP68, IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a sensing range of up to 16 mm and a robust IP67, IP68, and IP69K rating. Ideal for manufacturing lines and safety control systems, this sensor ensures non-contact sensing to reduce mechanical wear and extend device life, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 36 V DC
- Current consumption: 12 mA
- Voltage drop: ≤ 2 V DC
- Switching frequency: 50 Hz
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ±10%
- Continuous current Ia: ≤ 200 mA
- Time delay before availability: ≤ 200 ms
- Housing material: Plastic, PBT
- Thread length: 59.5 mm
- Tightening torque max: ≤ 7.5 Nm
- EMC compliant according to EN 60947-5-2
- Shock and vibration resistance according to EN 60068
- Dimensions (H x L x W): 30mm x 74mm x 30mm
- Weight: 0.1 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Sensing range up to 16 mm with safe sensing range of 12.24 mm
- Flush installation type
- Switching frequency of 50 Hz
- PNP switching output with complementary wire configurable function
- Connection via male M12 4-pin connector
- Adjustment potentiometer with 11 turns for sensitivity
- High enclosure rating: IP67, IP68, and IP69K
- Shock and vibration resistant according to EN 60068
- Short-circuit and power-up pulse protection included
- Wide ambient operating temperature from -30°C to +85°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring non-contact sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact sensing reduces mechanical wear and extends device life
- Durable housing reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

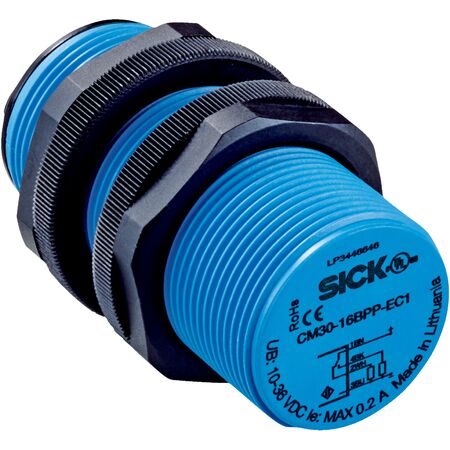

The SICK CM30-16BPP-EC1 Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
