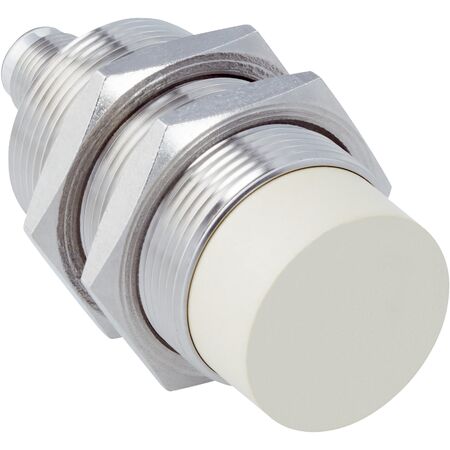

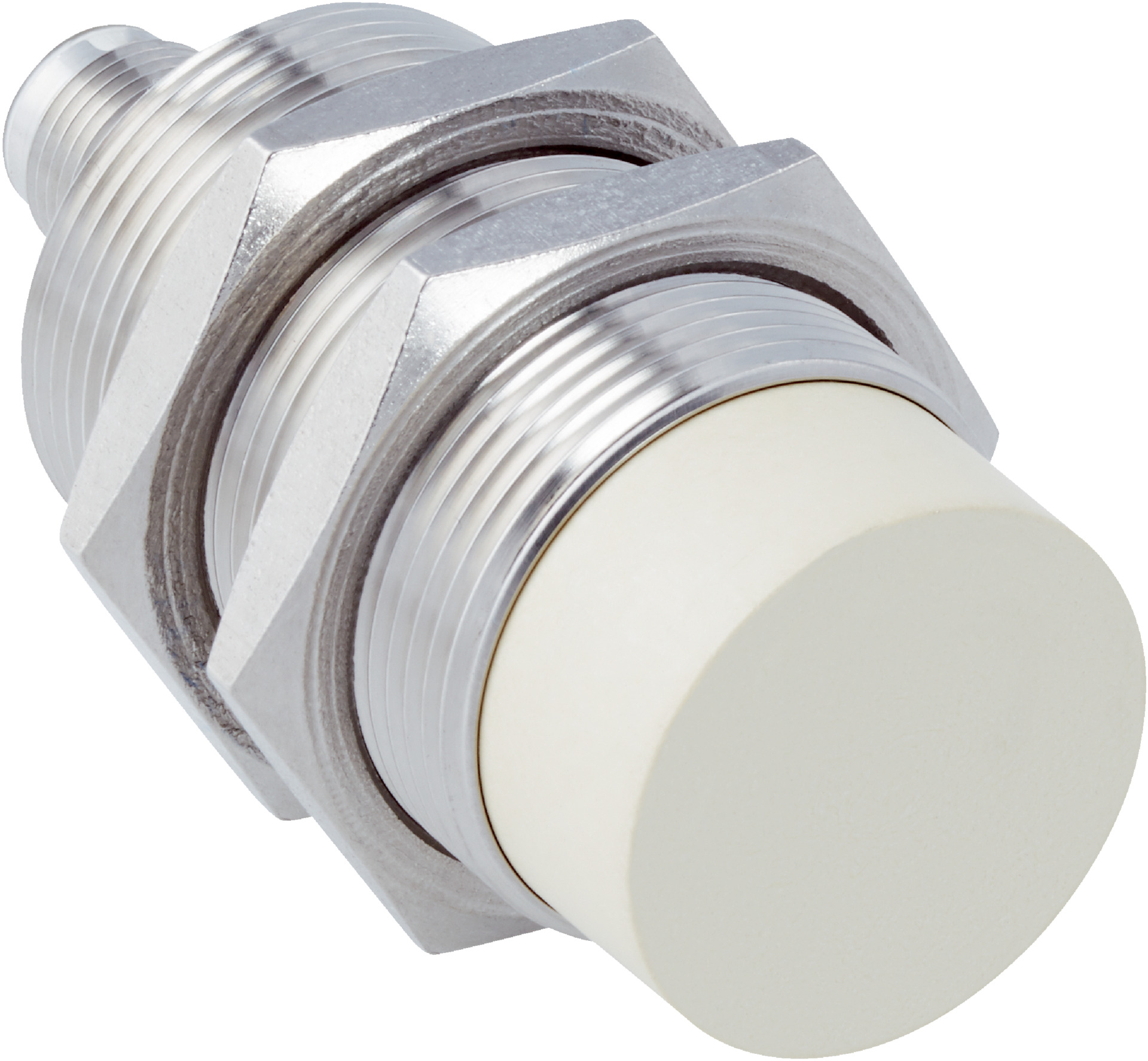

Inductive Proximity Sensor M30 | 20 mm Sensing Range | IP67 Rated | ATEX Certified | by SICK
The Inductive Proximity Sensor M30 is designed for reliable detection in challenging environments, featuring a 20 mm sensing range and an IP67 rated enclosure for dust and water protection. Ideal for hygienic and explosive areas, this sensor offers a high switching frequency of 500 Hz and is built with durable stainless steel housing, ensuring longevity and performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread size: M30 x 1.5
- Sensing range Sn: 20 mm
- Safe sensing range Sa: 16.2 mm
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm, 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -20°C to +95°C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Housing length: 70 mm
- Thread length: 40 mm
- Tightening torque max: 100 Nm
- ATEX marking: II 3G Ex ec IIC T4 Gc X, II 3D Ex tc IIIC T135°C Dc X
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type with 20 mm sensing range
- High switching frequency of 500 Hz with PNP NO output
- IP67 rated enclosure for dust and water protection
- Resistant to cleaning agents and temperature resistant
- Visual adjustment indicator and IO-Link communication interface
- Stainless steel V4A housing and plastic sensing face
- Shock and vibration resistant with wide ambient temperature range (-20°C to +95°C)
- ATEX certified for explosive atmospheres (II 3G Ex ec IIC T4 Gc X, II 3D Ex tc IIIC T135°C Dc X)
Professional Installation Requirements
- Professional installation by qualified personnel is recommended, especially for compliance with ATEX and hazardous area requirements.
Applications
- Hygienic and washdown zones
- Difficult application conditions
- Explosive areas requiring ATEX certified sensors
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- Energy-efficient operation with low power consumption
- Resistant to harsh cleaning agents reducing need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMF30-20NPSNC0SX02 inductive sensor is available for immediate purchase, ideal for industrial automation in hygienic, washdown, and explosive environments.
