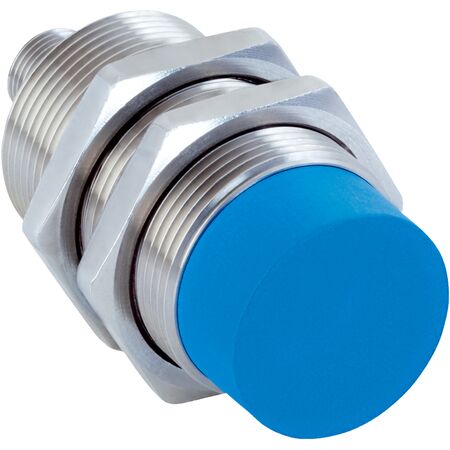

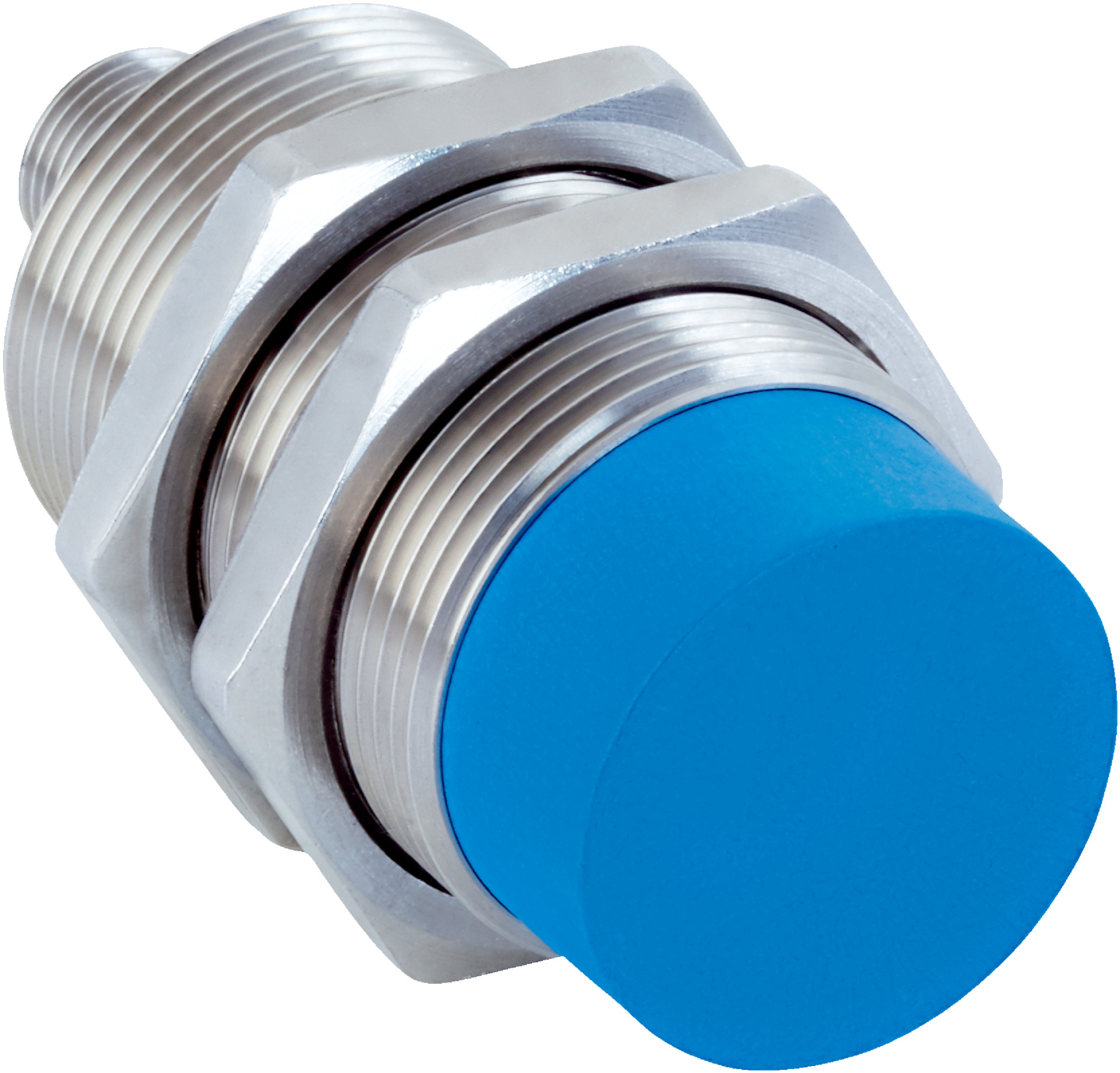

Inductive Proximity Sensor M30 | 20mm Sensing Range | IP67/IP68/IP69K Rated | NPN NO Output | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation. With a sensing range of 20mm and a robust IP67/IP68/IP69K protection rating, it excels in harsh environments, including those with coolants and lubricants. Built for durability, this sensor features a nickel-plated brass housing and is resistant to shock and vibration, making it ideal for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching frequency: 500 Hz
- Protection class: III
- Enclosure rating: IP67, IP68, IP69K
- Shock resistance: 100 g 2 ms sinusoidal, 500 shocks per axis
- Vibration resistance: 60 g peak (10 Hz to 2000 Hz)
- EMC compliant according to EN 60947-5-2
- Housing material: Nickel-plated brass
- Sensing face material: Plastic (LCP)
- Connection type: Male M12, 4-pin connector
- Switching output: NPN, normally open (NO)
- Dimensions (H x L x W): 71mm x 71mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency up to 500 Hz
- NPN normally open (NO) switching output
- Connection via male M12 4-pin connector
- High protection rating: IP67, IP68, IP69K
- Resistant against coolant lubricants and temperature variations
- Shock and vibration resistant according to EN 60068 standards
- Short-circuit and power-up pulse protection included
- Operating temperature range from -40 °C to +85 °C
- Housing made of nickel-plated brass with plastic sensing face
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- High resistance to harsh environments minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMG30-20NNSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
