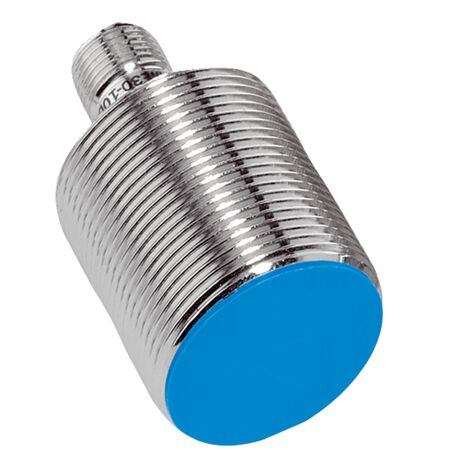

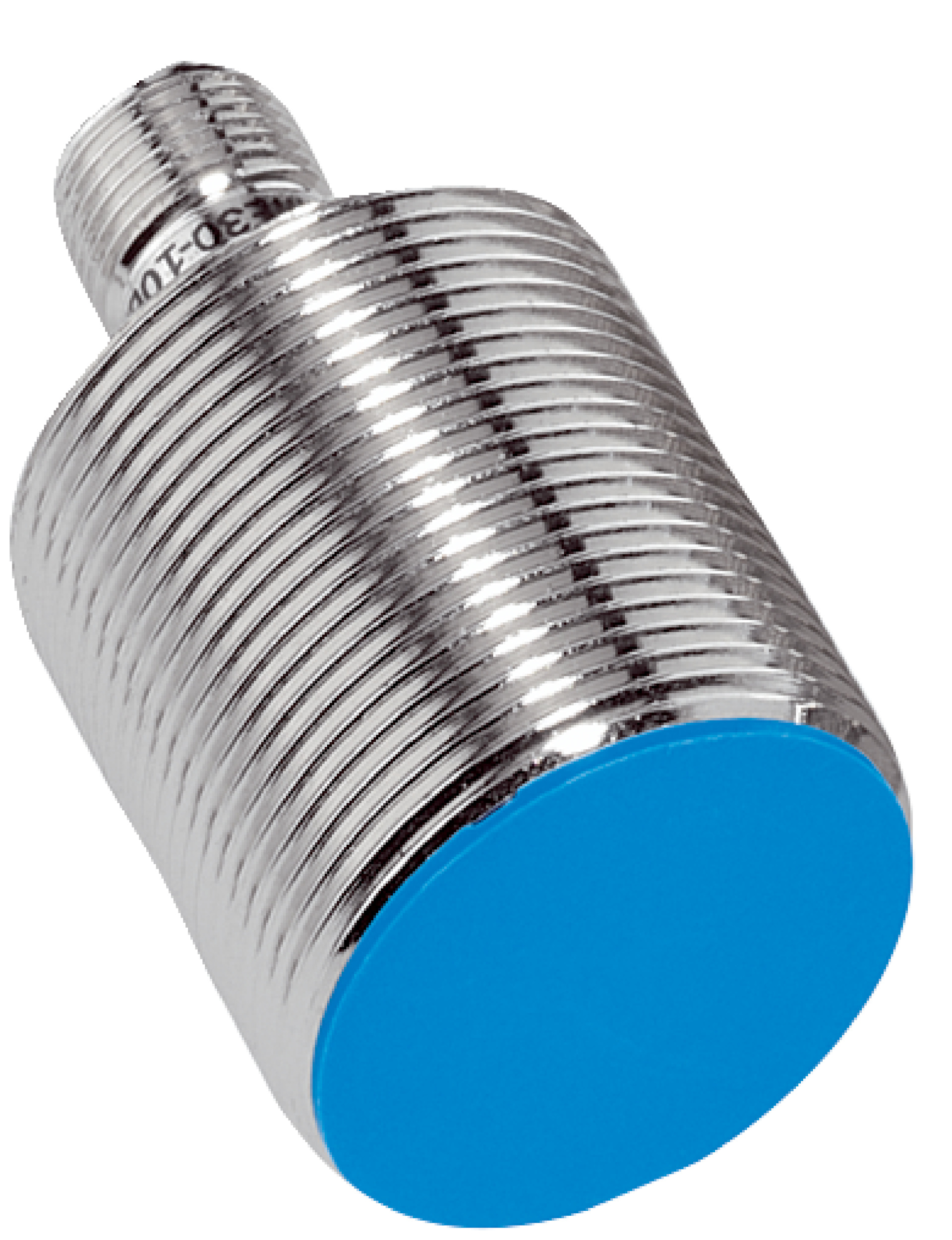

Inductive Proximity Sensor M30 | 20mm Sensing Range | IP67 Rated | PNP Output | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a 20mm sensing range and an IP67 rated enclosure for dust and water protection. With a PNP output and a switching frequency of 200 Hz, it's perfect for machine safety and control systems, ensuring high performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Warm-up time: 60 s
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Operating temperature: -25 °C to +75 °C
- Storage temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Housing length: 52 mm
- Thread length: 35 mm
- Max tightening torque: ≤ 70 Nm
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, NC function
- Dimensions (H x L x W): 52mm x 52mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Quasi-flush installation type
- Switching frequency of 200 Hz
- PNP switching output with NC output function
- DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Triple sensing range special feature
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and industrial sensor systems to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Metal detection in manufacturing processes
- Position sensing in robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME30-20BPOZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
