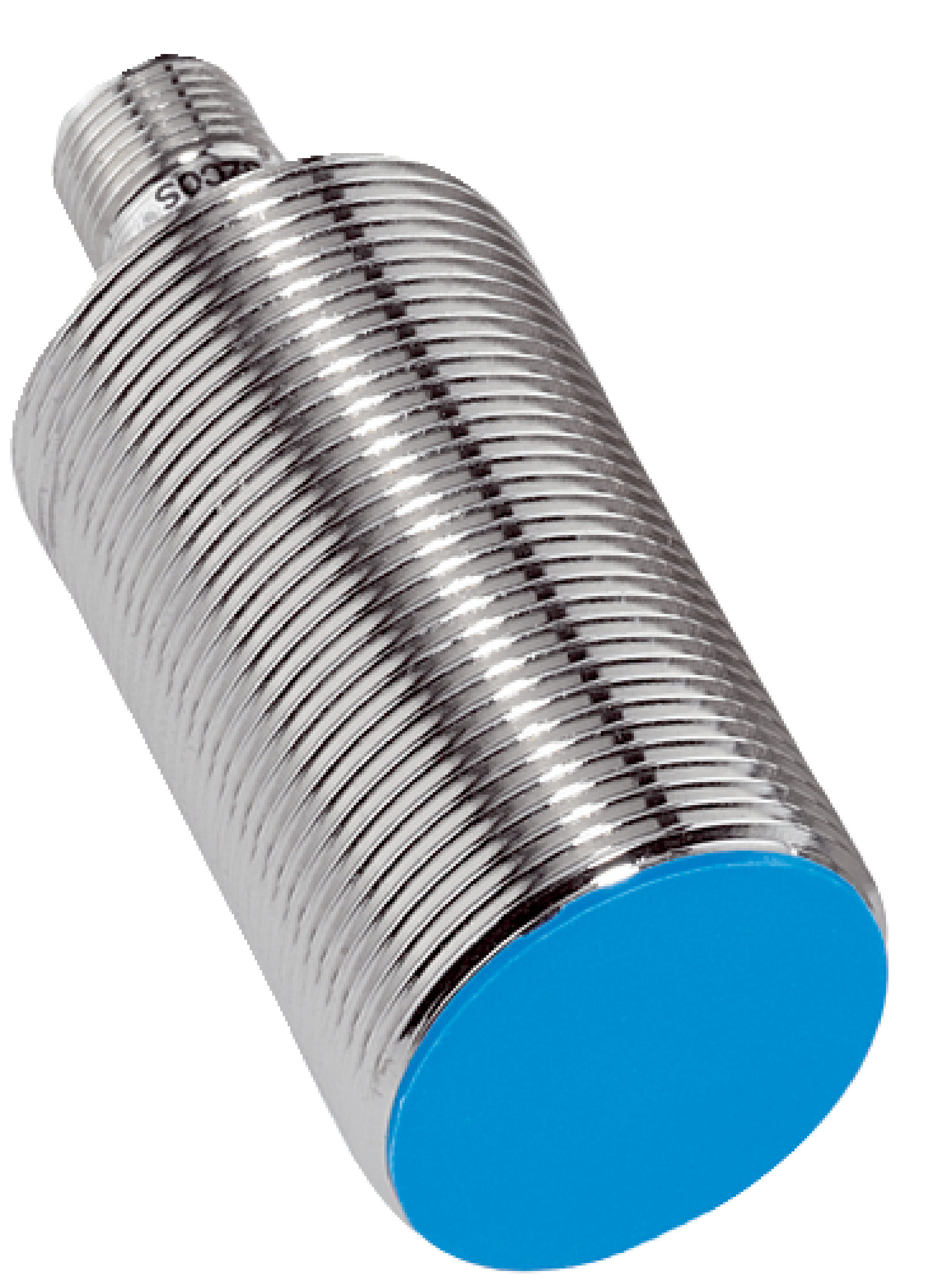

Inductive Proximity Sensor M30 | 20mm Sensing Range | IP67 Rated | PNP Output | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a 20mm sensing range and IP67 enclosure for dust and water protection. With a PNP output and a switching frequency of 200 Hz, it's perfect for manufacturing process control and safety monitoring in machinery, ensuring efficient operation in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Warm-up time: 60 s
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +75 °C
- Ambient storage temperature: –25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic, PA 66
- Housing length: 71 mm
- Thread length: 54 mm
- Tightening torque max: ≤ 70 Nm
- Dimensions (H x L x W): 71mm x 71mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Quasi-flush installation type
- Switching frequency of 200 Hz
- PNP switching output with NO output function
- Connection via male M12, 4-pin connector
- Enclosure rating IP67 for dust and water protection
- Triple sensing range feature
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Position sensing in assembly lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing with nickel plating for long service life reducing waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME30-20BPSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
