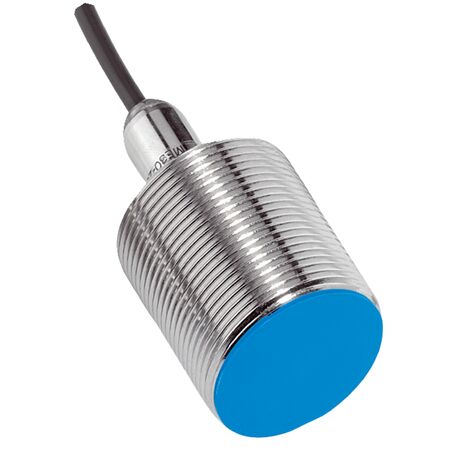

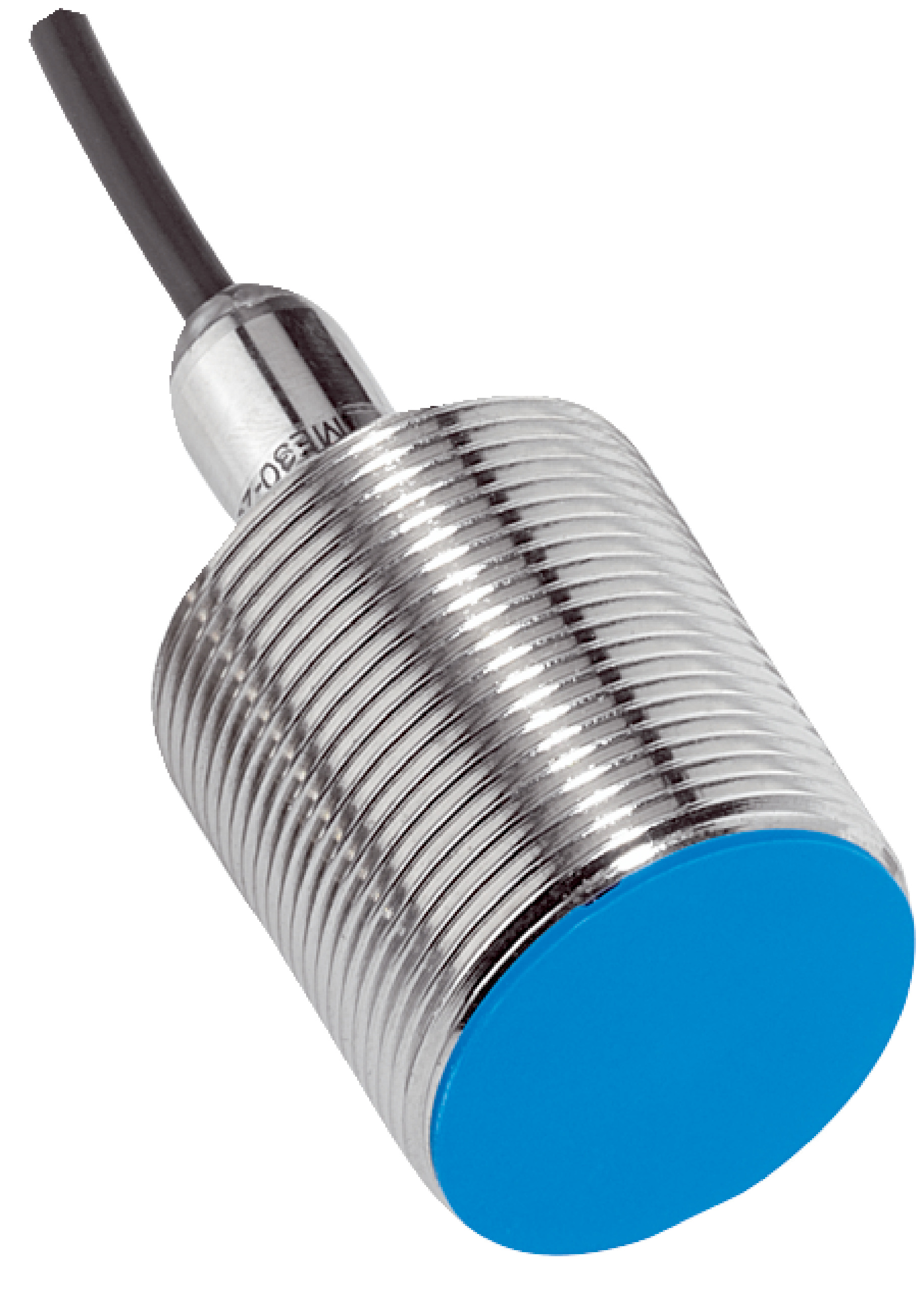

Inductive Proximity Sensor M30 | 20mm Sensing Range | IP67 Rated | Quasi-Flush Installation | by SICK
The Inductive Proximity Sensor M30 is designed for precise object detection in industrial automation, featuring a 20mm sensing range and IP67 enclosure for dust and water protection. With a robust brass housing and a switching frequency of 200 Hz, this sensor is perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Warm-up time: 60 s
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 35 mm
- Tightening torque max: ≤ 70 Nm
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 51mm x 51mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Quasi-flush installation type
- Switching frequency of 200 Hz
- PNP switching output with NO function
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP67 for dust and water protection
- Triple sensing range special feature
- Mounting nut included, brass nickel-plated
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and mounting according to industrial safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing extends product life reducing waste
- Low power consumption with DC 3-wire electrical wiring
- Complies with China-RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME30-20BPSZW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
