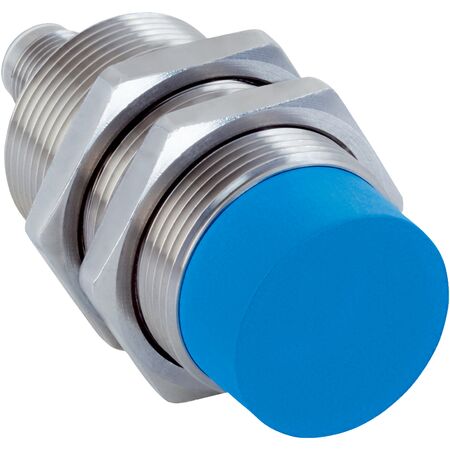

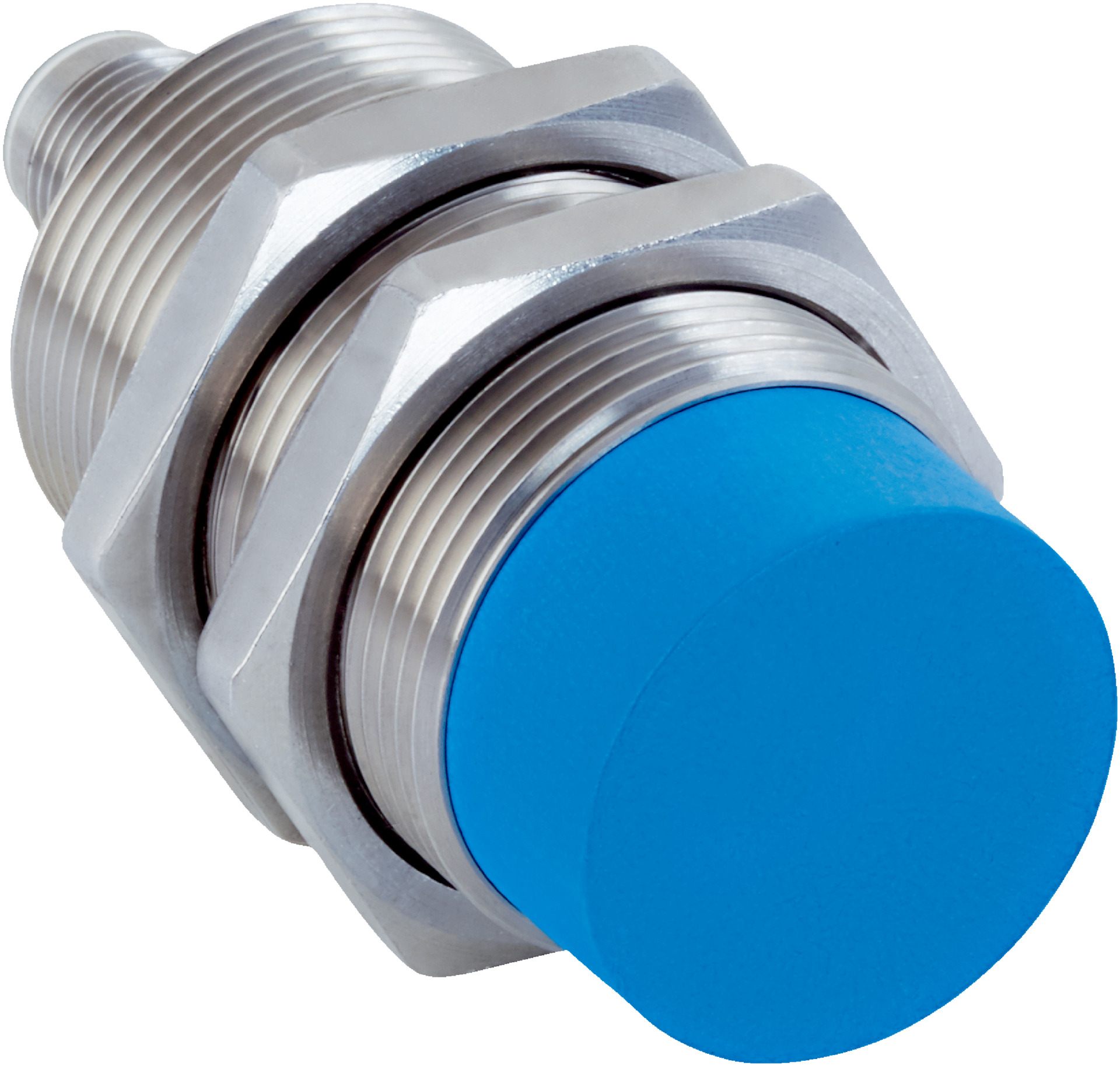

Inductive Proximity Sensor M30 | 20mm Sensing Range | IP68 & IP69K Rated | NPN NC Output | by SICK
The Inductive Proximity Sensor M30 is designed for reliable sensing in harsh environments, featuring a 20mm sensing range and an IP68/IP69K rated enclosure. Ideal for mobile machines and hygienic washdown zones, this sensor offers a switching frequency of 500 Hz and a durable stainless steel housing, ensuring longevity and resistance to cleaning agents.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread size: M30 x 1.5
- Sensing range Sn: 20 mm
- Safe sensing range Sa: 16.2 mm
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, Normally Closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance compliant with EN 60068 standards
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Housing length: 70 mm
- Thread length: 40.15 mm
- Protection class: III
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type with sensing range of 20 mm
- Switching frequency of 500 Hz with NPN normally closed output
- IP68 and IP69K rated enclosure for high protection
- Resistant to cleaning agents and temperature extremes
- Stainless steel V4A housing and plastic sensing face for durability
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and mounting according to manufacturer guidelines.
Applications
- Mobile machines
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to cleaning agents supports hygienic environments
- Long operational life reduces electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK IMS30-20NNONC0S inductive sensor is available for immediate purchase, ideal for industrial and mobile machinery applications requiring reliable sensing in harsh environments.
