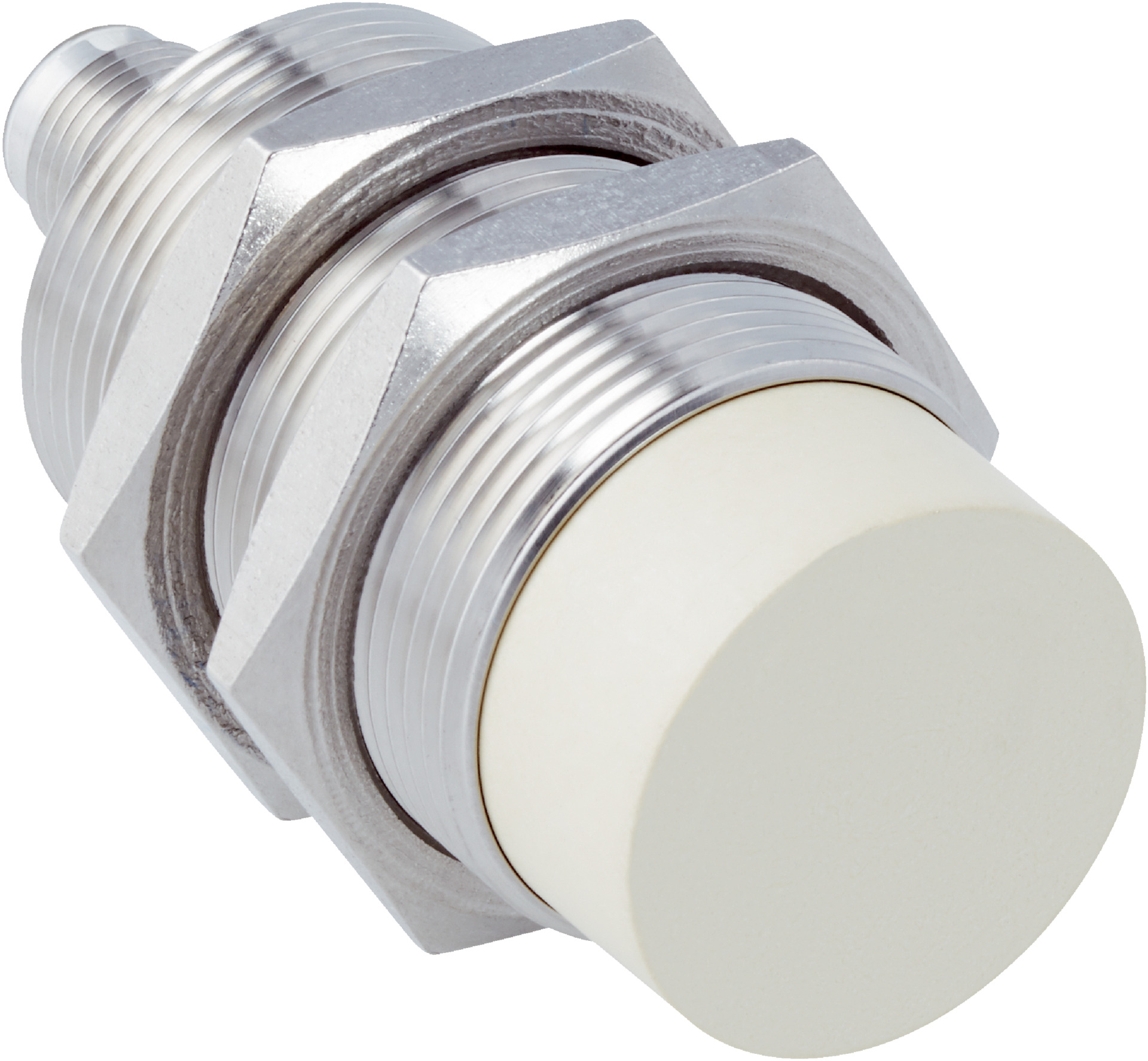

Inductive Proximity Sensor M30 | 20mm Sensing Range | IP68 & IP69K Rated | PNP Output | by SICK
The Inductive Proximity Sensor M30 is designed for robust sensing in industrial automation, featuring a 20mm sensing range and high switching frequency of 500 Hz. With an IP68 and IP69K rating, it excels in hygienic and washdown zones, ensuring reliable performance even in harsh conditions. Built with durable stainless steel housing, this sensor is perfect for applications requiring precision and resilience.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread size: M30 x 1.5
- Sensing range Sn: 20 mm
- Safe sensing range Sa: 16.2 mm
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Ambient operating temperature: -40°C to +100°C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type with 20 mm sensing range
- High switching frequency of 500 Hz with PNP NO output
- IP68 and IP69K rated for protection against dust and high-pressure washdown
- Resistant to cleaning agents and temperature resistant from -40°C to +100°C
- Visual adjustment indicator and IO-Link communication interface
- Stainless steel V4A housing and plastic sensing face for durability
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting and electrical connection according to industrial standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation and process control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh cleaning agents reducing environmental contamination
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

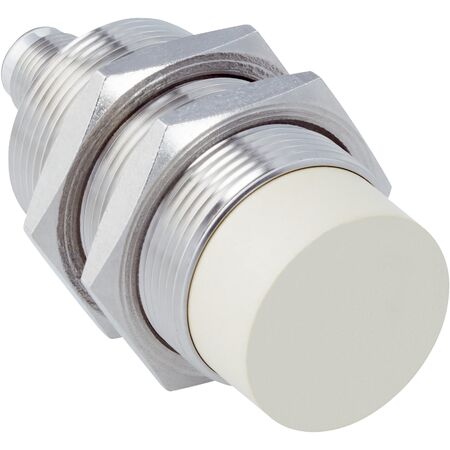

The SICK IMF30-20NPSNC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
