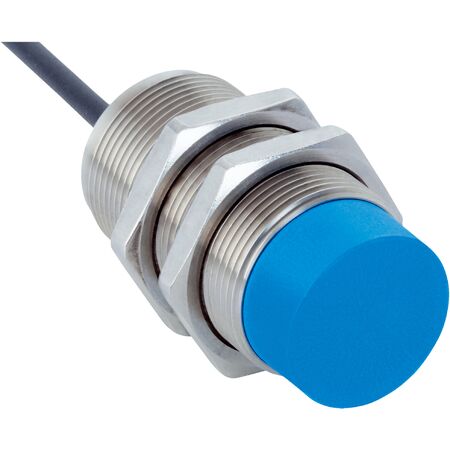

Inductive Proximity Sensor M30 | 20 mm Sensing Range | IP68 & IP69K Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable sensing in harsh environments, featuring a 20 mm sensing range and an impressive switching frequency of 500 Hz. Ideal for mobile machines and hygienic zones, this sensor is built with a durable stainless steel housing and offers protection against cleaning agents, ensuring longevity and minimal maintenance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread size: M30 x 1.5
- Sensing range Sn: 20 mm
- Safe sensing range Sa: 16.2 mm
- Switching frequency: 500 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, Normally Closed (NC)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Time delay before availability: 100 ms
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR, diameter Ø 5 mm
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g, vibration resistance: 25 g
- Ambient operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic LCP
- Housing length: 61 mm
- Thread length: 43.65 mm
- Protection class: III
- Dimensions (H x L x W): 61mm x 61mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type with sensing range of 20 mm
- High switching frequency of 500 Hz with PNP normally closed output
- Cable connection, 3-wire, 2 m length with PUR cable material
- Enclosure rating IP68 and IP69K for harsh environments
- Resistant to cleaning agents and temperature resistant
- Shock and vibration resistant with wide ambient operating temperature from -40 °C to +100 °C
- Housing made of stainless steel V4A (AISI 316L) and sensing face of plastic LCP
- Includes mounting nuts, brass, nickel-plated
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Mobile machines
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMS30-20NPONU2S inductive sensor is available for immediate purchase, ideal for industrial and mobile machine applications requiring reliable sensing in harsh environments.
