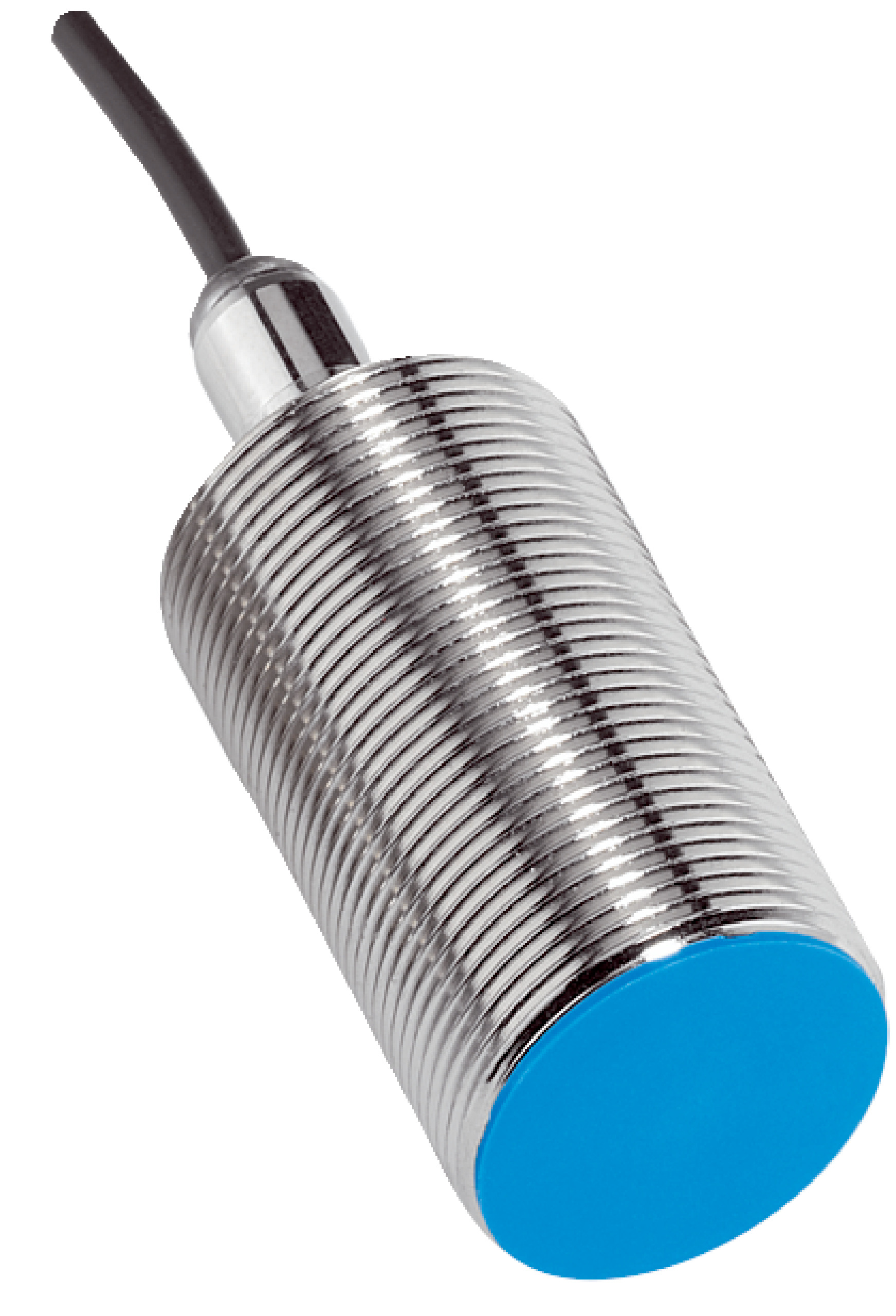

Inductive Proximity Sensor M30 | 20mm Sensing Range | IP67 Rated | NPN Output | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a 20mm sensing range and an IP67 rated enclosure for dust and water protection. With a switching frequency of 200 Hz and a robust brass housing, it's perfect for manufacturing process control and safety monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Warm-up time: 60 s
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ±10%
- EMC compliant according to EN 60947-5-2
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Conductor size: 0.25 mm²
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 54 mm
- Tightening torque max: ≤ 70 Nm
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Quasi-flush installation type
- Switching frequency of 200 Hz
- NPN normally open (NO) switching output
- Cable connection, 3-wire, 2 meters long
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Mounting nut included, brass nickel-plated
- Short-circuit and power-up pulse protection
- Shock and vibration resistant up to 30 g
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Position sensing in assembly lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

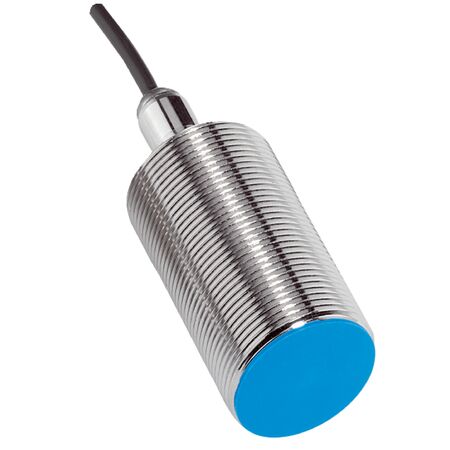

The SICK IME30-20BNSZW2S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
