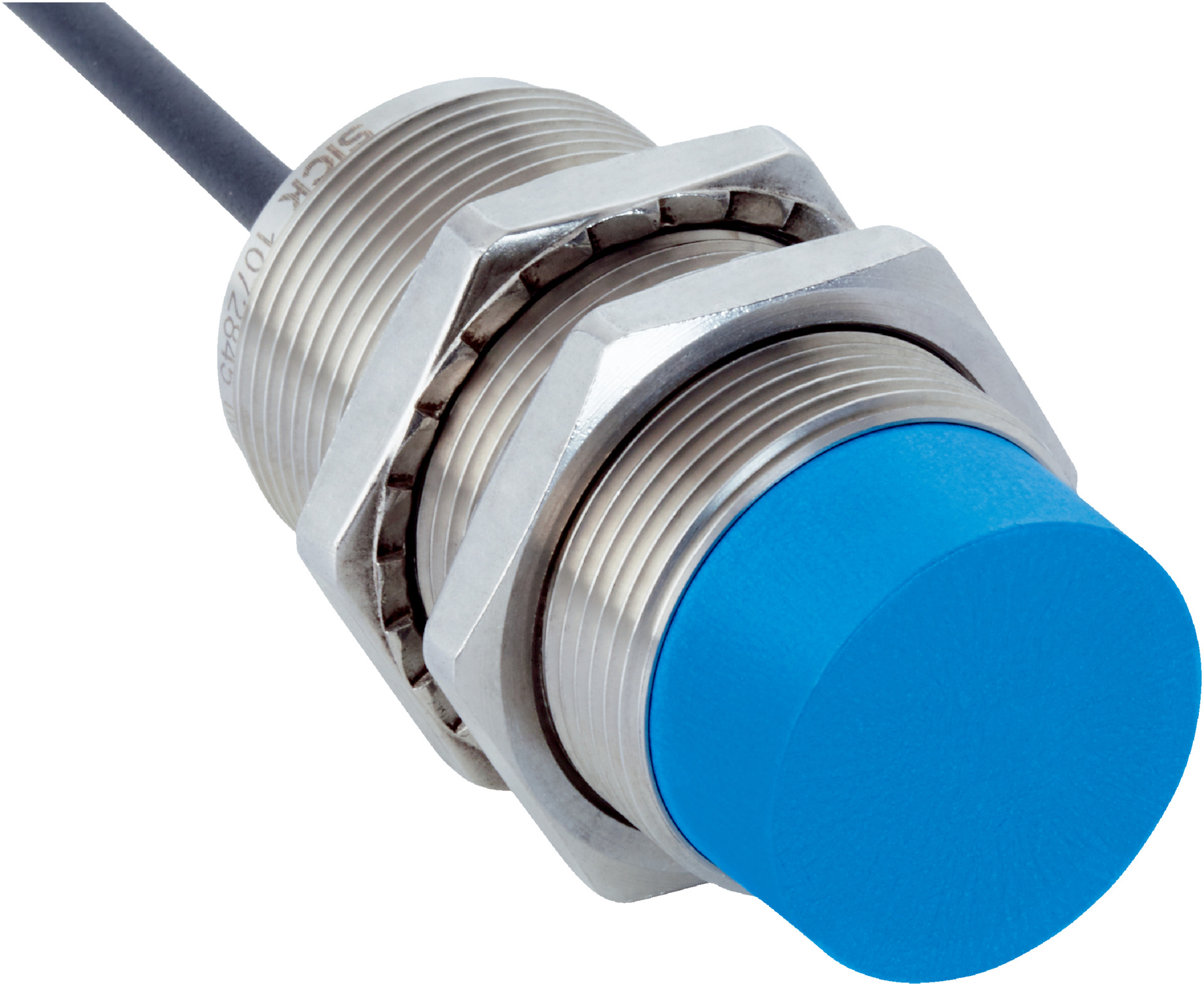

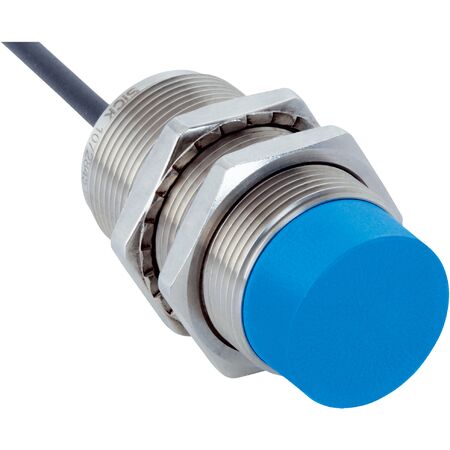

Inductive Proximity Sensor M30 | 20mm Sensing Range | IP68 & IP69K Rated | by SICK
Inductive proximity sensor M30 with a 20mm sensing range and high switching frequency of 500 Hz, perfect for industrial automation and harsh environments. Built with a durable stainless steel housing, this sensor is resistant to coolants and lubricants, ensuring reliable performance in challenging conditions. Ideal for object detection in mobile machines and other demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M30 | 20mm Sensing Range | IP68 & IP69K Rated | by SICK
Brand: SICK
SKU: 1072846
Alternatively Known As: Inductive Proximity Sensor M30, IMB30 Proximity Sensor, SICK Proximity Sensor 20mm, Non-flush Inductive Sensor
Technical Specifications
- Housing: Standard design, stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread size: M30 x 1.5
- Diameter: 30 mm
- Sensing range Sn: 20 mm
- Safe sensing range Sa: 16.2 mm
- Installation type: Non-flush
- Switching frequency: 500 Hz
- Connection type: Cable, 3-wire, 2 m
- Switching output: PNP, NC function
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PUR
- Cable diameter: 4.5 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Ambient operating temperature: -40 °C to +100 °C
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 60mm x 60mm x 30mm
- Weight: 0.2 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type with 20 mm sensing range
- High switching frequency of 500 Hz
- PNP switching output with NC function
- Cable connection, 3-wire, 2 m length
- IP68 and IP69K rated for protection against dust and water
- Resistant against coolant lubricants and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant with high durability
- Stainless steel V2A housing and plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Mobile machines in harsh environments
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh environments reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMB30-20NPOVU2S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and harsh environment applications.
