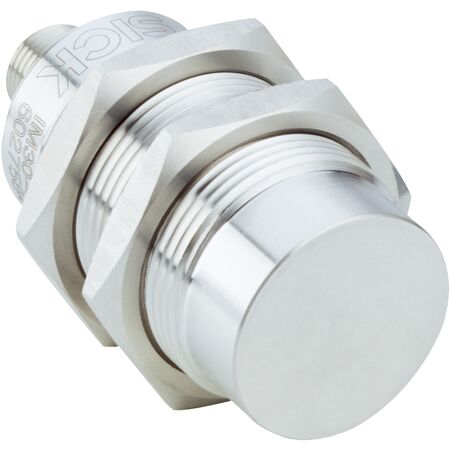

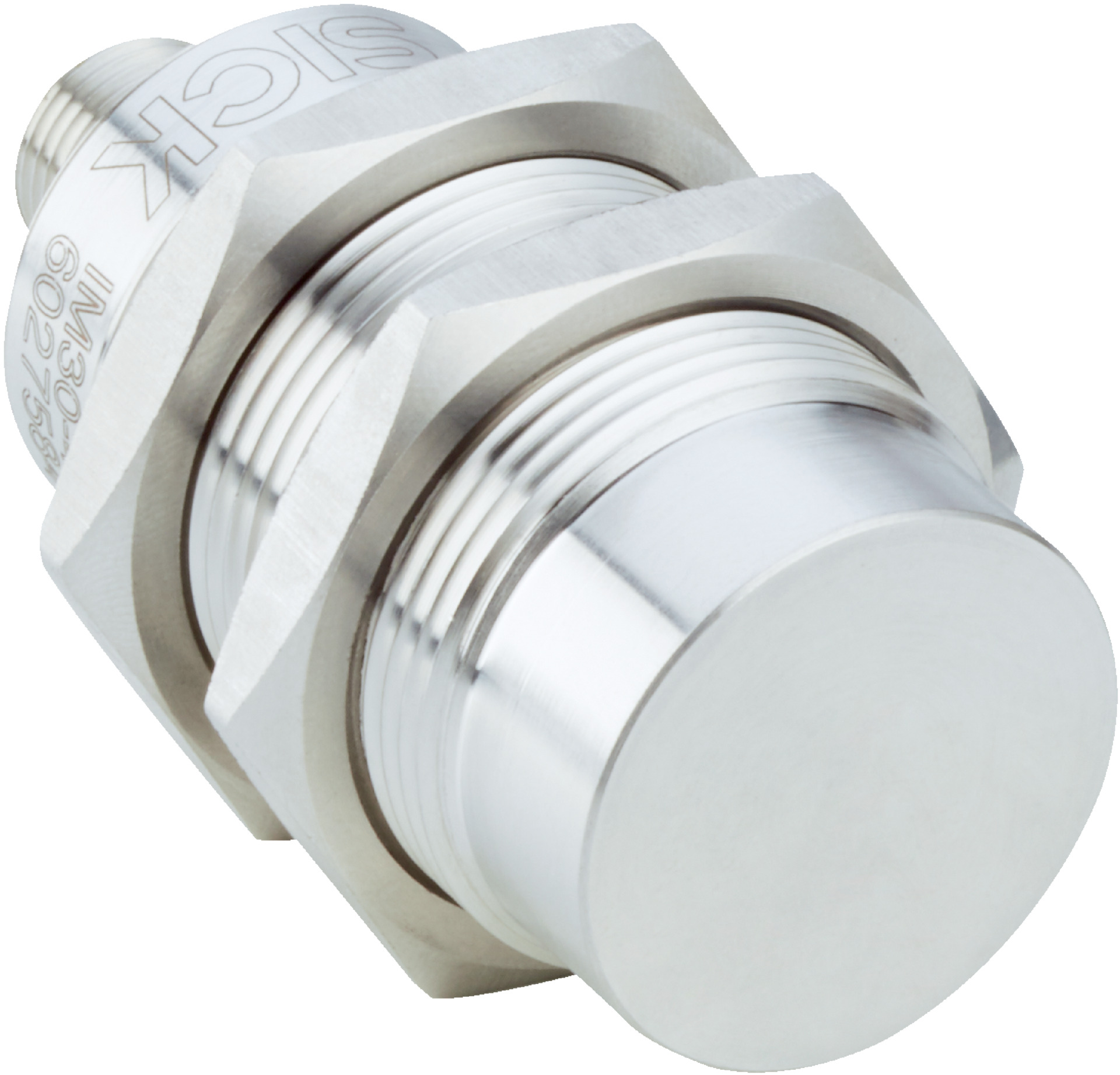

Inductive Proximity Sensor M30 | 40mm Sensing Range | IP68 & IP69K Rated | Stainless Steel | by SICK
The Inductive Proximity Sensor M30 is designed for robust sensing in hygienic and washdown zones, featuring a 40mm sensing range and IP68/IP69K rated enclosure. Ideal for industrial automation, this non-flush sensor ensures reliable performance even in difficult conditions, with a durable stainless steel housing that resists cleaning agents and minimizes contamination risks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 40 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant according to EN 60947-5-2
- Continuous current: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 30 g, 11 ms; vibration resistance: 10-55 Hz, 1 mm
- Operating temperature range: -25 °C to +85 °C
- Housing and sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- Thread length: 32 mm
- Tightening torque max: ≤ 150 Nm
- Dimensions (H x L x W): 63.5mm x 63.5mm x 30mm
- Weight: 0.2 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Sensing range of 40 mm with safe sensing range of 32.4 mm
- Non-flush installation type
- Switching frequency of 90 Hz
- NPN normally open switching output with DC 3-wire electrical wiring
- IP68 and IP69K rated enclosure for high protection
- Sensing face made of stainless steel V4A resistant to cleaning agents
- Visual adjustment indicator for easy setup
- Includes mounting nut and stainless steel washers with locking teeth
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper mounting torque and electrical connections in compliance with safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring non-flush inductive sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to cleaning agents supports hygienic environments minimizing contamination risks
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK IM30-40NNS-NC1 inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
