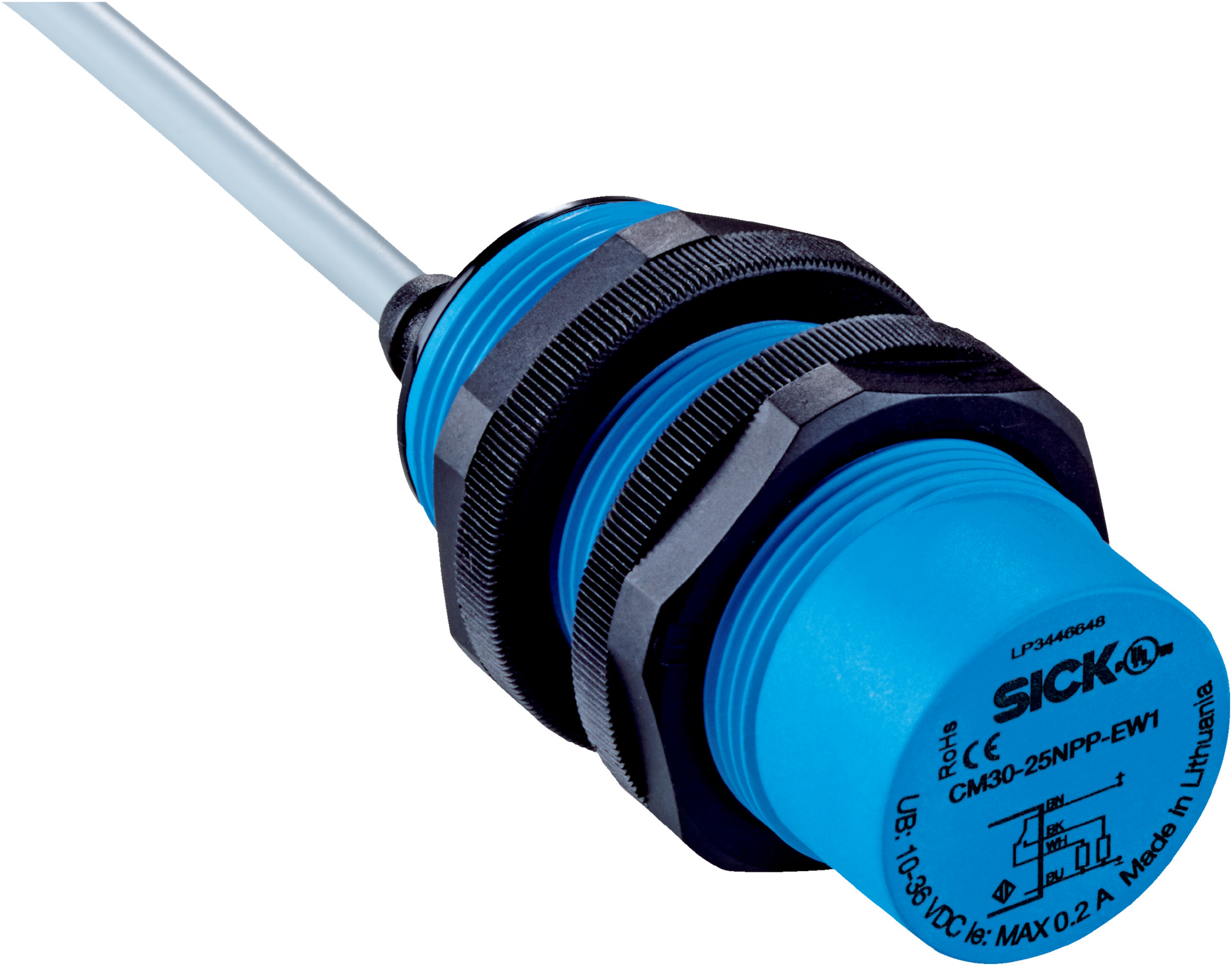

Inductive Proximity Sensor M30 | 4 mm to 25 mm Sensing Range | IP67 Rated | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a sensing range from 4 mm to 25 mm and an IP67 enclosure rating for dust and water protection. With a non-flush installation type and adjustable sensitivity via an 11-turn potentiometer, this sensor is perfect for machine safety and control systems, ensuring optimal performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M30 x 1.5 thread
- Sensing range Sn: 4 mm to 25 mm
- Safe sensing range Sa: 18 mm
- Installation type: Non-flush
- Switching frequency: 10 Hz
- Connection type: Cable, 2-wire, 2 m
- Output function: NC or NO
- Electrical wiring: AC 2-wire
- Adjustment: Sensitivity via 11-turn potentiometer
- Enclosure rating: IP67 (EN 60529)
- Supply voltage: 20 V AC to 250 V AC
- Ripple: ≤ 10%
- Voltage drop: ≤ 10 V DC
- Current consumption: 10 mA
- Time delay before availability: ≤ 100 ms
- Hysteresis: 4% to 20%
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 500 mA
- Cable material: PVC
- Conductor size: 0.5 mm²
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +80 °C
- Housing material: Plastic, PBT
- Housing length: 75.6 mm
- Thread length: 50 mm
- Tightening torque max: ≤ 7.5 Nm
- Dimensions (H x L x W): 75mm x 75.6mm x 30mm
- Weight: 0.1 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Sensing range from 4 mm to 25 mm with safe sensing range of 18 mm
- Non-flush installation type
- Switching frequency of 10 Hz
- Cable connection, 2-wire, 2 m length
- Output function configurable as NC or NO
- Electrical wiring: AC 2-wire
- Sensitivity adjustable via 11-turn potentiometer
- Enclosure rating IP67 for dust and water protection
- Includes mounting nuts and screwdriver for adjustment
- Supply voltage range 20 V AC to 250 V AC
- Low current consumption of 10 mA
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Operating temperature range from -25 °C to +80 °C
- Housing made of durable plastic PBT
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
- Non-contact detection in harsh environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CM30-25NAP-KW1 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
