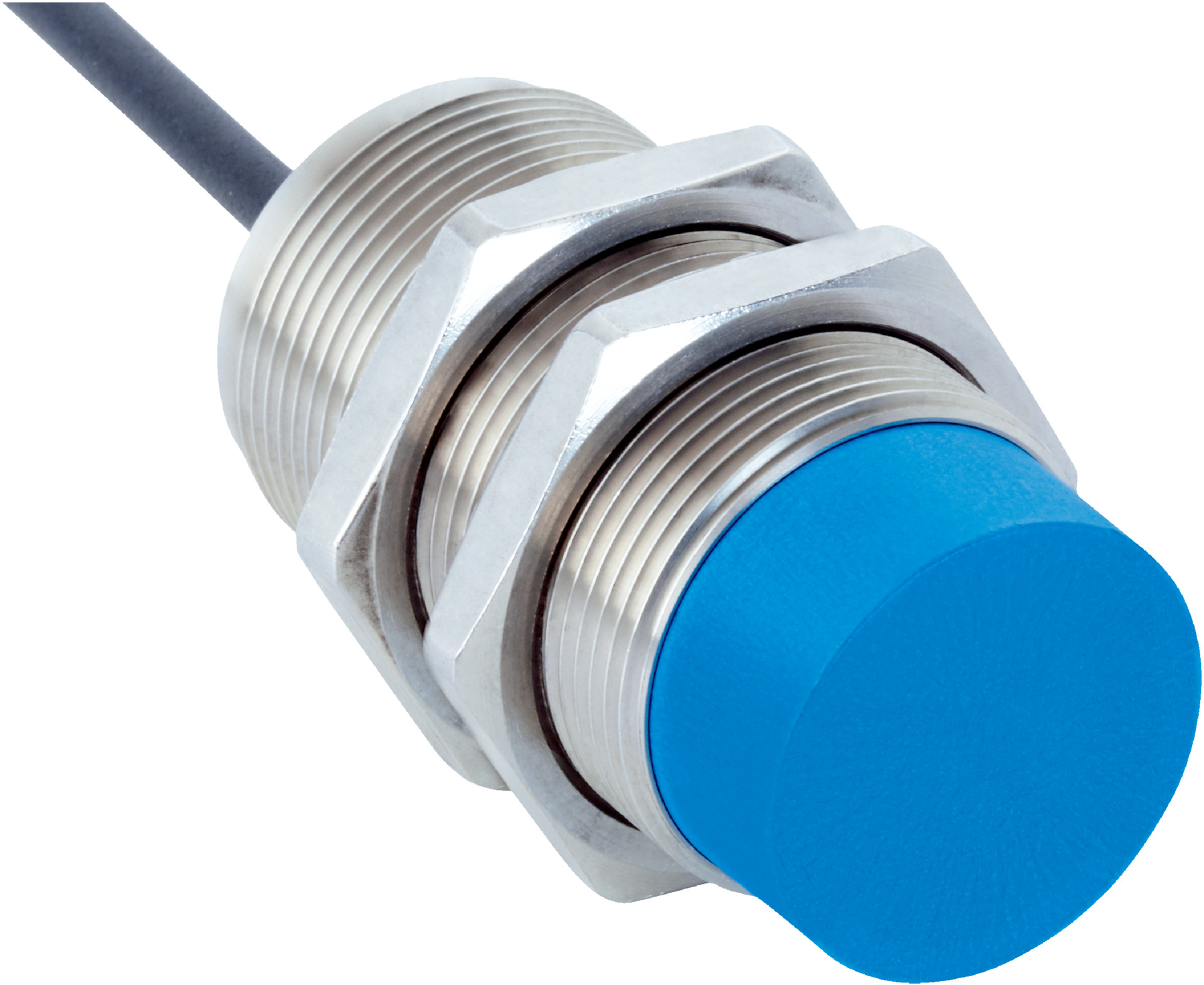

Inductive Proximity Sensor M30 | 50mm Sensing Range | IP68 Rated | PNP Output | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a 50mm sensing range and IP68 rated enclosure for harsh environments. With a PNP output and non-flush installation, it’s perfect for applications involving coolants and lubricants, ensuring durability and efficiency in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching frequency: 10 Hz
- Sensing range (Sn): 50 mm
- Safe sensing range (Sa): 40.5 mm
- Electrical wiring: DC 3-wire
- Output function: Normally closed (NC)
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 150 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 50 mA
- Cable material: PUR, diameter 4.5 mm
- Protection class: III
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Housing length: 60.2 mm
- Thread length: 43.7 mm
- Tightening torque max: ≤ 70 Nm
- Enclosure rating: IP68
- Dimensions (H x L x W): 60mm x 60mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with nickel-plated brass material
- M30 x 1.5 thread size with 50 mm sensing range
- Non-flush installation type
- PNP switching output with NC output function
- Cable connection, 3-wire, 2 m length
- IP68 rated enclosure for harsh environments
- Quadruple sensing range and resistant against coolant lubricants
- Visual adjustment indicator with yellow and green LEDs
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit and power-up pulse protection
- Wide operating temperature range from -25 °C to +75 °C
- Service interface via IO-Link for advanced diagnostics
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Non-flush mounting sensing applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

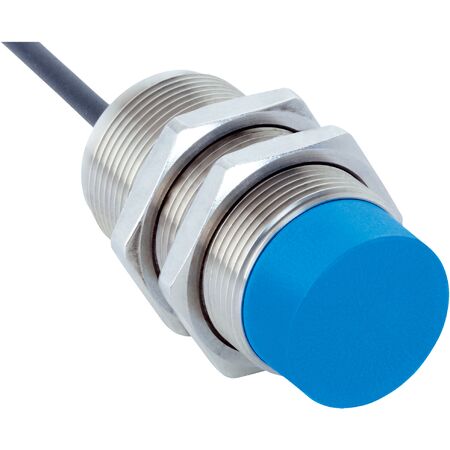

The SICK IMX30-50NPOZU2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
