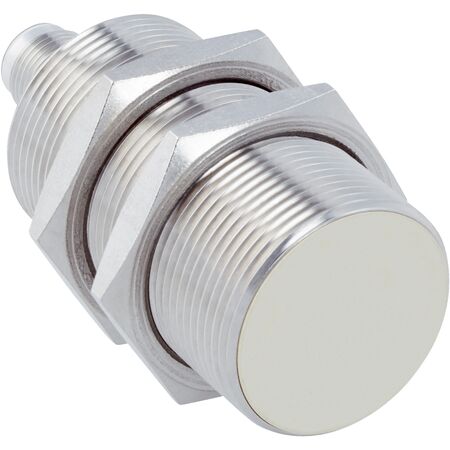

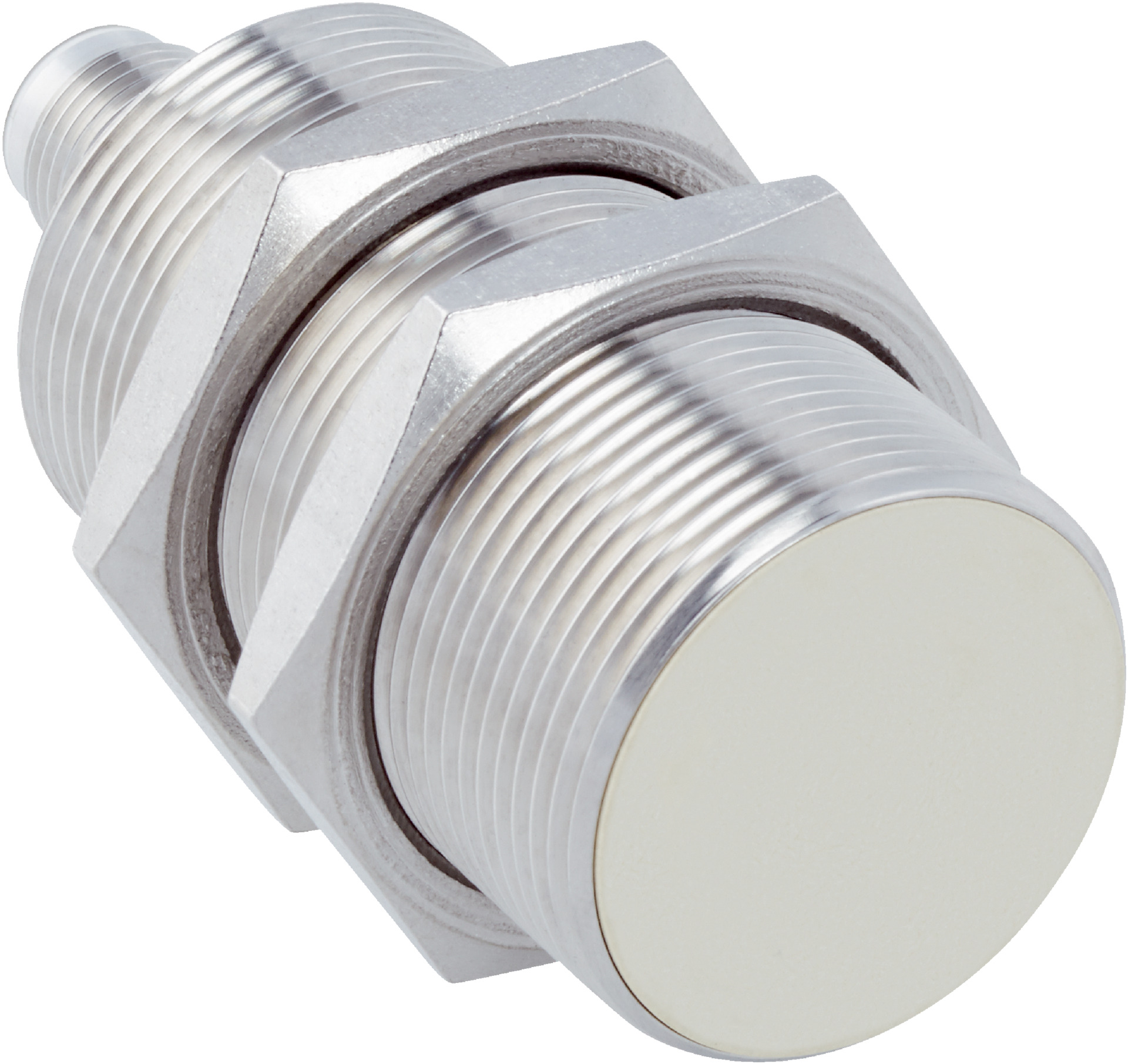

Inductive Proximity Sensor M30 | ATEX Certified | IP67 Rated | 15mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for reliable detection in challenging environments, featuring an ATEX certification for explosive atmospheres and an IP67 rated enclosure for dust and water protection. With a sensing range of 15 mm and a robust stainless steel housing, it's perfect for hygienic and washdown zones, ensuring durability and high performance in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: –20 °C to +95 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Thread length: 52 mm
- Tightening torque max: 100 Nm
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.2 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- Switching frequency of 500 Hz with PNP NO output
- Male connector M12, 4-pin connection
- IP67 rated enclosure for dust and water protection
- Resistant to cleaning agents and temperature resistant
- Visual adjustment indicator and IO-Link communication interface
- Shock and vibration resistant with high mechanical durability
- ATEX certified for explosive atmospheres (II 3G Ex ec IIC T4 Gc X, II 3D Ex tc IIIC T135°C Dc X)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting torque and compliance with ATEX installation standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions
- Explosive areas requiring ATEX certified sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh cleaning agents reducing environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMF30-15BPSNC0SX01 inductive sensor is available for immediate purchase, ideal for industrial automation in hygienic, washdown, and explosive environments.
