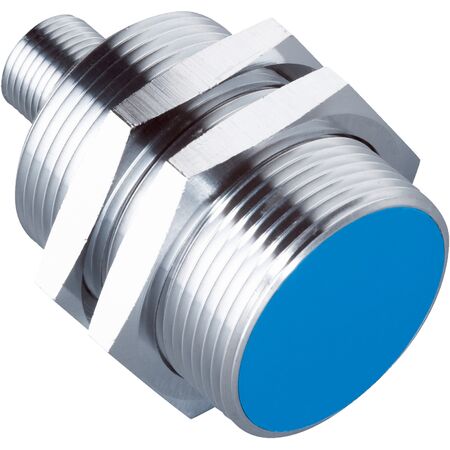

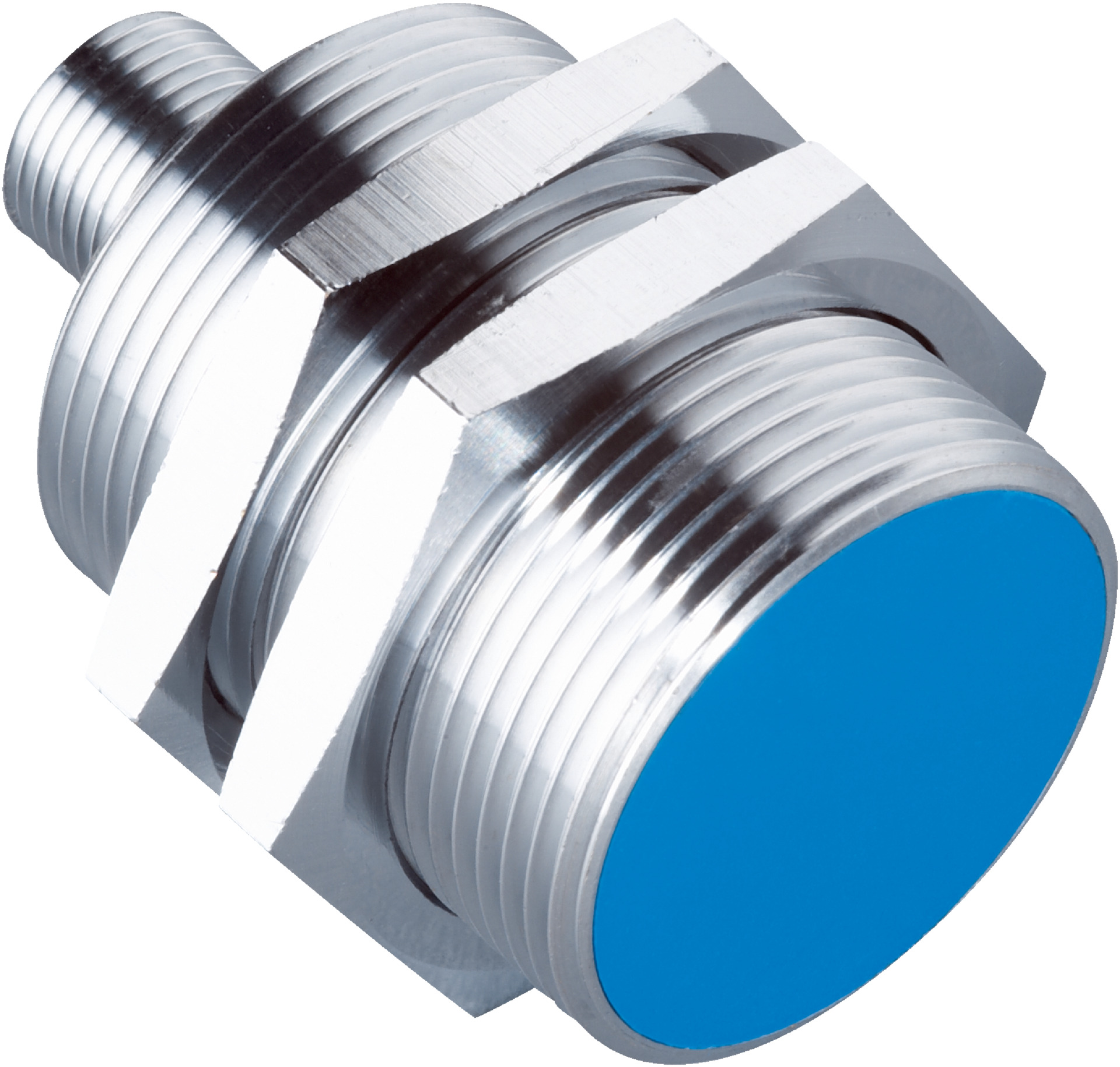

Inductive Proximity Sensor M30 | IP67 Rated | 0-20mm Sensing Range | High Repeatability | by SICK
The Inductive Proximity Sensor M30 is designed for precision in industrial automation, featuring a sensing range of 0 mm to 20 mm and high repeatability of ±0.05 mm. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for metal detection and machine safety applications. Built with a durable brass housing, this sensor is perfect for robotics and assembly line monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 15 V DC to 30 V DC
- Ripple: ≤ 20%
- Time delay before availability: ≤ 50 ms
- Temperature drift of sensing range: ≤ 10%
- No load current: ≤ 12 mA
- Load current: ± 10 mA
- Max load resistance: ≤ 400 Ω at 15 V, ≤ 1000 Ω at 30 V
- Output voltage: 0 V to 10 V
- Output current: 4 mA to 20 mA depending on distance
- Bandwidth: 200 Hz
- Repeatability: ± 0.05 mm
- Resolution: ≤ 5 µm
- Enclosure rating: IP67
- Operating temperature: -25 °C to +70 °C
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic, PTB
- Thread size: M30 x 1.5
- Housing length: 48.5 mm
- Thread length: 27 mm
- Dimensions (H x L x W): 48.5mm x 48.5mm x 30mm
- Weight: 0.15 kg
Key Features
- Metric housing with M30 x 1.5 thread size
- Sensing range of 0 mm to 20 mm
- Quasi-flush installation type
- Analog output with triple sensing range
- High repeatability with ±0.05 mm accuracy
- IP67 rated enclosure for dust and water protection
- Short-circuit protection included
- Operating temperature range from -25 °C to +70 °C
- Housing made of brass, chromium-plated
- Connection via male M12, 4-pin connector
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for position sensing
- Metal detection in manufacturing processes
- Machine safety and control systems
- Robotics and assembly line monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable brass housing reduces need for frequent replacements
- Energy-efficient operation with low current consumption
- IP67 rating ensures long service life in harsh environments, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IMA30-20BE1ZC0K inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
