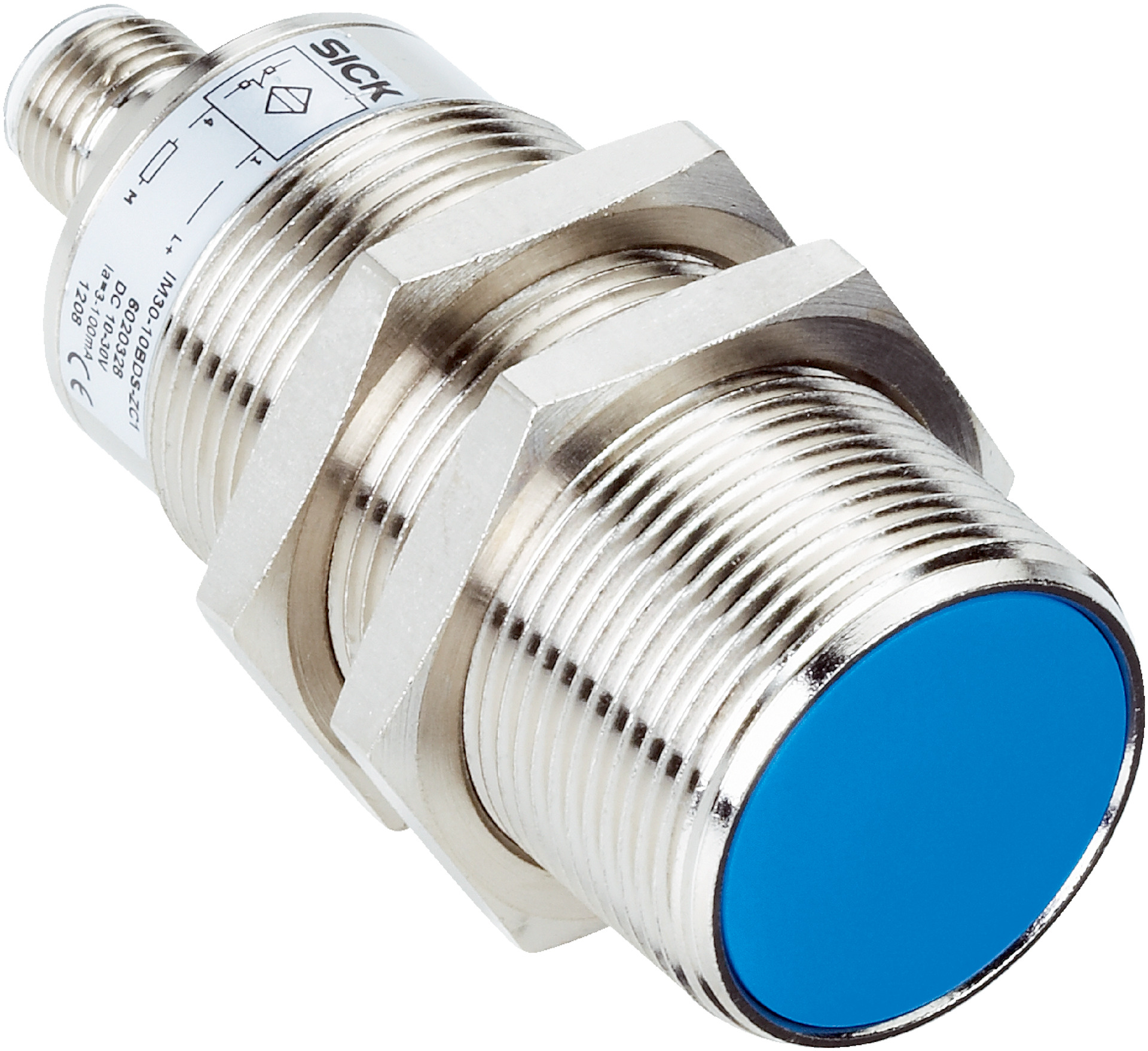

Inductive Proximity Sensor M30 | IP67 Rated | 10mm Sensing Range | 50Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation. With an IP67 rating for dust and water protection, it operates effectively in harsh environments. This sensor features a 10mm sensing range and a switching frequency of up to 50Hz, making it ideal for machine safety and control systems, ensuring precise position sensing in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Voltage drop: ≤ 6.5 V AC, ≤ 6 V DC
- Time delay before availability: ≤ 8 ms
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 10%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 350 mA (varies by voltage)
- Off-state current: ≤ 2.5 mA (AC 250 V), ≤ 1.3 mA (AC 110 V), ≤ 0.8 mA (DC 24 V)
- Minimum load current: ≥ 5 mA
- Short-time withstand current: 2.2 A
- Cable material: PUR/PVC, conductor size 0.5 mm²
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Housing length: 81 mm, Thread length: 59 mm
- Tightening torque max: ≤ 50 Nm
- Rated impulse withstand voltage: 4 kV
- Protection class: II
- Usage category: AC-140, DC-13
- Contamination rating: 3
- Dimensions (H x L x W): 81mm x 81mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M30 x 1.5 with flush installation type
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Switching frequency up to 50 Hz
- Cable connection type, 2-wire, 2 m length
- Output function normally open (NO)
- Electrical wiring supports AC/DC 2-wire
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Wide ambient operating temperature range from -25 °C to +70 °C
- Protection class II with rated insulation voltage of 250 V AC
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper sensor function.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

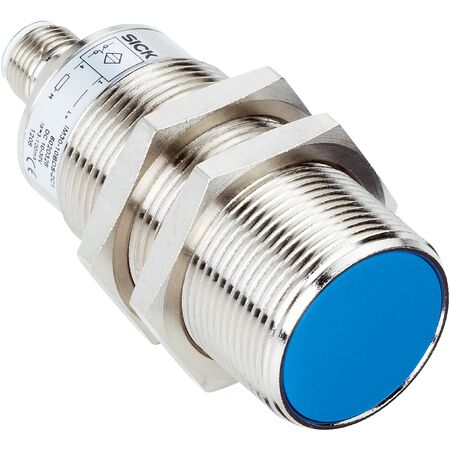

The SICK IM30-10BUS-ZU0 inductive proximity sensor is available for immediate purchase, ideal for industrial automation and machine safety applications.
