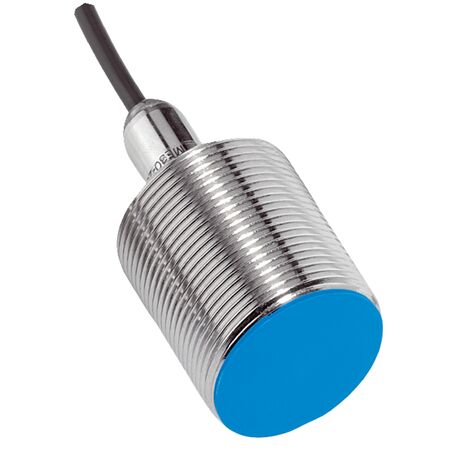

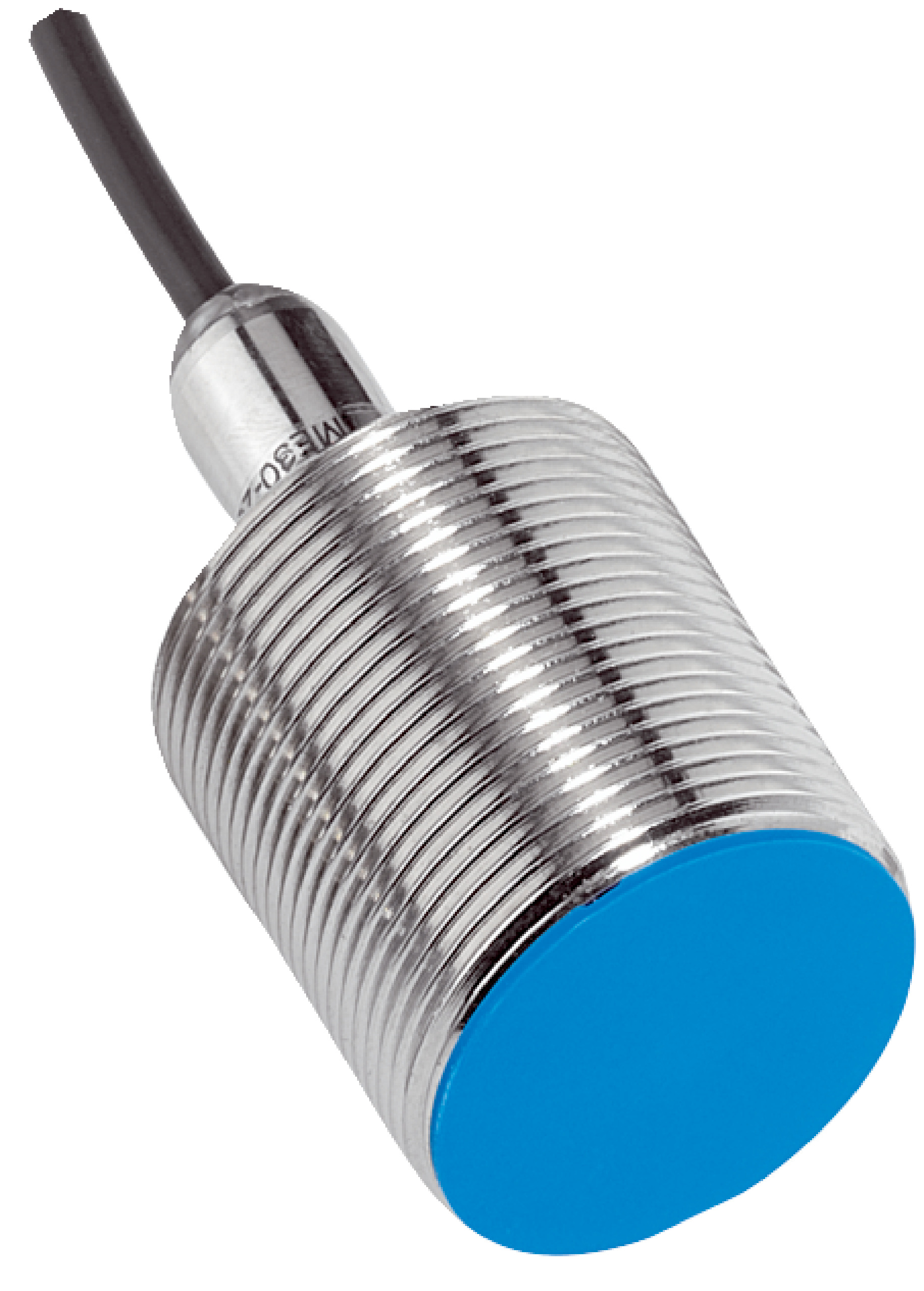

Inductive Proximity Sensor M30 | IP67 Rated | 10 mm Sensing Range | PNP Output | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a 10 mm sensing range and IP67 enclosure for dust and water protection. With a robust brass housing and a switching frequency of 500 Hz, it's perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring safety and efficiency in factory environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M30 | IP67 Rated | 10 mm Sensing Range | PNP Output | by SICK
Brand: SICK
SKU: 1041003
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Proximity Sensor, SICK Proximity Switch, Metal Detection Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Cable material: PVC, diameter 3.9 mm
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Housing length: 51 mm, Thread length: 35 mm
- Tightening torque max: ≤ 100 Nm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 51mm x 51mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Switching frequency of 500 Hz
- PNP switching output with NC output function
- Cable connection type, 3-wire, 2 m length
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistance up to 30 g
- Operating temperature range from -25 °C to +75 °C
- Housing made of brass, nickel-plated with plastic sensing face
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME30-10BPOZW2K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
