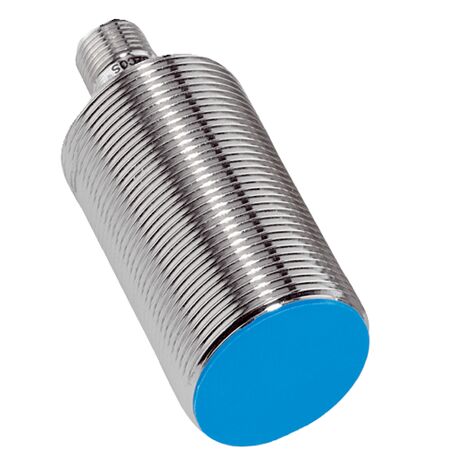

Inductive Proximity Sensor M30 | IP67 Rated | 15mm Sensing Range | 500Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a 15mm sensing range and a high switching frequency of 500Hz. With an IP67 rated enclosure, it ensures protection against dust and water, making it ideal for harsh environments. This sensor is perfect for position sensing in manufacturing lines and safety control systems, providing durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M30 | IP67 Rated | 15mm Sensing Range | 500Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1041030
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Proximity Sensor, SICK IME30 Sensor, Flush Mount Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, normally open
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Ambient operating temperature: -25°C to +75°C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread size: M30 x 1.5
- Housing length: 71 mm
- Thread length: 54 mm
- Tightening torque max: ≤ 100 Nm
- Dimensions (H x L x W): 71mm x 71mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Flush installation type with M30 x 1.5 thread size
- Sensing range of 15 mm with safe sensing range of 12.15 mm
- High switching frequency of 500 Hz
- PNP switching output with normally open function
- Connection via male M12 4-pin connector
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature from -25°C to +75°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and mounting to ensure proper flush installation and electrical connection.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IME30-15BPSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and control applications requiring reliable metal object detection.
