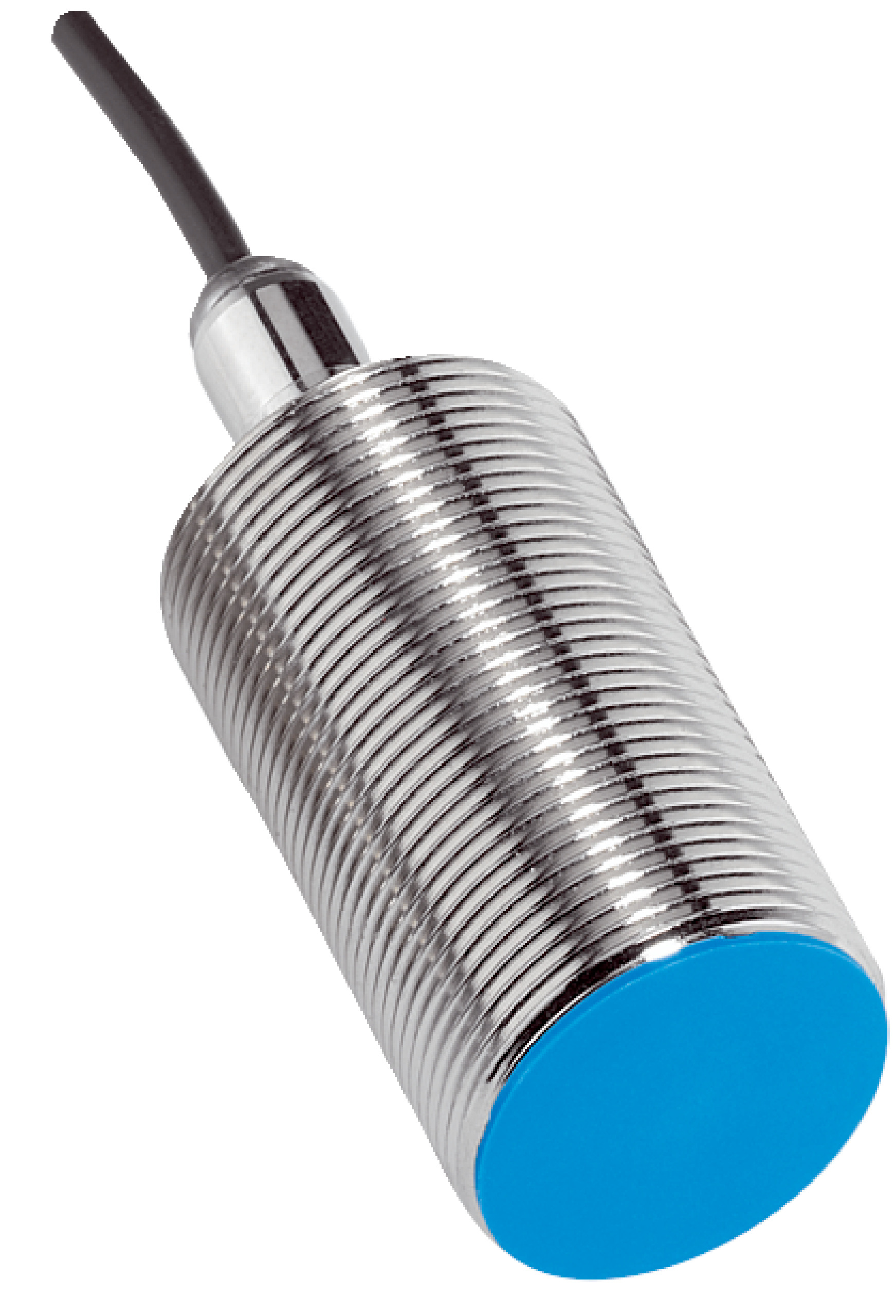

Inductive Proximity Sensor M30 | IP67 Rated | 22mm Sensing Range | PNP Output | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a 22mm sensing range and IP67 enclosure for dust and water protection. With a PNP normally open output and a switching frequency of 20 Hz, this sensor is perfect for position sensing in manufacturing lines and harsh environments, ensuring durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching output: PNP, normally open
- Switching frequency: 20 Hz
- Cable: 3-wire, 2 m, PVC, 0.25 mm² conductor size
- Enclosure rating: IP67
- Operating temperature: -25 °C to +75 °C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Sensing range of 22 mm with safe sensing range of 17.8 mm
- Quasi-flush installation type
- Switching frequency of 20 Hz with PNP normally open output
- Cable connection, 3-wire, 2 m length
- IP67 rated enclosure for dust and water protection
- Triple sensing range feature
- Mounting nut included, brass nickel-plated
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Use in harsh environments requiring IP67 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Long service life minimizes environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

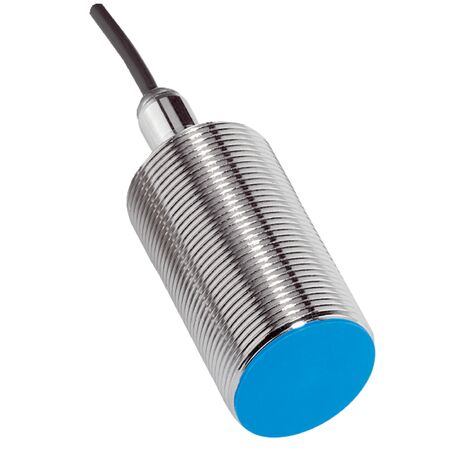

The SICK IME30-22BPSZW2SS42 inductive sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
