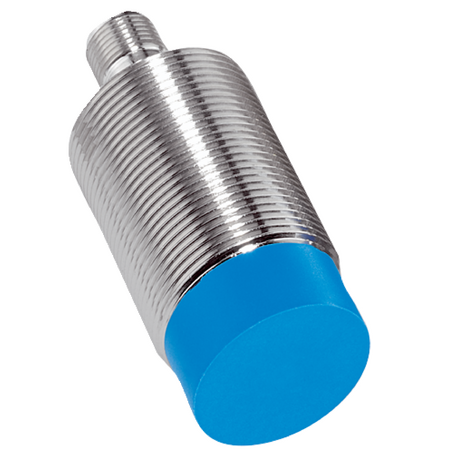

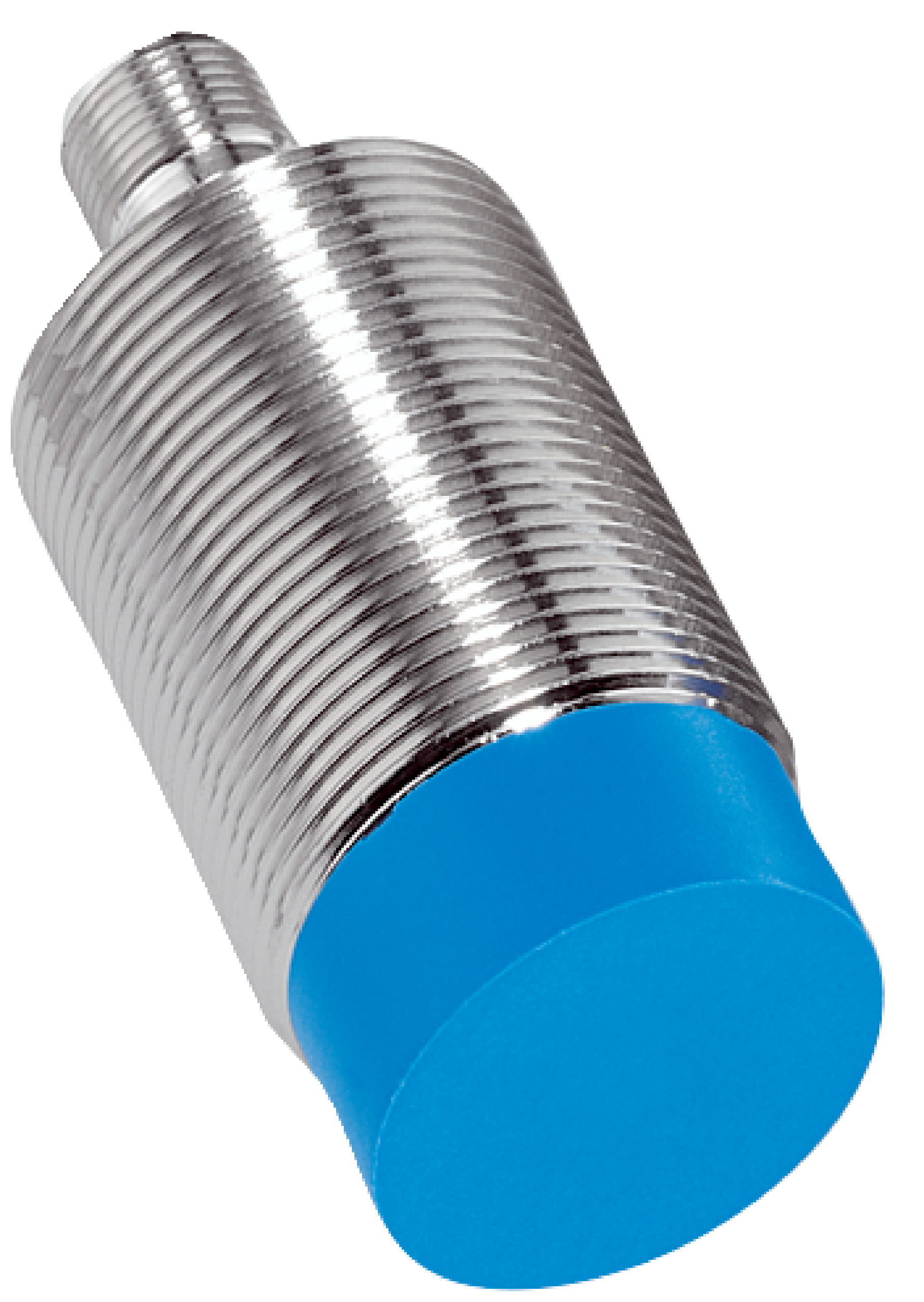

Inductive Proximity Sensor M30 | IP67 Rated | PNP NO Output | 38mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a 38mm sensing range and IP67 rated enclosure for dust and water protection. With a PNP normally open output and a switching frequency of 100 Hz, this sensor is perfect for manufacturing process control and position sensing in harsh environments, ensuring durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Proximity Sensor, SICK Proximity Sensor 38mm
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching output: PNP, Normally Open (NO)
- Switching frequency: 100 Hz
- Connection type: Male connector M12, 4-pin
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Hysteresis: 1% to 15%
- Reproducibility: ≤ 5%
- Ambient operating temperature: -25°C to +75°C
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Short-circuit and power-up pulse protection included
- Dimensions (H x L x W): 30mm x 71mm x 30mm
- Weight: 0.2 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M30 x 1.5 with 38 mm sensing range
- Non-flush installation type with triple sensing range
- Switching frequency of 100 Hz with PNP NO output
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant up to 30 g
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Position sensing in machinery
- Non-contact detection in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Non-contact sensing reduces mechanical wear and tear, extending equipment life
- Energy-efficient operation with low current consumption
- Durable IP67 housing reduces waste by increasing product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IME30-38NPSZC0S Inductive Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
