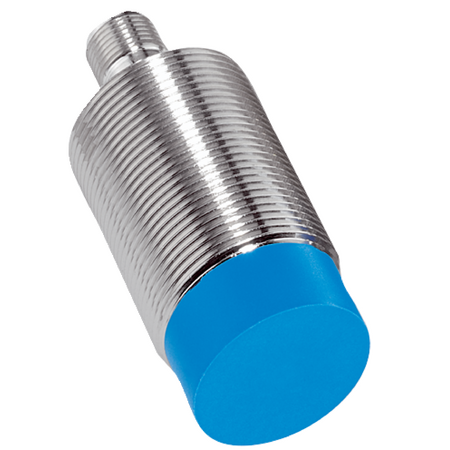

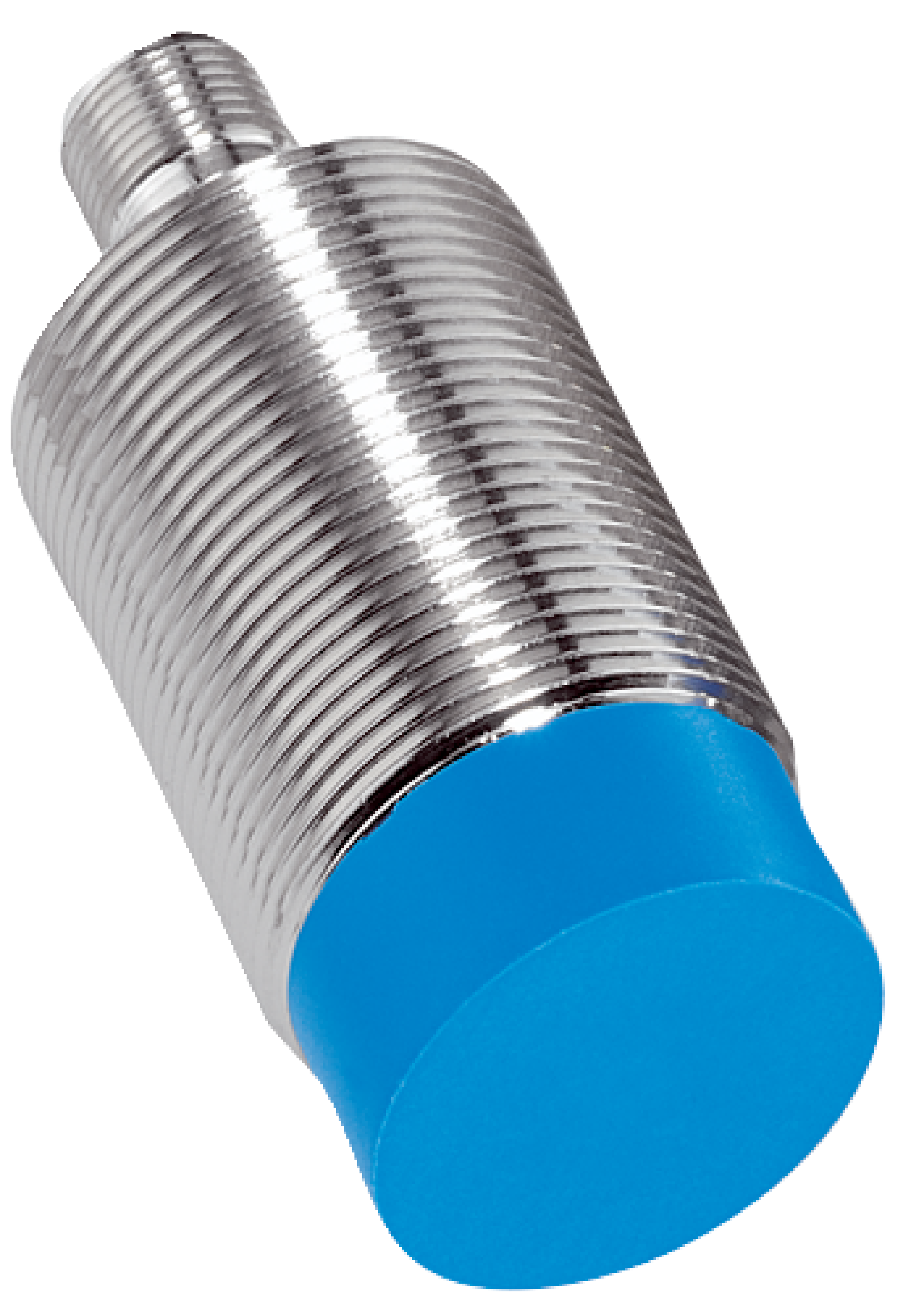

Inductive Proximity Sensor M30 | IP67 Rated | PNP Normally Open | 15mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a robust IP67 enclosure for dust and water protection. With a 15mm sensing range and PNP normally open output, it's perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring high performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Sensor, SICK Proximity Switch, M30 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Thread length: 41 mm
- Tightening torque max: ≤ 100 Nm
- UL File No.: NRKH.E181493
- Dimensions (H x L x W): 71mm x 71mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with brass, nickel-plated material
- Thread size M30 x 1.5 with 15 mm sensing range
- Non-flush installation type
- Switching frequency up to 500 Hz
- PNP switching output with normally open function
- Connection via male M12 4-pin connector
- High enclosure rating IP67 for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant up to 30 g
- Wide ambient operating temperature range from -25°C to +75°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Non-flush mounting environments requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IME30-15NPSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
