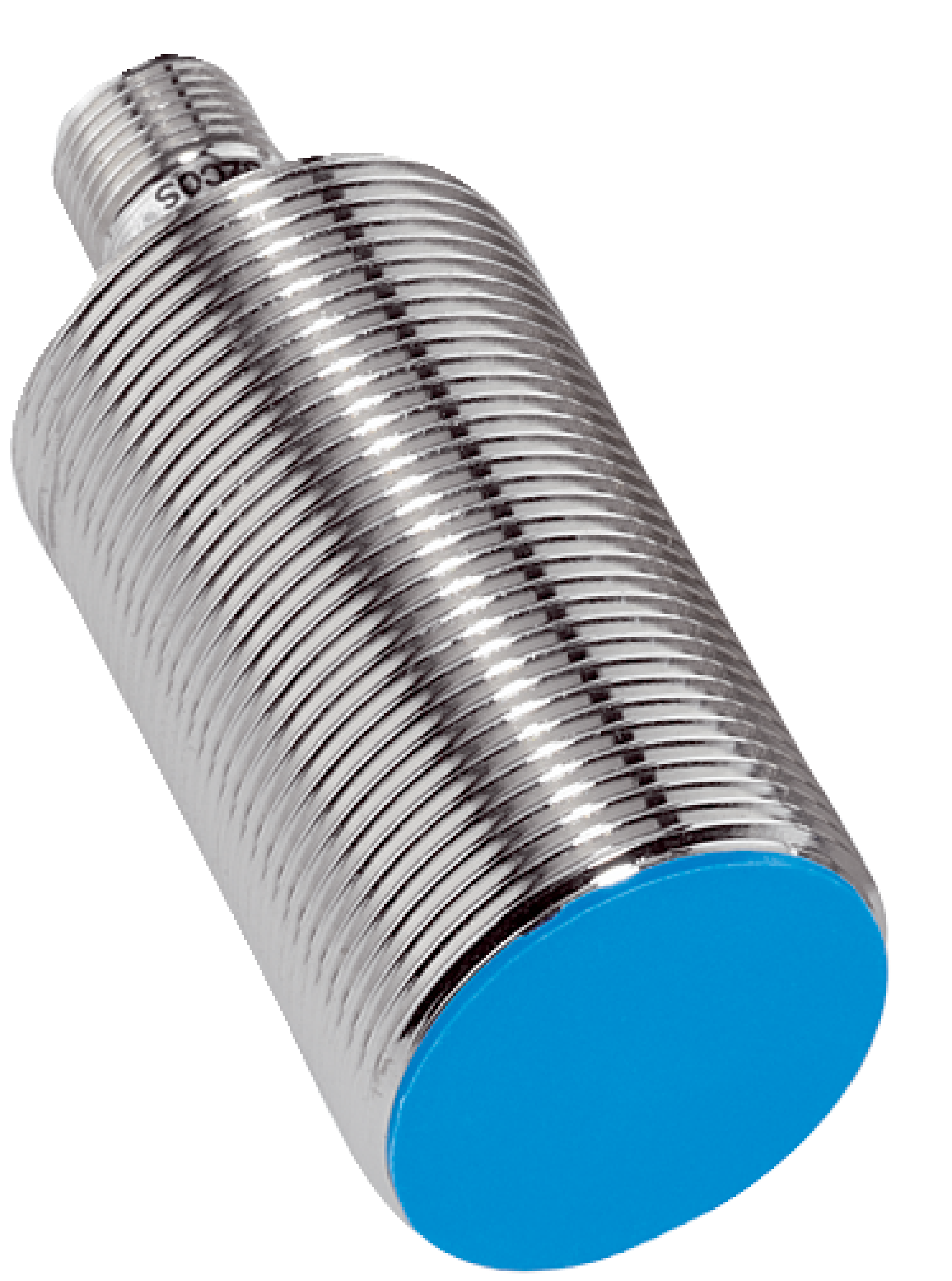

Inductive Proximity Sensor M30 | IP67 Rated | PNP Output | 10 mm Sensing Range | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring a sensing range of 10 mm and an IP67 enclosure rating for dust and water protection. With a PNP switching output and robust brass housing, it's perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring durability and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Proximity Sensor, SICK Proximity Switch, M30 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 125 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Switching output: PNP, normally open
- Connection type: Male M12, 4-pin connector
- Enclosure rating: IP67
- Shock and vibration resistance: 30 g, 11 ms, 10 Hz to 55 Hz
- Operating temperature range: -25 °C to +75 °C
- Tightening torque max: ≤ 100 Nm
- Dimensions (H x L x W): 71mm x 71mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design with M30 x 1.5 thread size
- Flush installation type
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Switching frequency up to 500 Hz
- PNP switching output with NO function
- Connection via male M12 4-pin connector
- Enclosure rating IP67 for dust and water protection
- Shock and vibration resistant (30 g, 11 ms, 10 Hz to 55 Hz)
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable brass housing reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

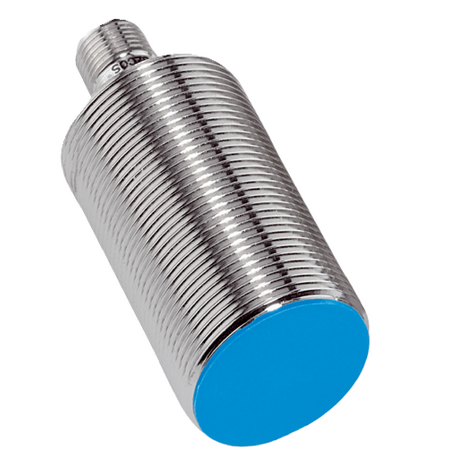

The SICK IME30-10BPSZC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
