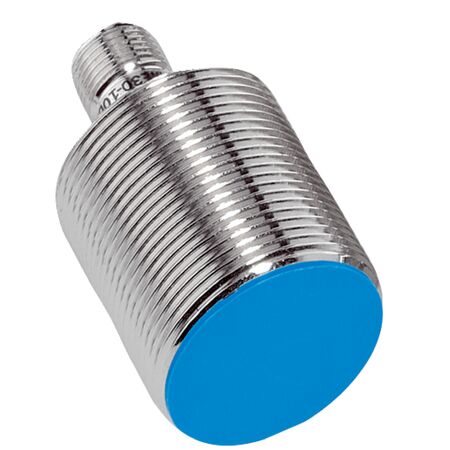

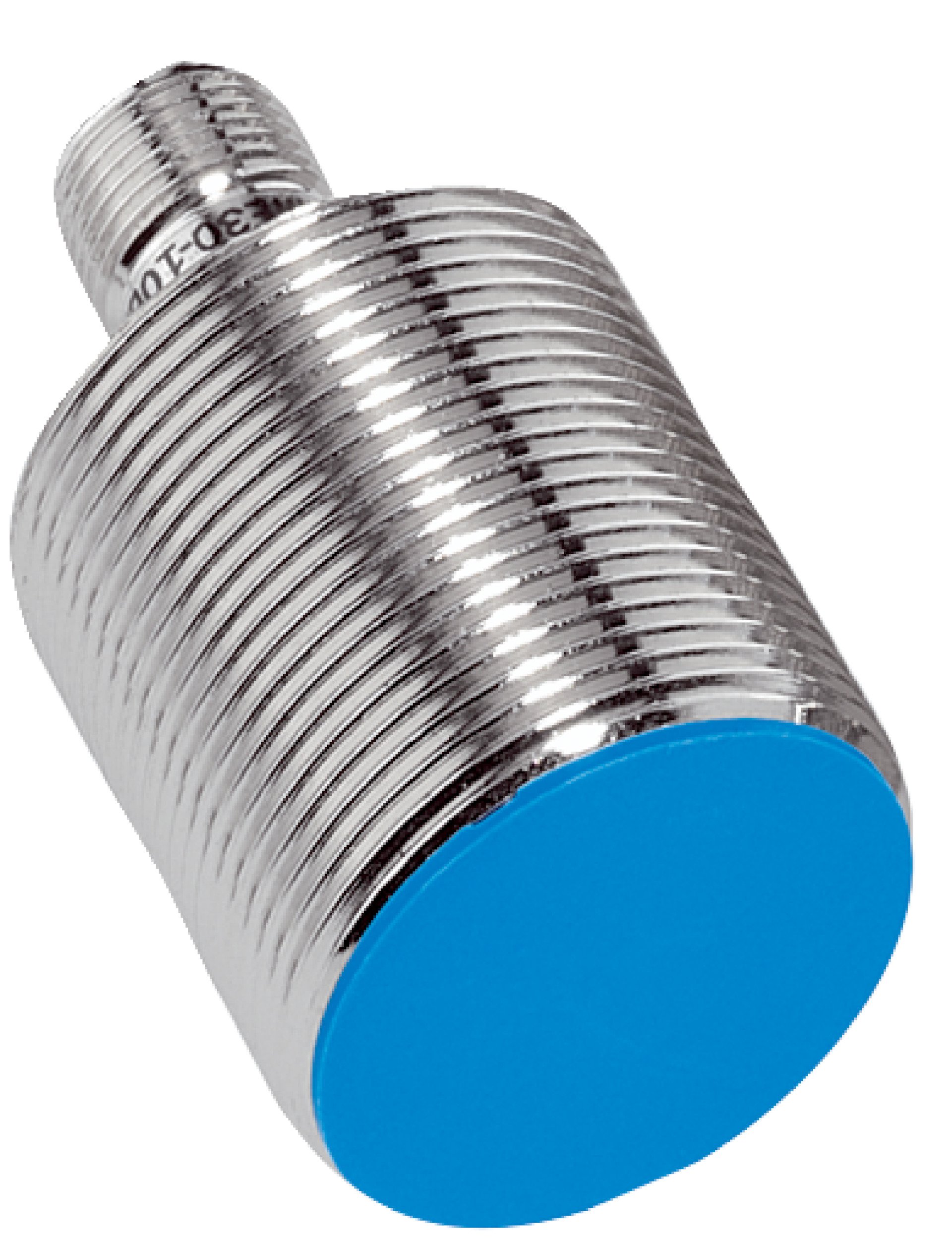

Inductive Proximity Sensor M30 | IP67 Rated | PNP Output | 500 Hz Switching Frequency | by SICK
The Inductive Proximity Sensor M30 is designed for reliable object detection in industrial automation, featuring an IP67 enclosure rating and a PNP normally open output. With a robust brass housing and a sensing range of 10 mm, this sensor is perfect for position sensing in manufacturing lines and metal detection in machinery, ensuring durability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Inductive Proximity Sensor M30 | IP67 Rated | PNP Output | 500 Hz Switching Frequency | by SICK
Brand: SICK
SKU: 1040997
Alternatively Known As: Inductive Proximity Sensor M30, IME30 Sensor, SICK Proximity Switch, M30 Inductive Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Switching output: PNP, normally open
- Switching frequency: 500 Hz
- Continuous current: ≤ 200 mA
- No load current: ≤ 10 mA
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- Connection type: Male connector M12, 4-pin
- Housing material: Brass, nickel-plated
- Sensing face material: Plastic PA 66
- Enclosure rating: IP67
- Shock resistance: 30 g, 11 ms
- Operating temperature: -25 °C to +75 °C
- Dimensions (H x L x W): 52mm x 52mm x 30mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M30 x 1.5 thread size
- Flush installation type with IP67 enclosure rating
- Sensing range of 10 mm with safe sensing range of 8.1 mm
- Switching frequency up to 500 Hz with PNP normally open output
- Male connector M12, 4-pin connection type
- Robust brass nickel-plated housing and plastic sensing face
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Wide operating temperature range from -25 °C to +75 °C
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and mounting to ensure proper function and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Metal detection in machinery
- Safety and control systems in factories
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation with low current consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IME30-10BPSZC0K inductive proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
