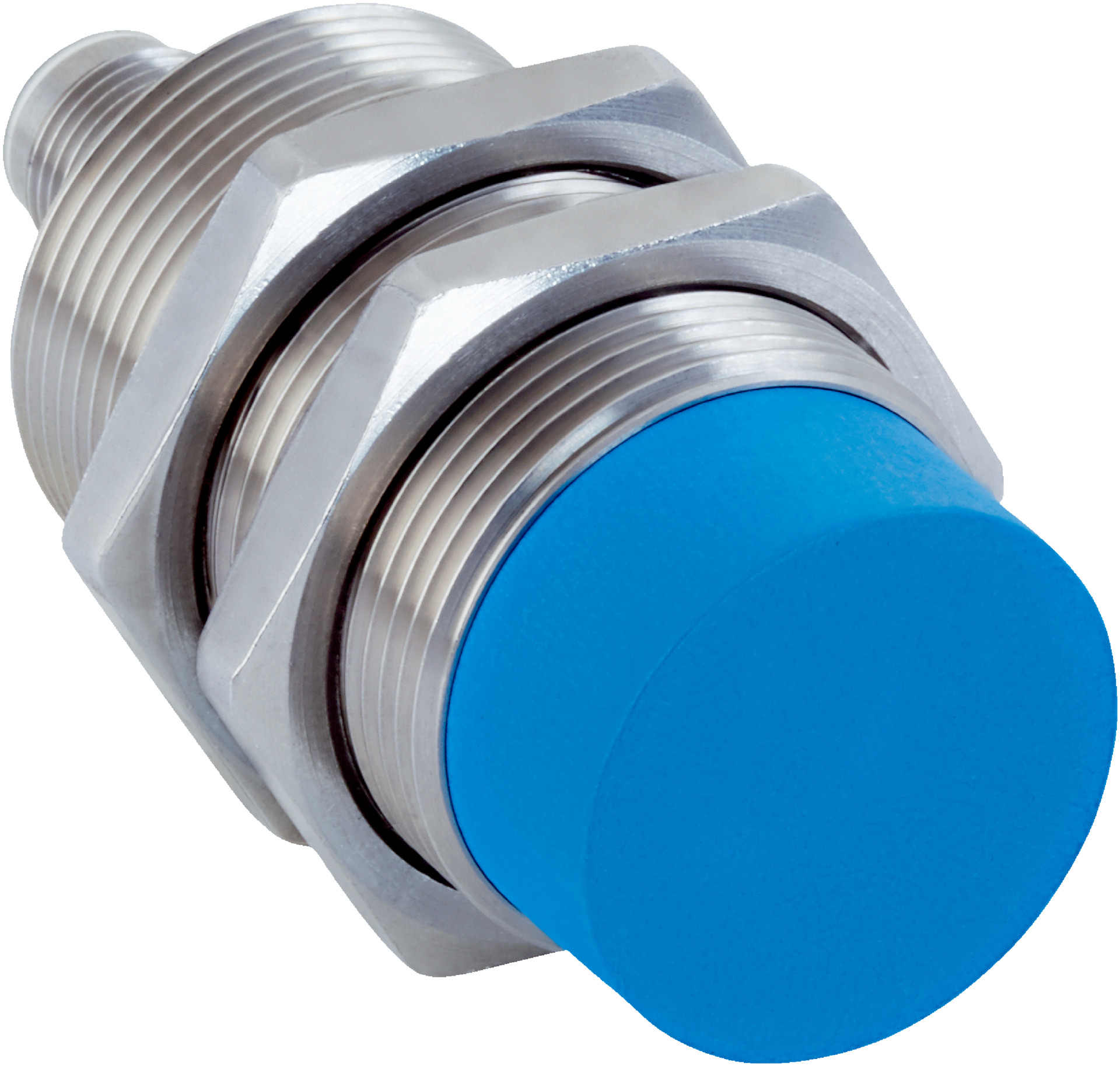

Inductive Proximity Sensor M30 | IP68 & IP69K Rated | 20mm Sensing Range | NPN Output | by SICK
The Inductive Proximity Sensor M30 is designed for robust sensing in challenging environments, featuring a 20mm sensing range and IP68/IP69K enclosure ratings. Ideal for mobile machines and hygienic zones, this sensor operates within a wide temperature range of -40 °C to +100 °C, ensuring reliability in demanding applications. With a stainless steel housing and high EMC immunity, it’s built to last and reduce maintenance needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2.5 V
- Switching frequency: 500 Hz
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Operating temperature: -40 °C to +100 °C
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic (LCP)
- Shock resistance: 100 g, 11 ms shocks
- Vibration resistance: 25 g peak (10 Hz to 2000 Hz)
- Short-circuit and power-up pulse protection included
- EMC compliance with multiple international standards
- Dimensions (H x L x W): 70mm x 70mm x 30mm
- Weight: 0.15 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency up to 500 Hz
- NPN switching output with NO function
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Resistant to cleaning agents and temperature resistant
- Shock and vibration resistant with high EMC immunity
- Stainless steel V4A housing and plastic sensing face
- Wide operating temperature range from -40 °C to +100 °C
- Includes mounting nuts (brass, nickel-plated)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Mobile machines
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to cleaning agents reduces need for replacement
- Energy efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

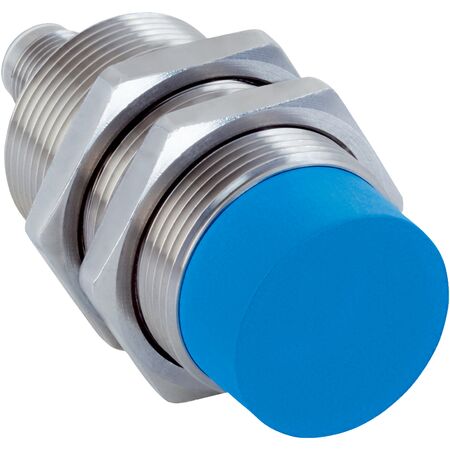

The SICK IMS30-20NNSNC0S inductive proximity sensor is available for immediate purchase, ideal for industrial automation, mobile machinery, and hygienic zone applications.
