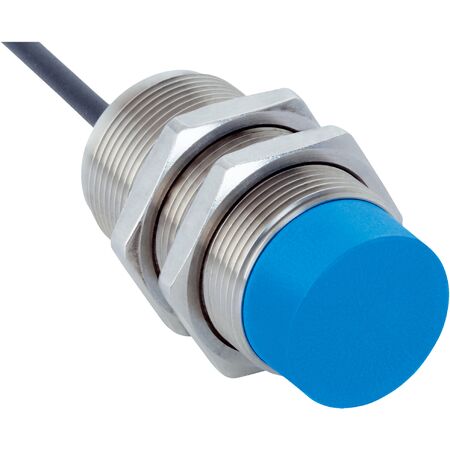

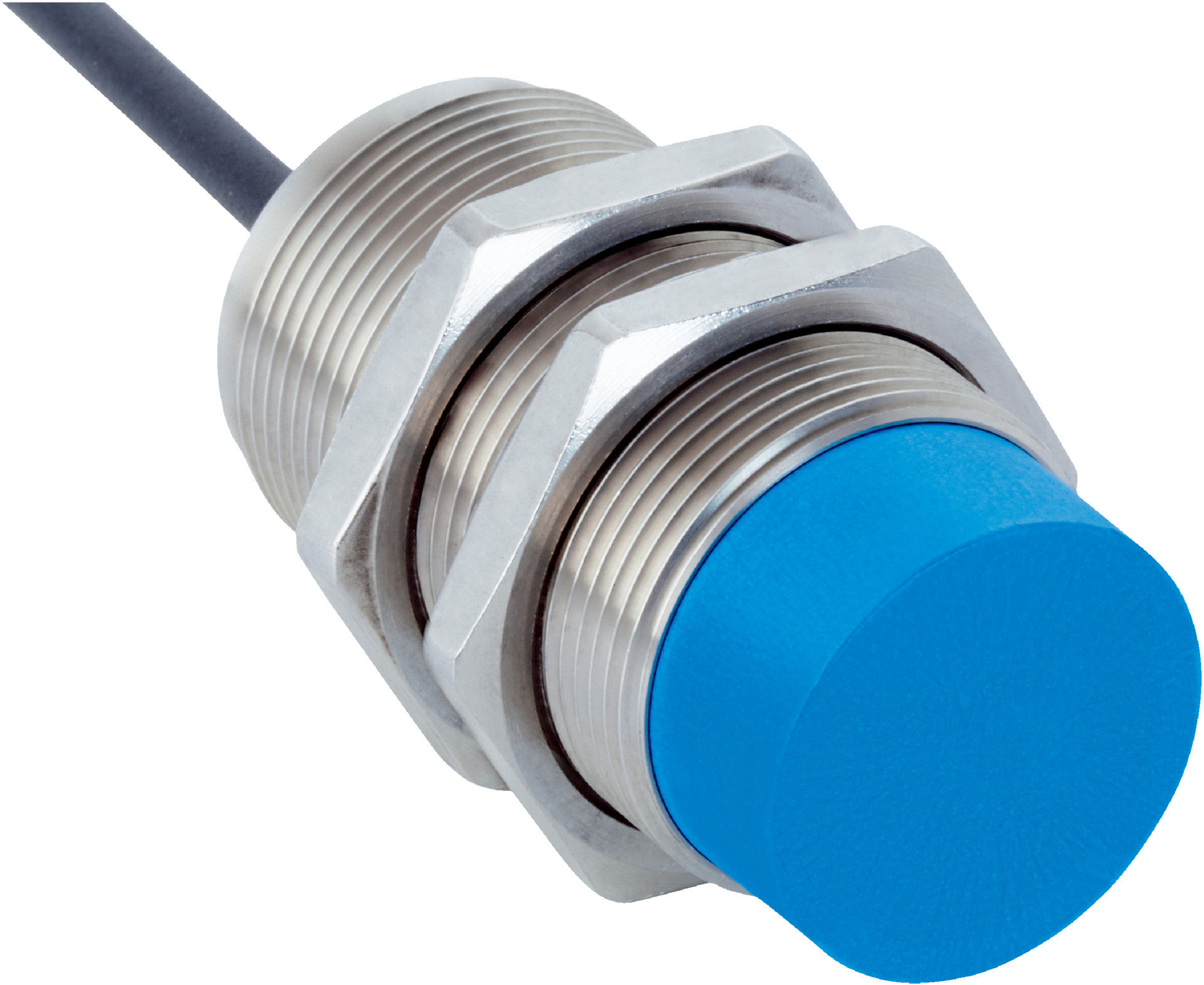

Inductive Proximity Sensor M30 | IP68 & IP69K Rated | 20mm Sensing Range | PNP Output | by SICK
The Inductive Proximity Sensor M30 is designed for robust sensing in harsh environments, featuring a 20mm sensing range and IP68/IP69K enclosure rating. Ideal for mobile machines and applications with coolants, this sensor offers a PNP normally open output and a high switching frequency of 500 Hz, ensuring reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 7.2 V DC to 60 V DC
- Switching output: PNP, Normally Open (NO)
- Switching frequency: 500 Hz
- Sensing range (Sn): 20 mm
- Safe sensing range (Sa): 16.2 mm
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68 and IP69K
- Cable: PUR, 3-wire, 2 m length, 0.5 mm² conductor size, 5 mm diameter
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Operating temperature range: -40 °C to +100 °C
- Shock resistance: 100 g, 11 ms shocks, 3 shocks per axis
- Vibration resistance: 25 g peak, 10 Hz to 2000 Hz
- Short-circuit and power-up pulse protection included
- Voltage drop: ≤ 2.5 V
- No load current: ≤ 10 mA
- Continuous current: ≤ 200 mA
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- MTTFD: 1,196 years
- Dimensions (H x L x W): 61mm x 61mm x 30mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M30 x 1.5 thread size
- Non-flush installation type
- Sensing range of 20 mm with safe sensing range of 16.2 mm
- Switching frequency of 500 Hz with PNP NO output
- Cable connection, 3-wire, 2 m length
- Enclosure rating IP68 and IP69K for high protection
- Resistant against coolant lubricants and temperature resistant
- Shock and vibration resistant with high EMC immunity
- Includes mounting nuts, brass, nickel-plated (2x)
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct wiring and mounting for optimal sensor performance and safety.
Applications
- Mobile machines
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High resistance to harsh environments minimizes environmental contamination risks
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IMS30-20NPSVU2S inductive proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
